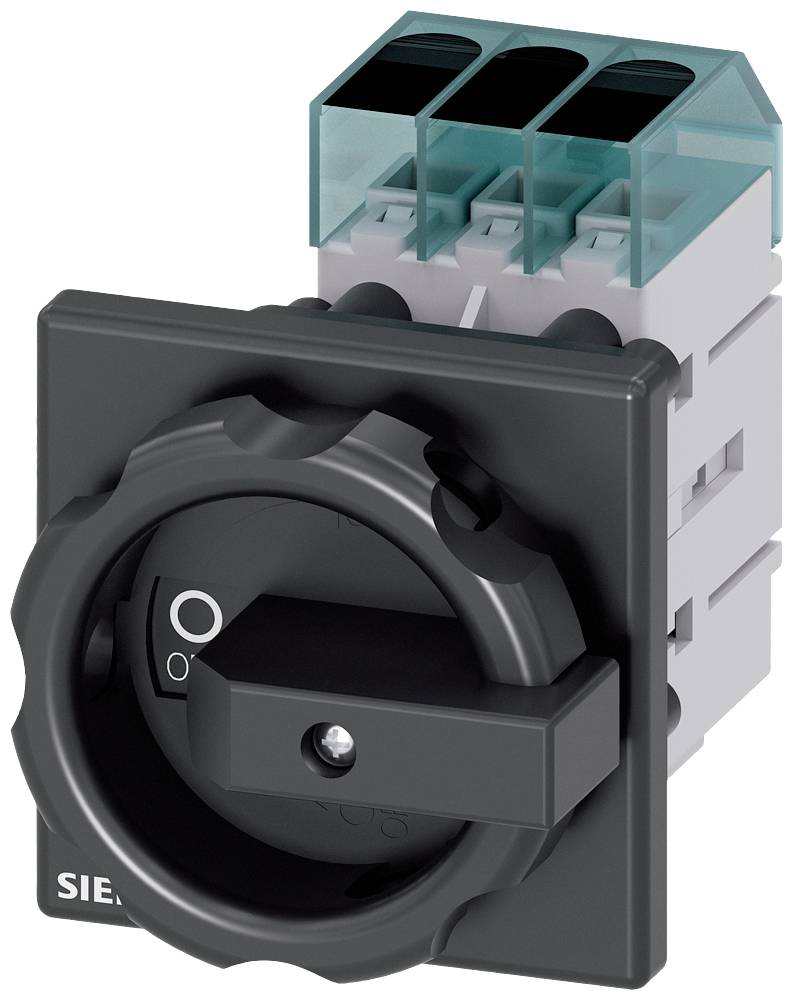

Circuit breakers Black 16 mm² 25 A Siemens 3LD31540TK51
EAN:
Part number:
Item no:
Product type
Circuit breakers
Number of pins
3
Nominal current - rounded value
25 A
Operating voltage
690 V AC
Factory colour
Black
Technical specifications
- Number of switches: 1
- Execution of the display / for switching position display Manual mode: 1 ON - 0 OFF
- Actuator type: Short rotary handle
- Type of electrical connection / for main circuit: Frame terminal
- Design of the electrical connection / for auxiliary contacts: Frame terminals
- Handle type: Rotary drive, black
- Design of the device: Fixed installation
- Mounting type: Built-in device Fixed installation technology
- Fastening method / front mounting with central mounting: Yes
- Type of switch: Front mounted
- Operating frequency 50 -60 Hz
- Suitable for use / main switch: Yes
- Suitability for use / switch disconnectors: Yes
- Suitability for use / safety switch: Yes
- Suitability for use / maintenance/repair switch: Yes
- Electrical life (operations) / at AC-23 A / at 690 V: 6000
- Mechanical life (operations) / typical: 100000
- Insulation voltage 690 V.
- Net weight 200 g
- Product equipment / locking: Yes
- Product extension / auxiliary switch: Yes
- Protection class IP / front side: IP65
- Ambient temperature during operation: -25 °C - +55 °C.
- Maximum power loss: 3.3 W.
- Pollution level 3
- Number of U-locks / maximum: 3
- Operating power / at AC-23 A / at 400 V: 9.5 kW
- Operating power / at AC-3 / at 690 V: 7.5 kW
- Shackle thickness / of the U-locks / maximum: 8 mm
- Continuous current / upstream fuse / according to UL: 50 A.
- Continuous current / of auxiliary contact: 10 A.
- Product function / lockable in OFF position: Yes
- Switching frequency / maximum [1/h]: 50
- Power loss per conductor / typical: 1.1 W.
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Factory colour
Black
- Cross section
16 mm²
- Number of pins
3

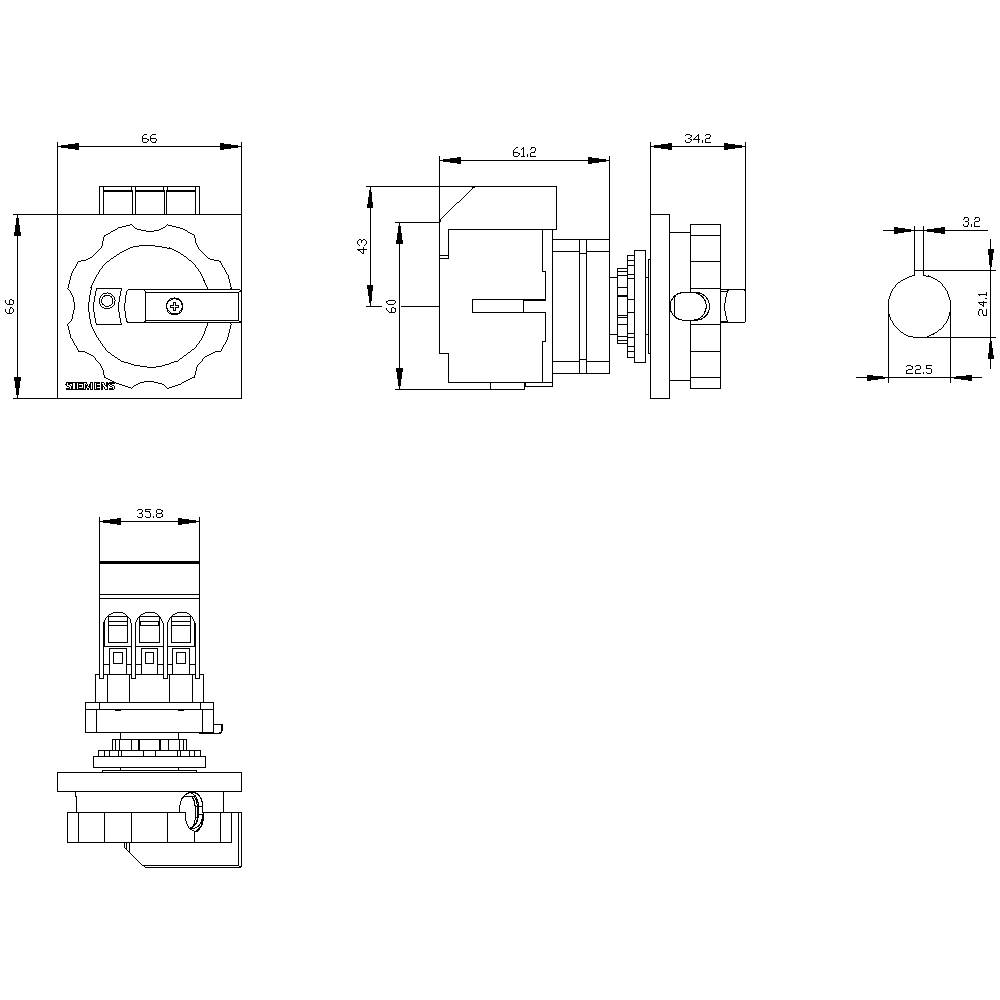

- Dim
(Ø x H) 22.5 mm x 60 mm
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Type
Main switch
- Width
36 mm
- Height
60 mm
- Length
66 mm
- Depth
114 mm
- (Ø)
22.5 mm
8 kW
0
0
25 A
3
IP65
0
1
TRUE
FALSE
Frame clamp
FALSE
Short thumb-grip
TRUE
TRUE
TRUE
10 kW
0.5 kA
Black
FALSE
FALSE
TRUE
FALSE
FALSE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
25 A
FALSE
20
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2263623 Circuit breakers Black 16 mm² 25 A Siemens 3LD31540TK51
Description
3LD3 switch disconnectors, IU 25 A 3-pole main switch Rated operating power for AC-23 A at 400V 9.0kW Front mounting Basic switch with central hole mounting 22.5mm Rotary drive black 66x66 mm Main and EMERGENCY-OFF switch SENTRON 3LD3 for safe switching off of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in control or control cabinets, especially for small machines such as saws, compressors, pumps, concrete mixers, drills, Milling or woodworking machines.
Modular design, quick and easy fitting of auxiliary switches, N-PE terminal or 4. Pin Optimum mains separation from 16 A to 63 A by lockable the rotary drive. Can be used versatile thanks to international approvals. A mechanical size for five electrical sizes.
The 3LD main and emergency-OFF switches are available in a wide range of versions for front mounting, mounting plate, DIN rail or distributor installation, optionally with direct or door coupling rotary drive. With 3LD2, variants for DC applications are also available.
3LD main and emergency-OFF switch - consistent safety for users and systems.
