Name: Circuit breakers Black 3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25041TP51
Brand: Siemens
SKU: 1744165
Availability: InStock

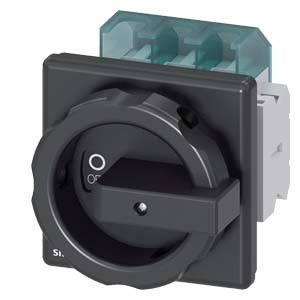

A black rotary switch with two positions 'O' and 'I' on the front, mounted on a grey and transparent housing.

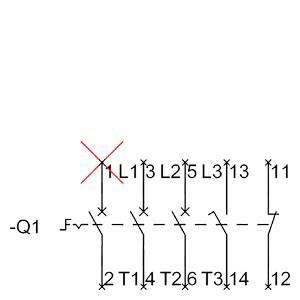

Circuit diagram with six switches, one of which is marked. Line symbolises electrical current flow. Relevant labels: Q1, L1, T1, L2, T2, L3, T3.

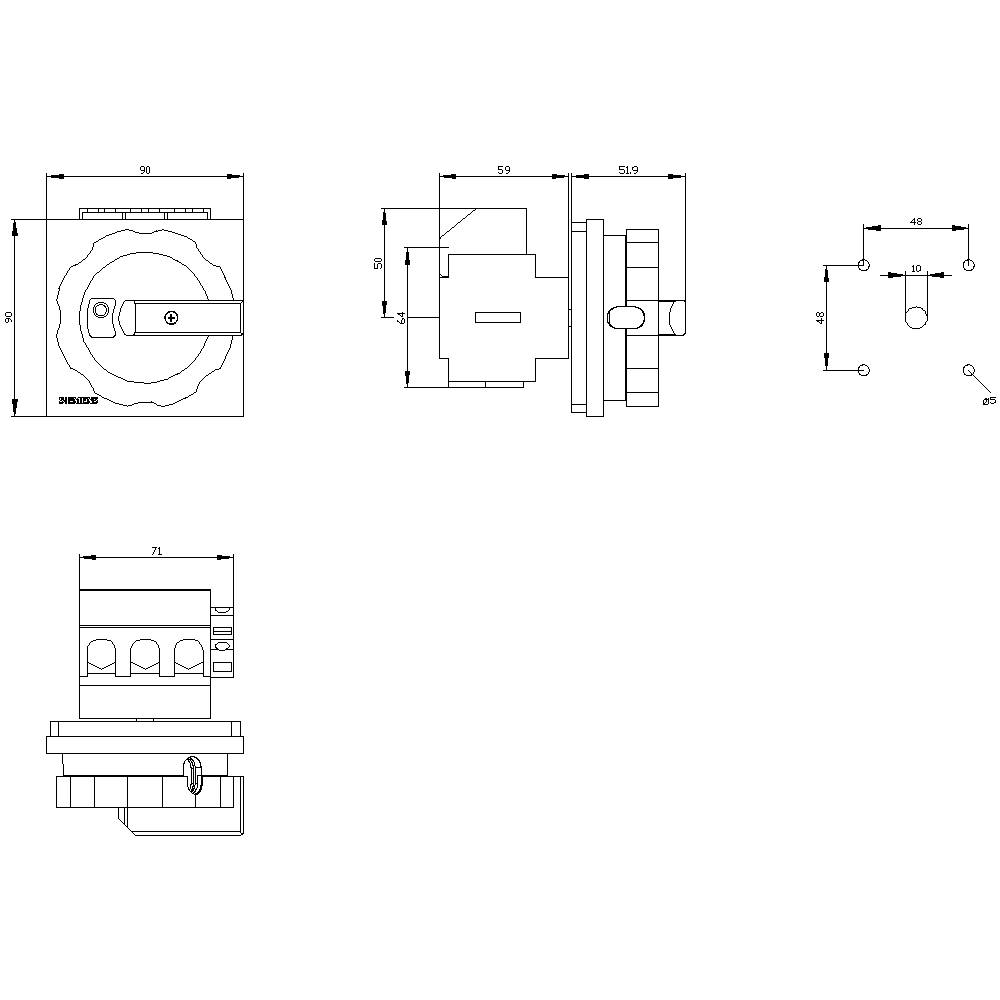

Technical drawing of a switch from top, front, and side views. Dimensions and details are highlighted. Side view shows mounting.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

63 A

Contact type

1 maker

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 3
Power loss: 13.5 W

Product type: Circuit breakers

Contact type: 1 maker
1 breaker

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 35 mm²

Number of pins: 3

Dim: (W x H x D) 90 x 106 x 110.5 mm

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Step Switches

Width: 90 mm

Height: 106 mm

Depth: 110.5 mm

: 19 kW

: 1

: 1

: 63 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 22 kW

: 1.26 kA

: Black

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 63 A

: FALSE

: 43

: Other

UKCA: not relevant
