Name: Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25140TK51
Brand: Siemens
SKU: 1699108
Availability: BackOrder

Black rotary switch mounted on a cage terminal block, connected by a long rod; electromechanical component.

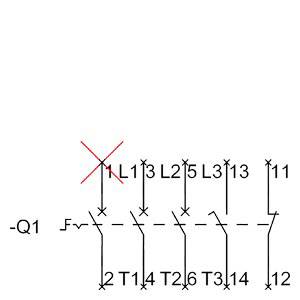

Electrical circuit diagram with an open contact '1L', connected to other closed contacts and a line to '-Q1'.

Technical drawing of a cylinder with dimensions and cross-sectional views. Various views of a similar object are shown in the top right.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

63 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 3
Power loss: 13.5 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 35 mm²

Number of pins: 3

Dim: (W x H x D) 90 x 106 x 468.5 mm

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Step Switches

Width: 90 mm

Height: 106 mm

Depth: 468.5 mm

: 19 kW

: 0

: 0

: 63 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 22 kW

: 1.26 kA

: Black

: TRUE

: TRUE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 63 A

: FALSE

: 43

: Other

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Cross section

Nominal current - rounded value

Nominal voltage

Number of pins

3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25551TP000AE8

Item no:1744180

Dispatches on Thu 5 Nov

Conrad Electronic

35 mm²

63 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 885.00^*

Black 3-pin 16 mm² 25 A 690 V AC Siemens 3LD21300TK110AF5

Item no:1743114

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,239.00^*

Circuit breakers 3-pin 16 mm² 16 A 1 maker, 1 breaker 690 V AC Siemens 3LD30101TK05

Item no:1744386

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

16 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Circuit breakers 3-pin 16 mm² 16 A 690 V AC Siemens 3LD30100TK05

Item no:1744384

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

16 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Circuit breakers 3-pin 16 mm² 25 A 1 maker, 1 breaker 690 V AC Siemens 3LD31101TK05

Item no:1703073

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Circuit breakers 3-pin 16 mm² 25 A 690 V AC Siemens 3LD31100TK05

Item no:1699137

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Circuit breakers 3-pin 16 mm² 32 A 1 maker, 1 breaker 690 V AC Conductor type = L Siemens 3LD32101TK05

Item no:1741547

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

32 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Circuit breakers 3-pin 16 mm² 32 A 690 V AC Siemens 3LD32100TK05

Item no:1748476

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

32 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Circuit breakers 3-pin 16 mm² 40 A 1 maker, 1 breaker 690 V AC Siemens 3LD33101TK05

Item no:1741759

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

40 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Circuit breakers 3-pin 16 mm² 40 A 690 V AC Siemens 3LD33100TK05

Item no:1741757

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

40 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Documents & Downloads

Datasheet

Datasheet 1699108 Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25140TK51

User & Safety Instructions

User & Safety Instructions 1699108 Circuit breakers Black 3-pin 35 mm² 63 A 690 V AC Siemens 3LD25140TK51

Description

Contactor relay, 2 NO + 2 NC 400 V AC 50 Hz 400...440 V 60 Hz Screw terminal size S00 !!! Phased-out product !!! Successor is SIRIUS 3RH2 Preferred successor type is 3RH2122-1AR60 This 3RH1 auxiliary contact is being replaced by a device from the 3RH2 series. Simple, efficient and always up to date - SIRIUS modular system.
