Name: Circuit breakers Black 3-pin 50 mm² 125 A 690 V AC Siemens 3LD28040TK51
Brand: Siemens
SKU: 1744375
Availability: BackOrder

A black electric main switch with grey and turquoise connection parts, showing the positions 'ON' and 'OFF'.

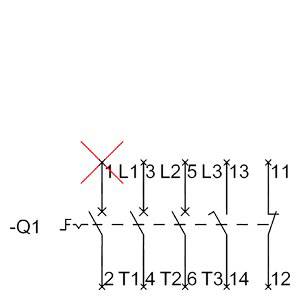

Circuit diagram of a switch with multiple contacts and one crossed out, labelled 'L'. A path leads from '-Q1' to '11'.

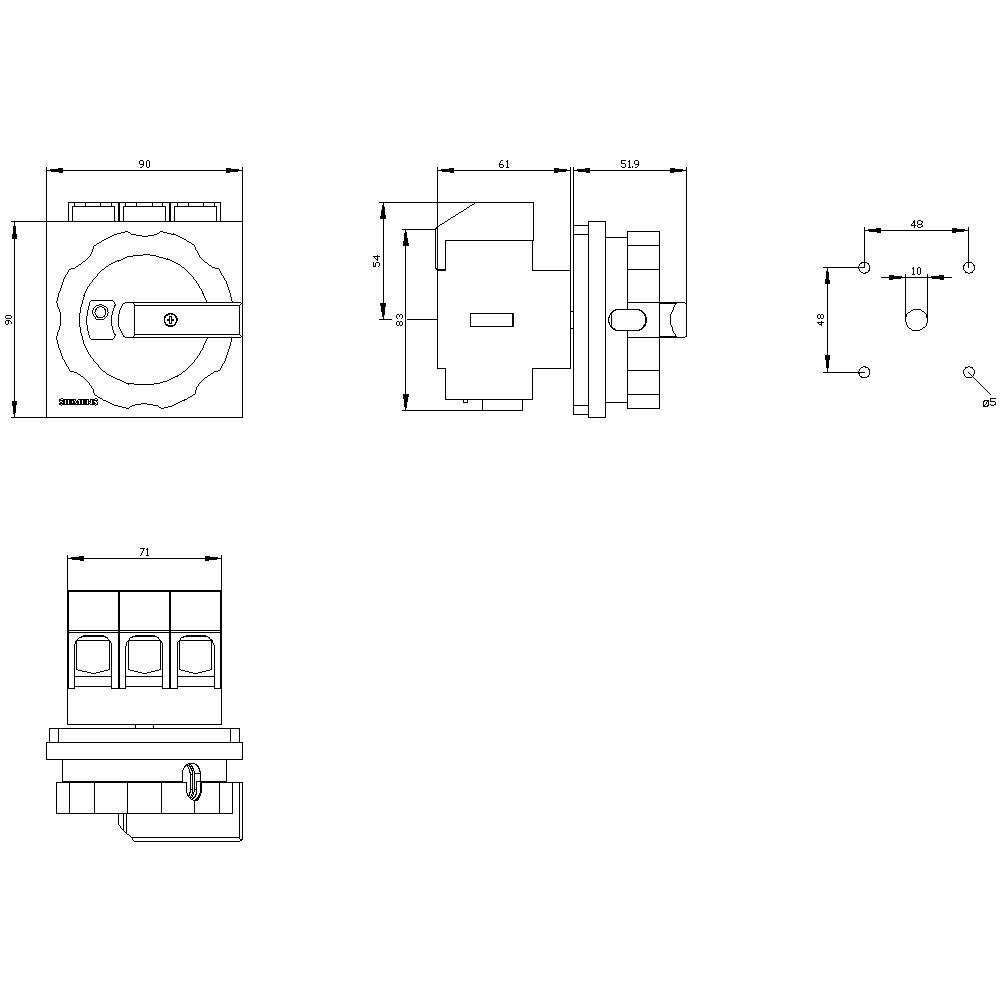

Technical drawing of a switch with multiple views, including front, side, and top view. Dimensions specified in millimetres.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

125 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 4
Power loss: 36 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 50 mm²

Number of pins: 3

Dim: (W x H x D) 90 x 106 x 112.5 mm

Nominal current: 125 A

Nominal current - rounded value: 125 A

Type: Step Switches

Width: 90 mm

Height: 106 mm

Depth: 112.5 mm

: 37 kW

: 0

: 0

: 125 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 45 kW

: 2 kA

: Black

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 125 A

: FALSE

: 80

: Other

UKCA: yes
