Name: Circuit breakers Black 4-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25041TD51
Brand: Siemens
SKU: 1744163
Availability: BackOrder

An electrical rotary switch with a position for '0' (Off) and '1' (On).

Circuit diagram of an electrical circuit with a main switch Q1 and multiple contacts, some crossed out, others connected.

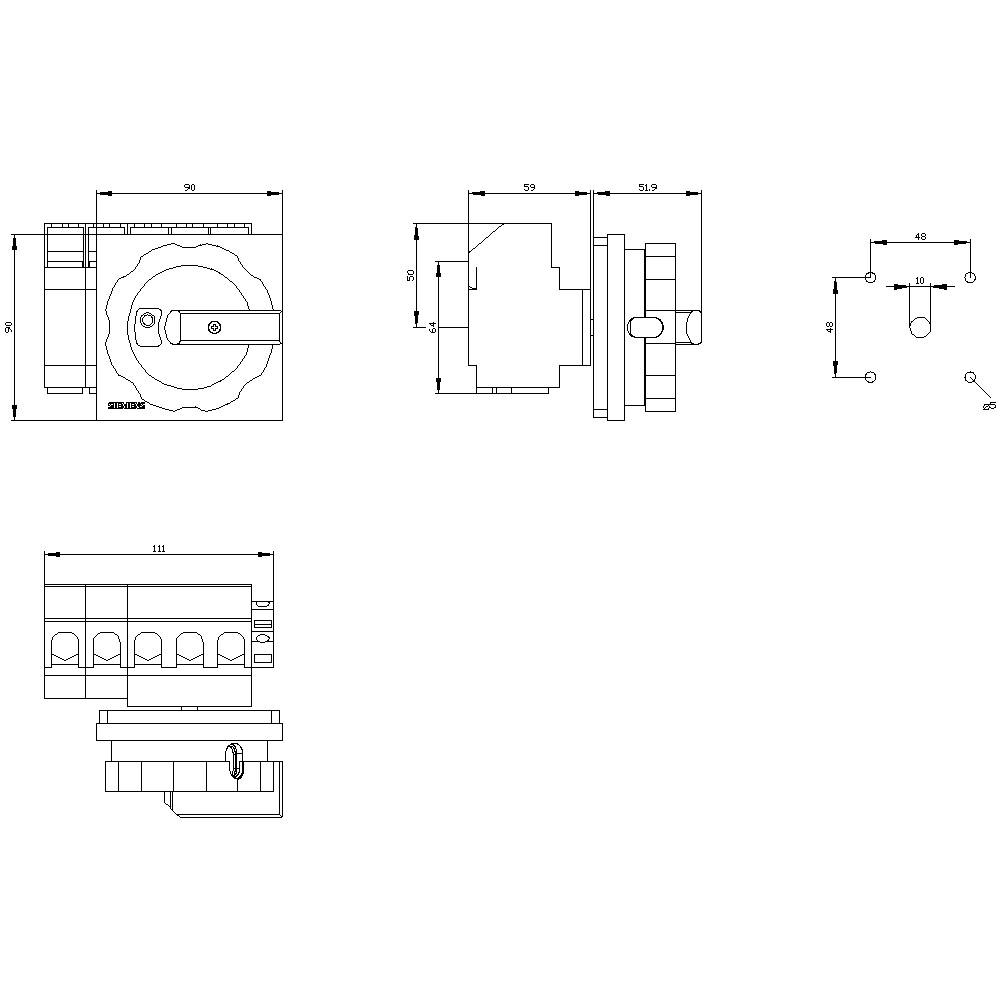

Technical drawing of a switch with multiple views and dimensions, including front and side views. Contains detailed measurements.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

63 A

Contact type

1 maker

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 3
Power loss: 18 W

Product type: Circuit breakers

Contact type: 1 maker
1 breaker

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 35 mm²

Number of pins: 4

Dim: (W x H x D) 90 x 106 x 110.5 mm

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Step Switches

Width: 90 mm

Height: 106 mm

Depth: 110.5 mm

: 19 kW

: 1

: 1

: 63 A

: 4

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 22 kW

: 1.26 kA

: Black

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 63 A

: FALSE

: 43

: Other

UKCA: yes
