Name: Circuit breakers Black 6-pin 185 mm² 160 A 690 V AC Siemens 3LD23053VK11
Brand: Siemens
SKU: 1704479
Availability: BackOrder

A rotary switch in industrial design, marked with the positions 'ON' and 'OFF', indicates the operational status.

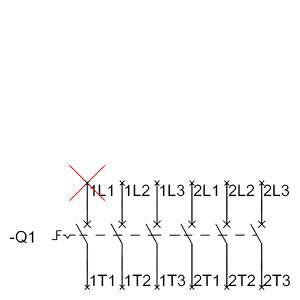

Circuit diagram of a three-phase power switch with three current paths, labelled as 1L1, 1L2, 1L3, 2L1, 2L2, 2L3.

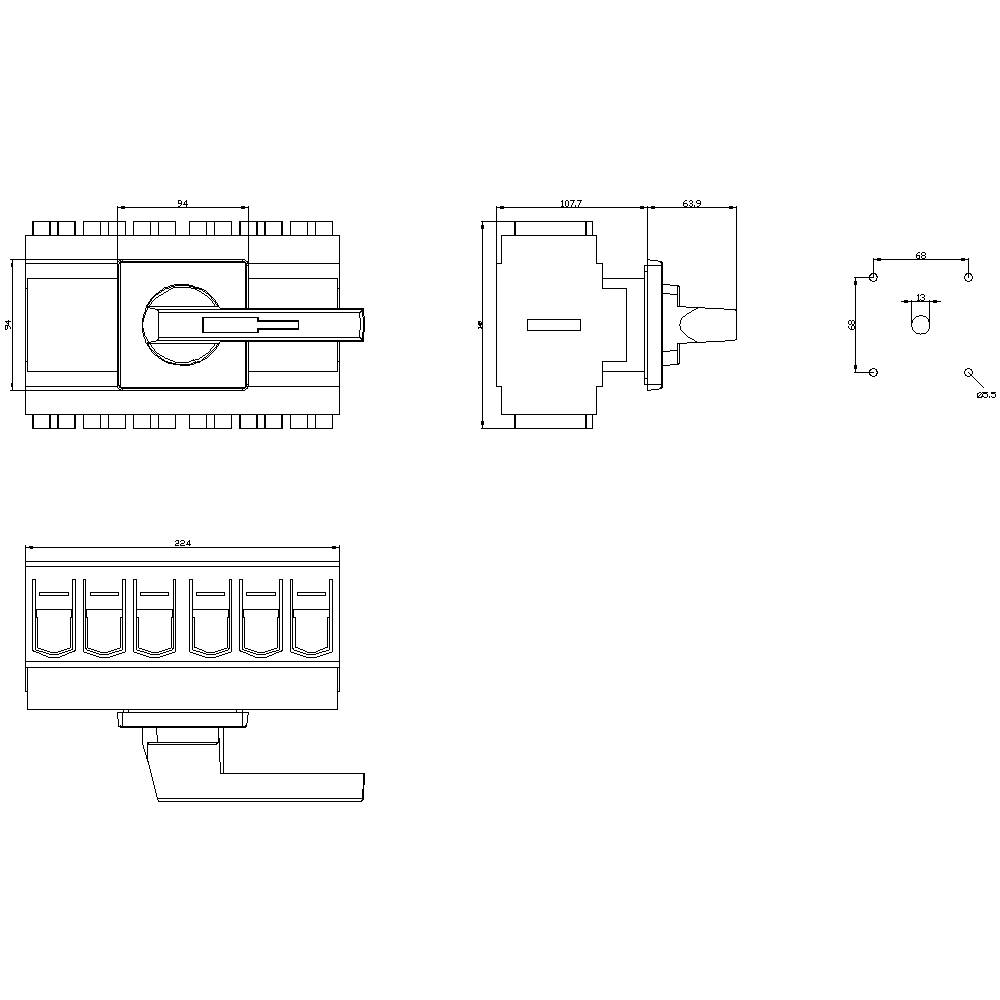

Technical drawing of an electromechanical component with multiple views and dimensioning. Views show top view, side view, and cross-sectional view.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

160 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 765.00 / piece)

€ 765.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 8 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 5
Power loss: 216 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 185 mm²

Number of pins: 6

Dim: (W x H x D) 224 x 168 x 106 mm

Nominal current: 160 A

Nominal current - rounded value: 160 A

Type: Step Switches

Width: 224 mm

Height: 168 mm

Depth: 106 mm

: 50 kW

: 0

: 0

: 160 A

: 6

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Toggle

: TRUE

: TRUE

: TRUE

: 75 kW

: 4 kA

: Black

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 160 A

: FALSE

: 132

: Other

UKCA: yes
