Name: Circuit breakers Red, Yellow 3-pin 16 mm² 25 A 690 V AC Siemens 3LD21220TK13
Brand: Siemens
SKU: 1704886
Availability: InStock

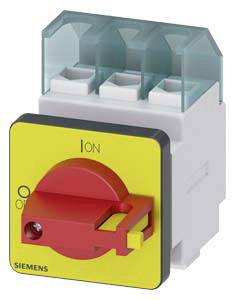

A Siemens main switch. At the top: three connection terminals. At the front: a yellow and red control panel with the markings 'ON' and 'OFF'.

Circuit diagram of an electrical circuit with contact L1 crossed out. Q1 is located bottom left, T1-T4 top right. Contacts L and T alternate.

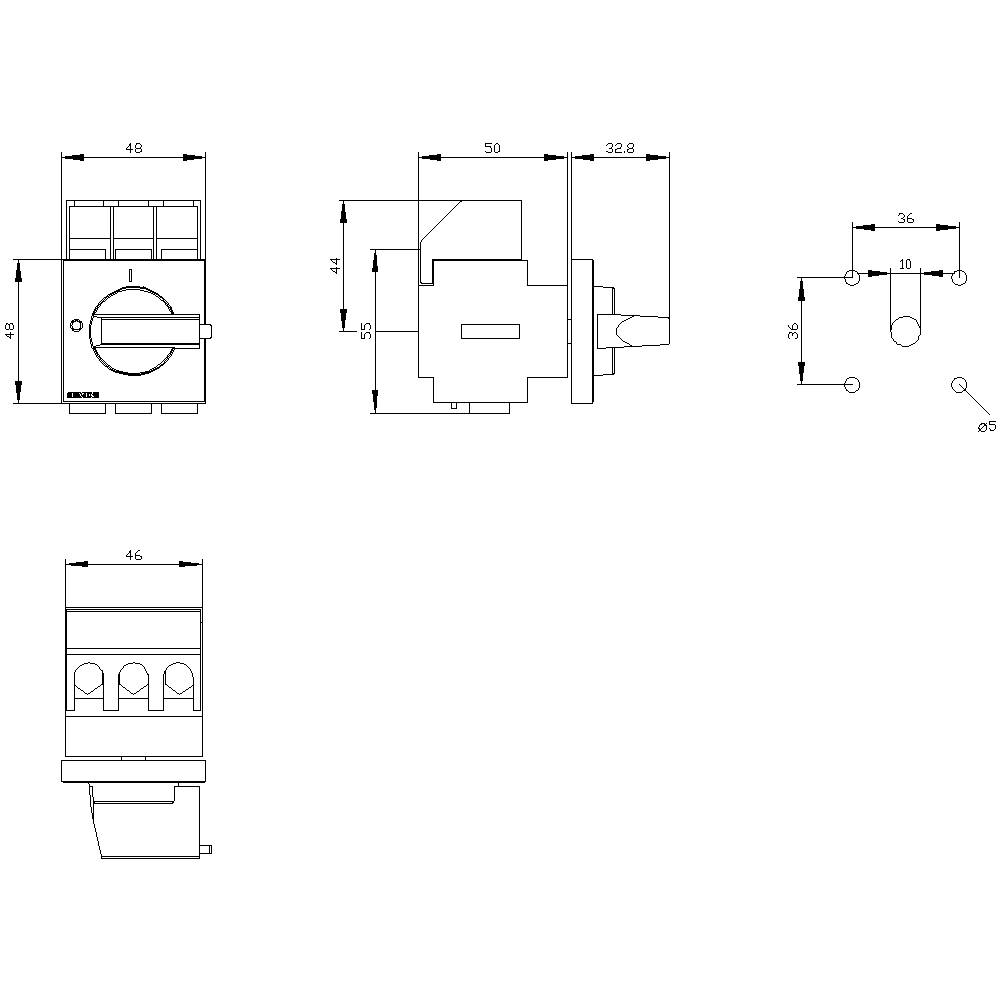

Technical drawing of a switch with front view, side view, top view, and detailed view with dimensions in millimetres.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

25 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 2
Power loss: 3.3 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 16 mm²

Number of pins: 3

Dim: (W x H x D) 49 x 71 x 85.5 mm

Nominal current: 25 A

Nominal current - rounded value: 25 A

Type: Emergency stop switch

Width: 49 mm

Height: 71 mm

Depth: 85.5 mm

: 8 kW

: 0

: 0

: 25 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Toggle

: TRUE

: TRUE

: TRUE

: 10 kW

: 0.64 kA

: Red

: TRUE

: TRUE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 25 A

: FALSE

: 20

: Other

UKCA: yes
