Name: Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Conductor type = N Siemens 3LD22170TK13
Brand: Siemens
SKU: 1751351
Availability: InStock

A yellow-red main switch with a long handle bar, suitable for mounting on control cabinet doors. Compact design for flexible applications.

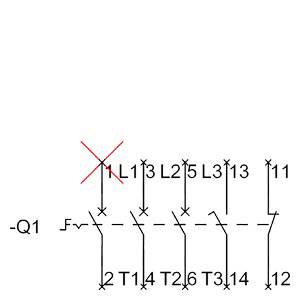

Wiring diagram of an electrical engineering system, showing a series of switch contacts and connections, with a red 'X' over 'L1'.

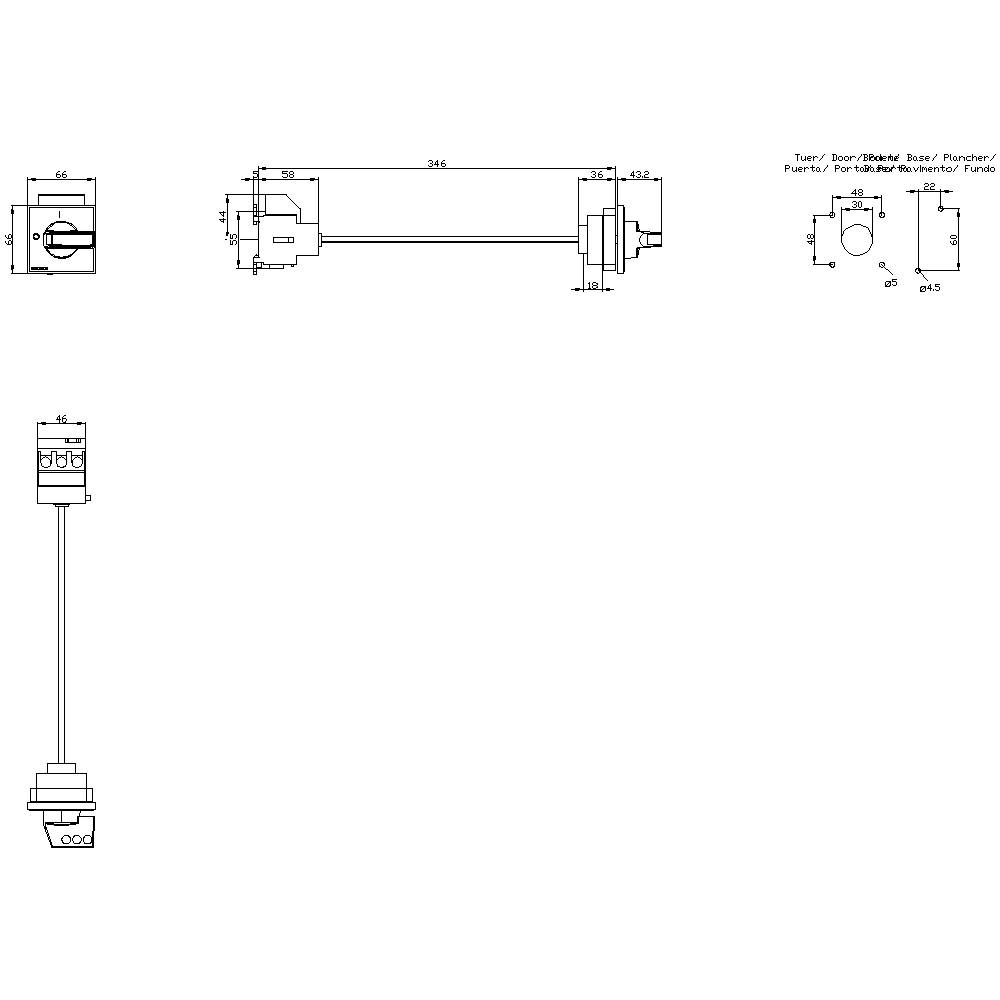

Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Conductor type = N Siemens 3LD22170TK13-2

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

32 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 2
Power loss: 5.4 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 16 mm²

Number of pins: 3

Dim: (W x H x D) 67 x 79 x 385 mm

Nominal current: 32 A

Nominal current - rounded value: 32 A

Type: Emergency stop switch

Conductor type: N

Width: 67 mm

Height: 79 mm

Depth: 385 mm

: 10 kW

: 0

: 0

: 32 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Toggle

: TRUE

: TRUE

: TRUE

: 12 kW

: 0.64 kA

: Red

: TRUE

: TRUE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 32 A

: FALSE

: 22

: Other

UKCA: yes
