Name: Circuit breakers Red, Yellow 3-pin 16 mm² 32 A 690 V AC Siemens 3LD22220TK13
Brand: Siemens
SKU: 1698865
Availability: BackOrder

A red main switch with a yellow base, marked with 'I' for on and 'O' for off, indicates the status. Covered in blue at the top.

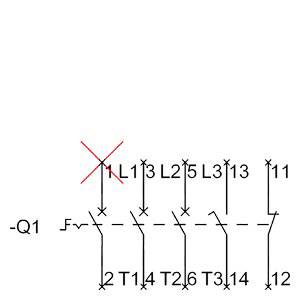

Circuit diagram of an electrical system with a main switch '-Q1' and multiple connections to L1, L2, L3, T1, T2, T3.

Technical drawing of a switch with dimensions in millimetres. Main view, side view, and top view are shown.

1/3

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

32 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 2
Power loss: 5.4 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 16 mm²

Number of pins: 3

Dim: (W x H x D) 49 x 71 x 85.5 mm

Nominal current: 32 A

Nominal current - rounded value: 32 A

Type: Emergency stop switch

Width: 49 mm

Height: 71 mm

Depth: 85.5 mm

: 10 kW

: 0

: 0

: 32 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Toggle

: TRUE

: TRUE

: TRUE

: 12 kW

: 0.64 kA

: Red

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 32 A

: FALSE

: 22

: Other

UKCA: yes
