Name: Circuit breakers Red, Yellow 3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25041TP53
Brand: Siemens
SKU: 1744166
Availability: InStock

Yellow and red main switch, square base plate, lever rotated, two connections on top, used for electrical isolation.

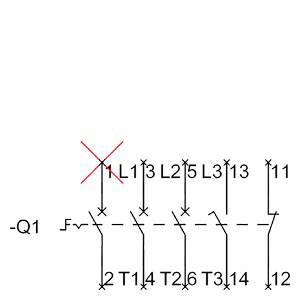

Protective circuit diagram with six switching contacts. Contact 1L is marked with a red cross, indicating a connection problem.

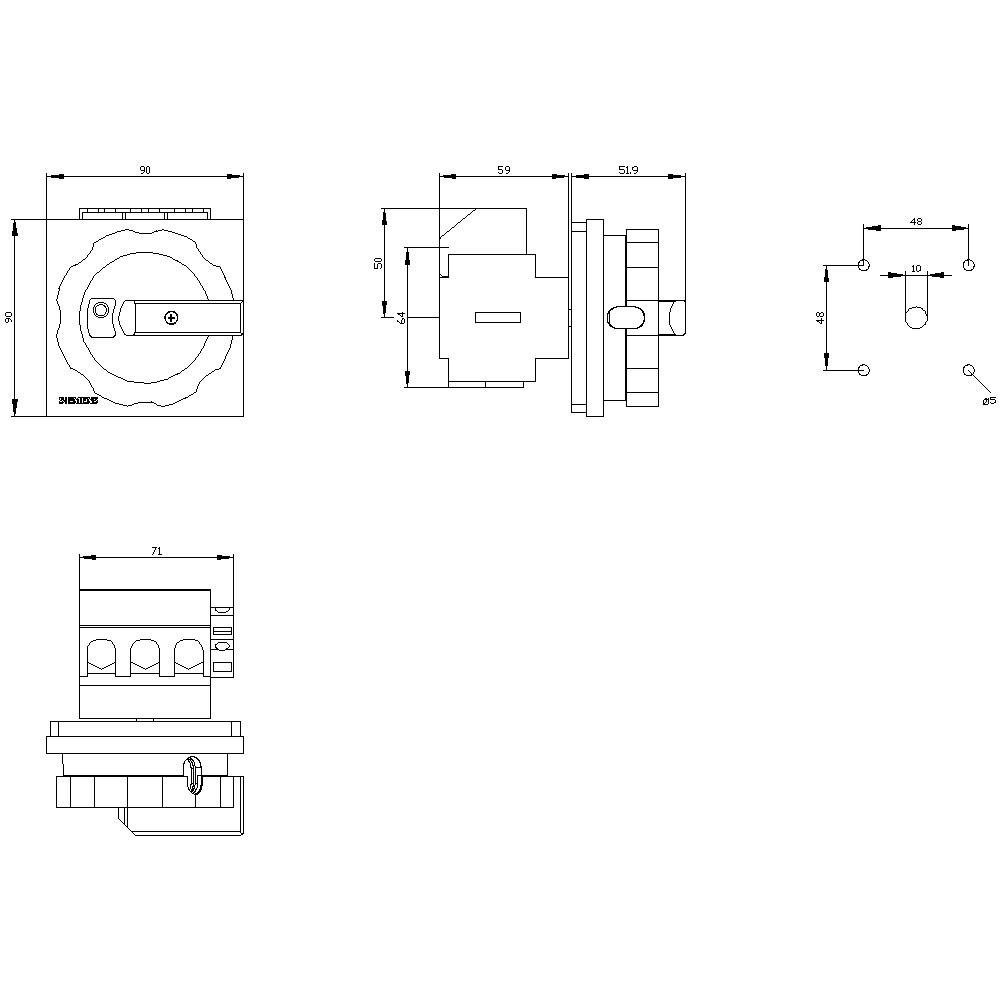

Technical drawing of a switch with various views and dimensions in millimetres: front view, side view, and top view.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

63 A

Contact type

1 maker

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 3
Power loss: 13.5 W

Product type: Circuit breakers

Contact type: 1 maker
1 breaker

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 35 mm²

Number of pins: 3

Dim: (W x H x D) 90 x 106 x 110.5 mm

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Emergency stop switch

Width: 90 mm

Height: 106 mm

Depth: 110.5 mm

: 19 kW

: 1

: 1

: 63 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 22 kW

: 1.26 kA

: Red

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 63 A

: FALSE

: 43

: Other

UKCA: yes
