Name: Circuit breakers Red, Yellow 3-pin 50 mm² 125 A 1 maker, 1 breaker 690 V AC Siemens 3LD28041TP53
Brand: Siemens
SKU: 1744379
Availability: InStock

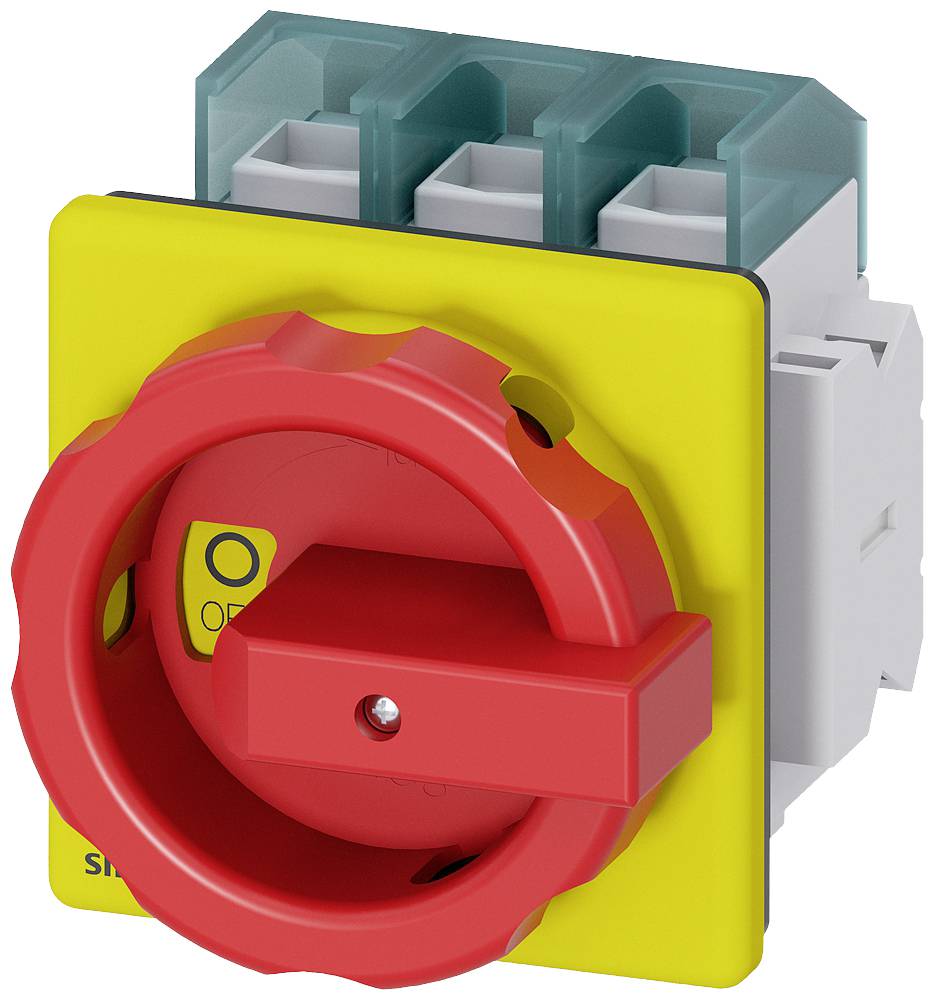

A red emergency stop switch with a yellow-primed housing. The switch is in the 'Off' position and is used for safely shutting down machinery.

Contactor Circuit Diagram: Shows a series of contacts (1L, 2T, 3L, 4T etc.). An 'X' marks '1L', which appears to be uncontacted.

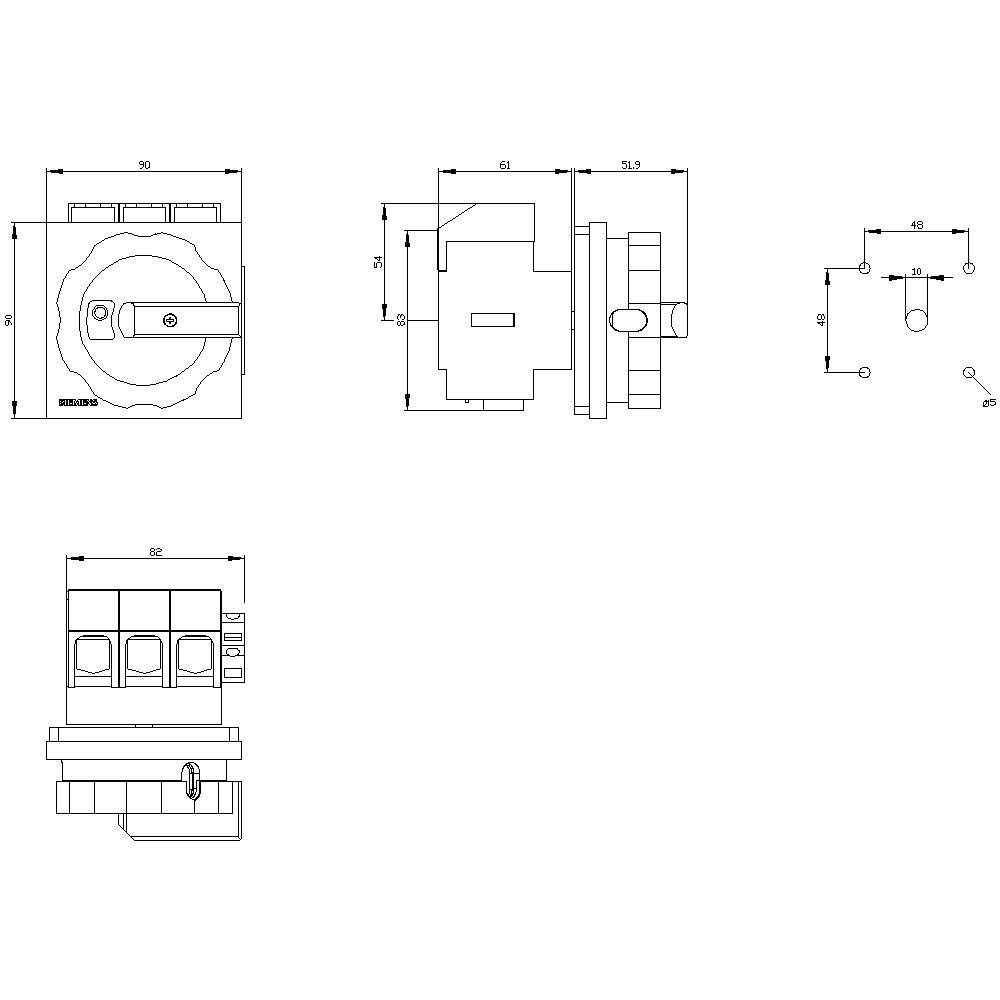

Technical drawing of a switching unit with dimensions in millimetres, showing front and side views, relevant connections and detailed measurements.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

125 A

Contact type

1 maker

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 4
Power loss: 36 W

Product type: Circuit breakers

Contact type: 1 maker
1 breaker

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 50 mm²

Number of pins: 3

Dim: (W x H x D) 90 x 106 x 112.5 mm

Nominal current: 125 A

Nominal current - rounded value: 125 A

Type: Emergency stop switch

Width: 90 mm

Height: 106 mm

Depth: 112.5 mm

: 37 kW

: 1

: 1

: 125 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 45 kW

: 2 kA

: Red

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 125 A

: FALSE

: 80

: Other

UKCA: yes
