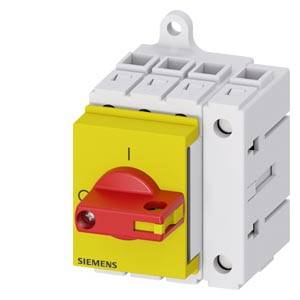

Name: Circuit breakers Red, Yellow 4-pin 16 mm² 25 A 690 V AC Conductor type = N Siemens 3LD31300TL13
Brand: Siemens
SKU: 1741519
Availability: InStock

Technical drawing of a switch with side, front, and top views. Dimensions: 35.5 mm width, 70 mm height, 60 mm depth.

1/2

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

25 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP40
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Power loss: 4.4 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 16 mm²

Number of pins: 4

Dim: (W x H x D) 49 x 60 x 77 mm

Nominal current: 25 A

Nominal current - rounded value: 25 A

Type: Emergency stop switch

Conductor type: N

Width: 49 mm

Height: 60 mm

Depth: 77 mm

: 8 kW

: 0

: 0

: 25 A

: 4

: IP40

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Toggle

: TRUE

: TRUE

: TRUE

: 10 kW

: 0.5 kA

: Red

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 25 A

: FALSE

: 20

: Other

UKCA: yes
