Name: Circuit breakers Red, Yellow 4-pin 50 mm² 100 A 690 V AC Siemens 3LD27042TC53
Brand: Siemens
SKU: 1744362
Availability: BackOrder

A red rotary switch with a yellow base, used for controlling electrical circuits, with multiple terminal connections on top.

'Circuit diagram shows a three-phase power contactor -Q1. Lines mark connections: L1, L2, L3 for inputs, T1, T2, T3 for outputs.'

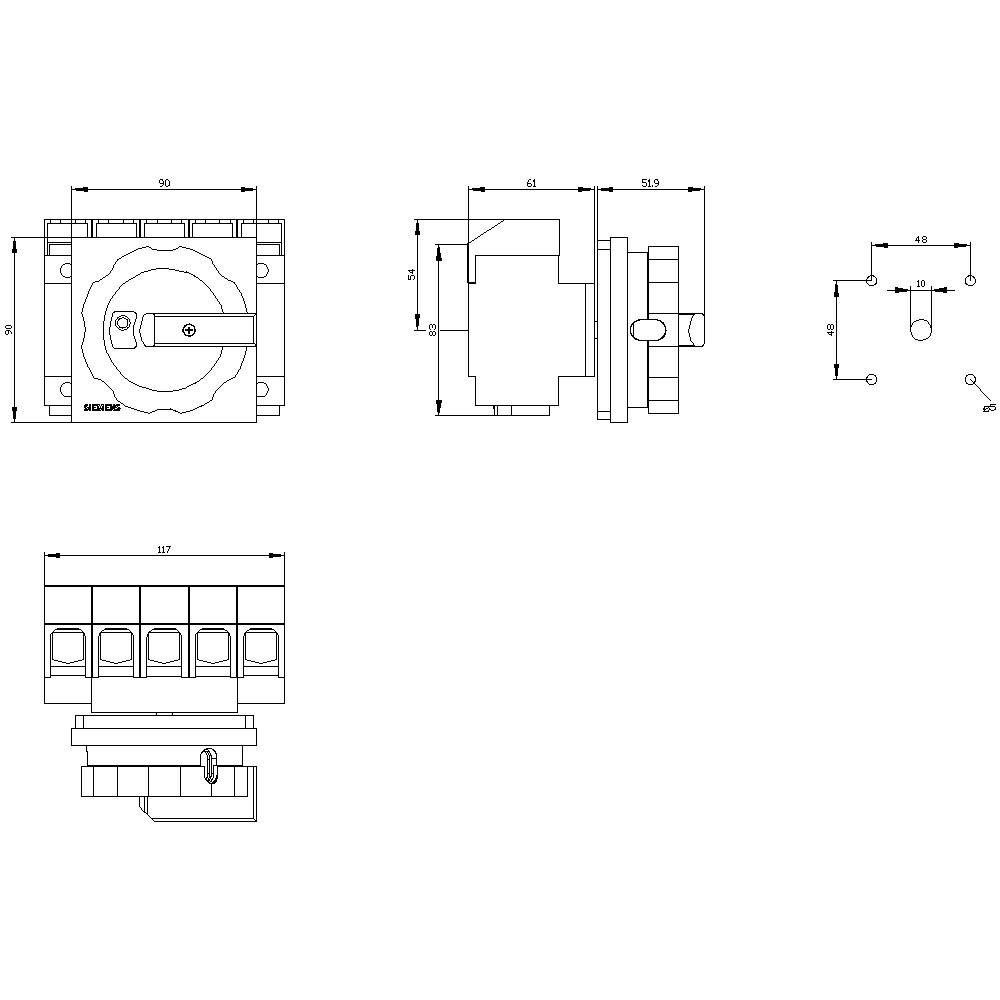

Technical drawing of a switch with dimensions: 90 mm width, 61 mm depth, 80 mm height, showing mounting view and detailed view.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

100 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 4
Power loss: 30 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 50 mm²

Number of pins: 4

Dim: (W x H x D) 90 x 107 x 112.5 mm

Nominal current: 100 A

Nominal current - rounded value: 100 A

Type: Emergency stop switch

Width: 90 mm

Height: 107 mm

Depth: 112.5 mm

: 30 kW

: 0

: 0

: 100 A

: 4

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 37 kW

: 2 kA

: Red

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 100 A

: FALSE

: 70

: Other

UKCA: yes
