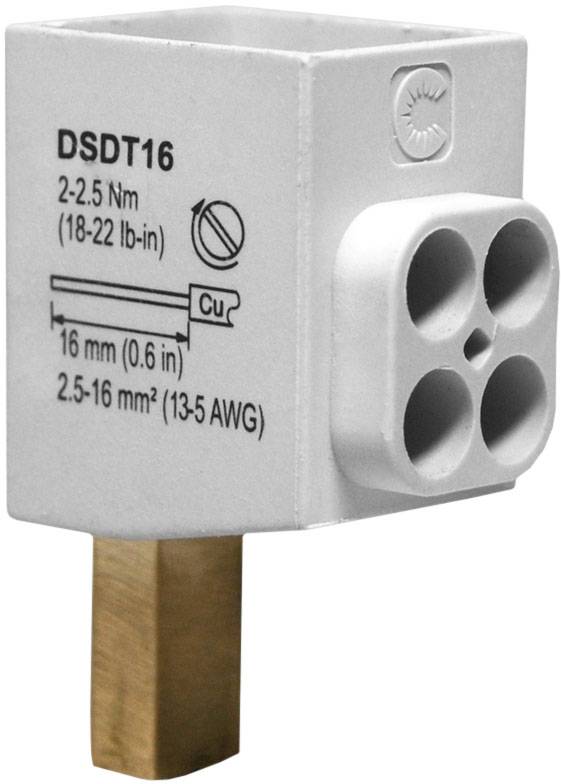

Citel 400102 DSDT16 Screw terminal block Piece 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
V-screw terminal
- Enables an optimum protection effect thanks to short connection cables according to VDE 0100-534
- Mini max. cross section 2.5 - 16 mm²
- This text is machine translated.
Technical specifications
- Product type
Screw terminal block
- Manufacturer part #
400102
- Dim
(W x H x D) 17.5 x 48 x 25 mm
- Width
17.5 mm
- Height
48 mm
- Depth
25 mm
- Content
1 pc(s)
- Packaging type
Piece
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357960 Citel 400102 DSDT16 Screw terminal block Piece 1 pc(s)
Description
Features
- "V" connection Screw terminal for SPD
- Enables an optimum protection effect thanks to short connection cables according to VDE 0100-534 And VDS 2031
- 2 x 16 mm² conductor connection
- Developed for overvoltage protection devices DAC/DS-series
