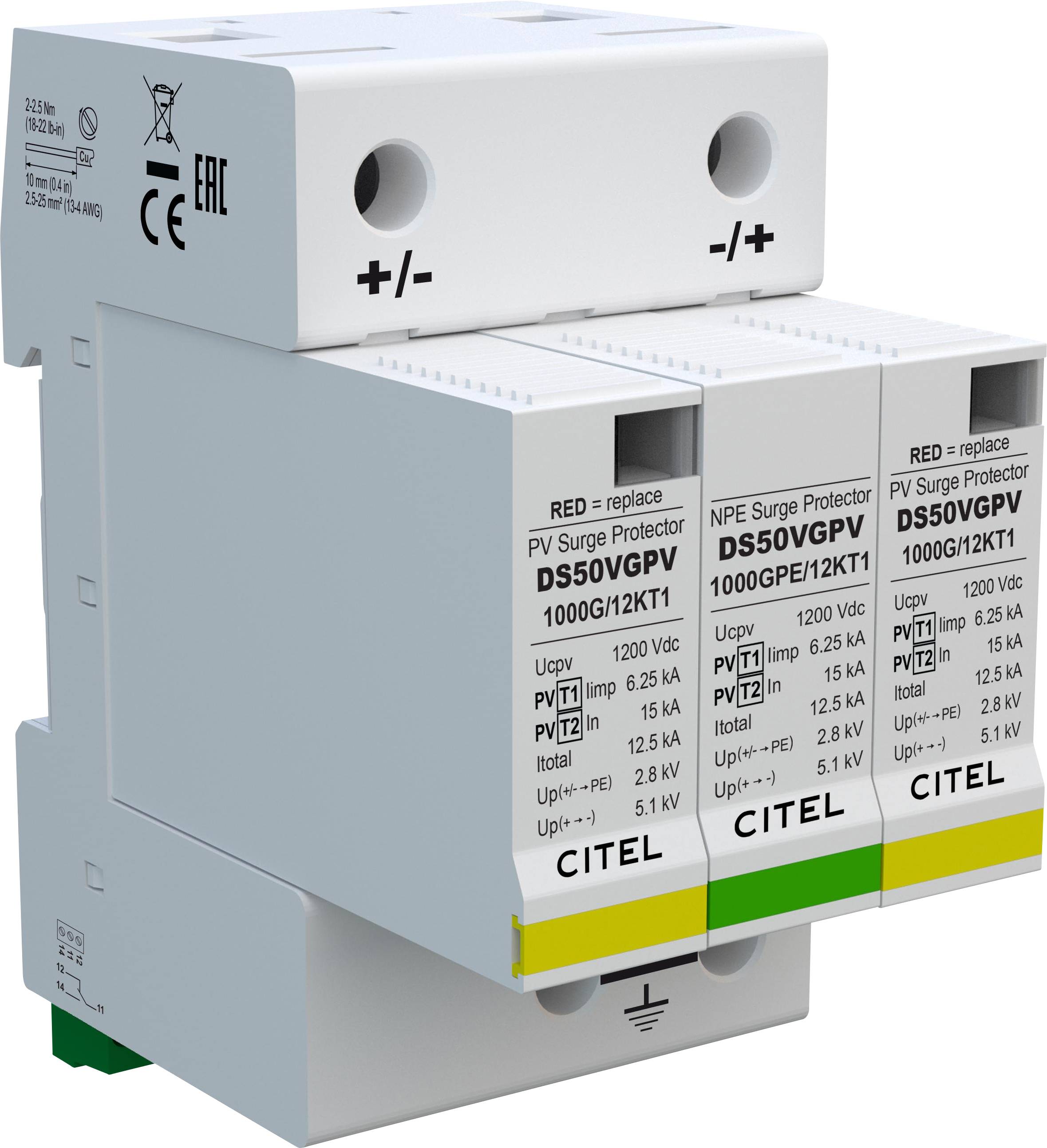

Citel 482313 DS50VGPVS-1000G/12KT1 Lightning conductor Surge protection for: Switchboards 60 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection DC type 1+2 2-pin
- Conductivity per pole: Iimp/Itotal = 6.25/12.5 kA (10/350 µs)
- Modules can be plugged in
- Remote signaling
- For VG-Technology, PV Photovoltaics
Technical specifications
- Internal thermal separation device
- Installation dimensions 3 TE, DIN 43880
- Connection type 2.5-25 mm² (35 mm²)
- Status display mechanical, red
- Failure behavior separation from the network
- Remote signal signaling (FS) potential-free changeover contact
- Connection cross-section FS max. 1.5 mm² single/multi-wire
- Mounting on 35 mm DIN rail
- Housing material thermoplastic UL-94-VO
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
60 kA
- Nominal voltage
1000 V
- Pick-up time (details)
20 ns
- Operating temperature
-40 °C/+85 °C
- Peak energy consumption
10000 J
IP20
- Manufacturer part #
482313
- Factory colour
White
- Dim
(W x H x D) 54 x 90 x 80 mm
- Width
54 mm
- Height
90 mm
- Depth
80 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357940 Citel 482313 DS50VGPVS-1000G/12KT1 Lightning conductor Surge protection for: Switchboards 60 kA 1 pc(s)
Description
Combination conductor type 1+2 for DC applications, operating and leakage-free, with "VG-Technology" based on gas-filled spark gaps, with remote signaling.
This text is machine translated.
This text is machine translated.
Features
- Combination arrester type 1+2 based on a gas-filled spark gap
- Conductivity per pole: Imp/Itotal= 6.25/12.5 kA (10/350 μs) in/Itotal= 15/60 kA (8/20 μs)
- Safe separation device, double galvanic separation
- No aging due to operating and leakage currents
- Fault-resistant, polarity-safe Y-circuit
- No influence on the insulation measurement
- No damage in case of insulation faults
- Complies with EN 50539-11 standards
