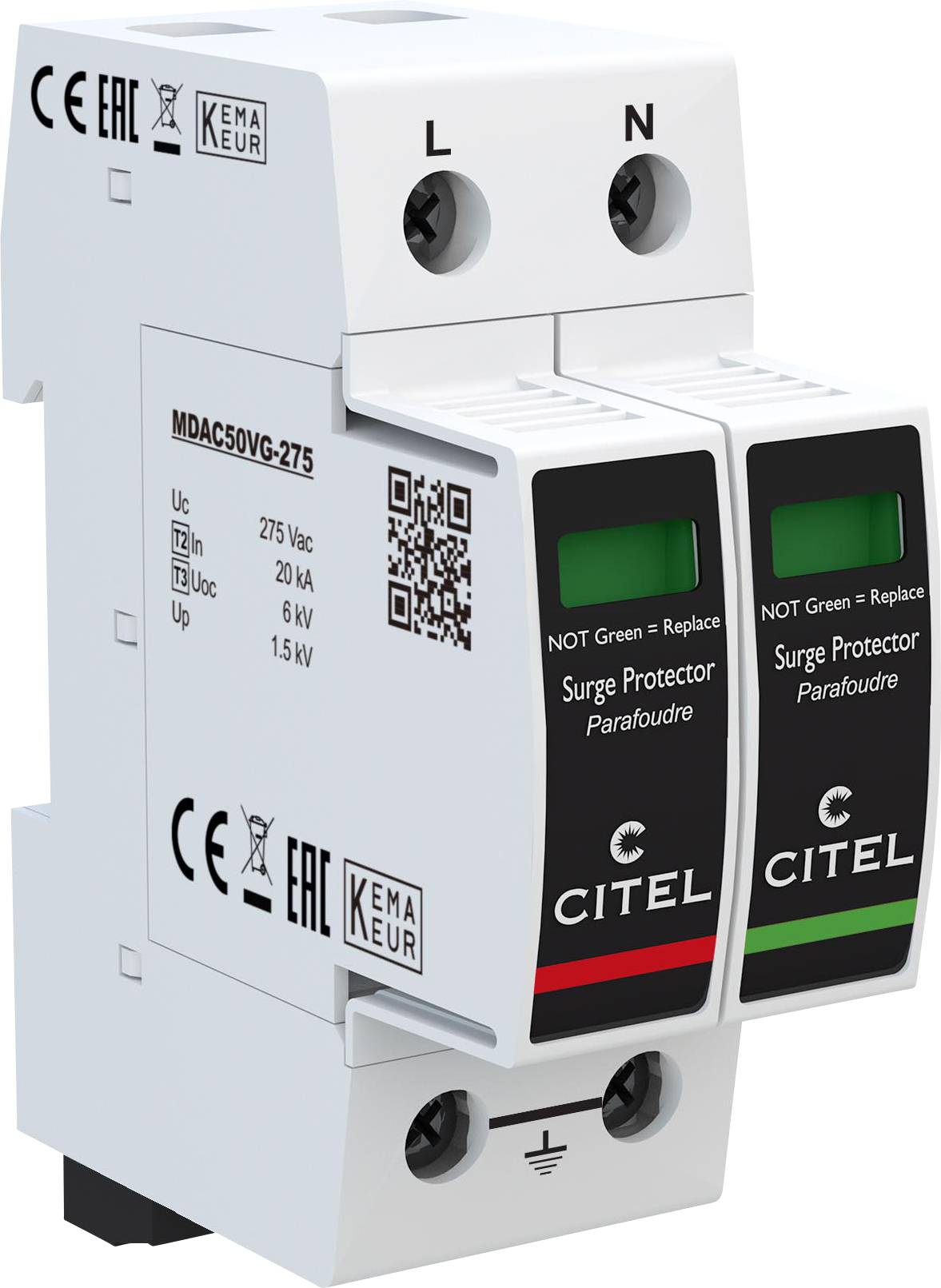

Citel 821130242 DAC50VGS-11-275 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection AC type 2+3 for TT and TNS networks 2-pin
- Modules can be plugged in
- Remote signaling
- Connection type 230 V 1-phase+N.
- Mains form TT-TNS systems (1+1)
- Protection mode: L/N and N/PE
Technical specifications
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
230 V
- Pick-up time (details)
20 ns
- Operating temperature
-40 °C /+85 °C
IP20
- Manufacturer part #
821130242
- Factory colour
White
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357925 Citel 821130242 DAC50VGS-11-275 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
Description
2-pin (1+1), modular combination arrester type 2+3 on spark gap basis for use in sub-distribution.
This text is machine translated.
This text is machine translated.
Features
- Combination arrester type 2+3 based on a gas-filled spark gap
- Conductivity per pole: In= 20 kA; Imax= 50 kA
- Safe separation device
- Plug-in protection modules
- Saves energy costs, does not generate any downstream (short-circuit) current, no operating current or leakage current
- Remote signaling as standard
- Complies with the standards IEC 61643-11 and EN 61643-11
