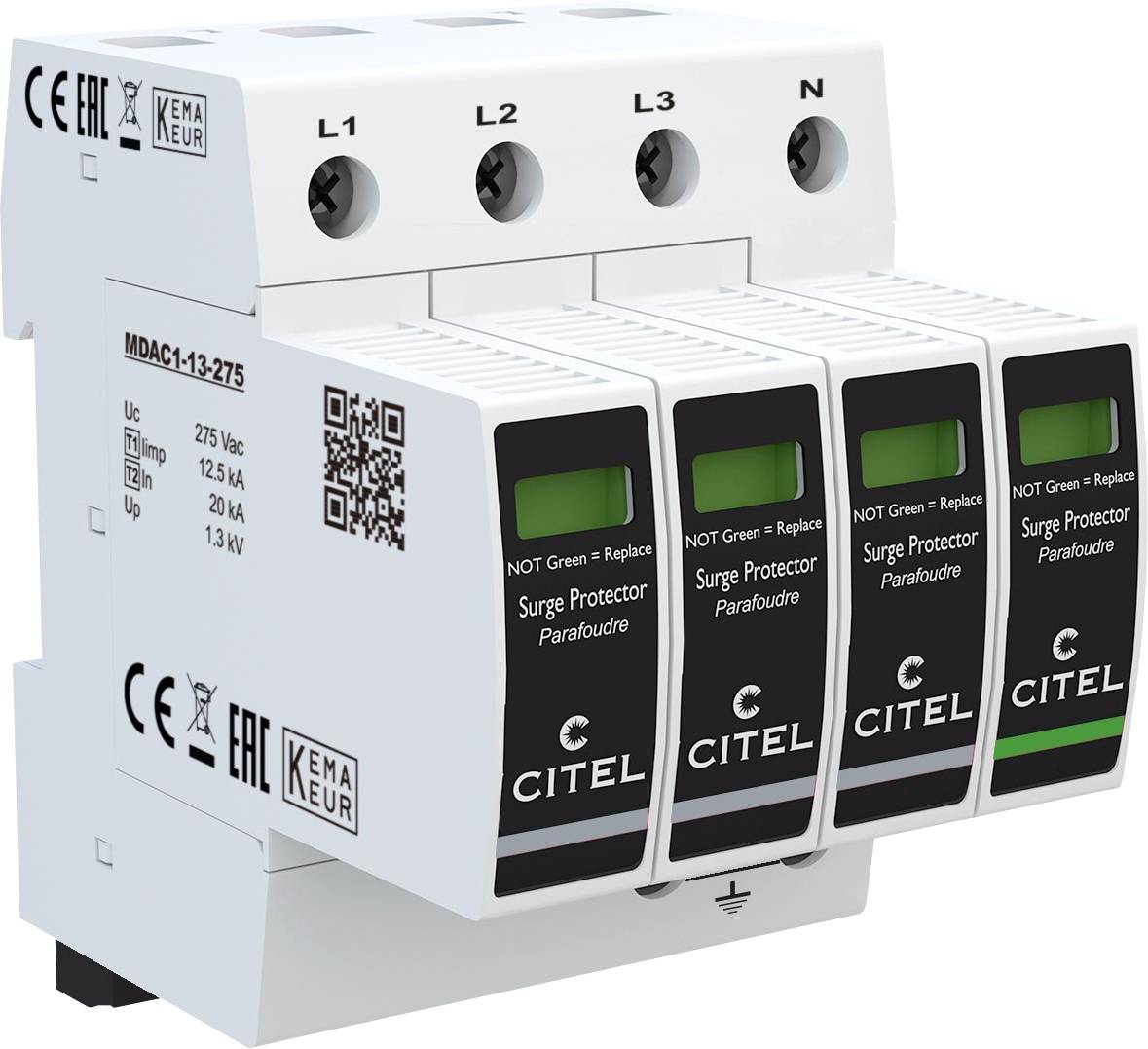

Citel 821710244 DAC1-13S-31-275 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection AC type 1+2 for TT and TNS networks 4-pin
- Modules can be plugged in
- Remote signaling
- Mains form TT-TNS systems (3+1)
- Protection mode: L/N and N/PE
Technical specifications
- Installation dimensions 1 TE, EN 43880
- Connection type 2.5-25 mm² (35 mm²)
- Failure behavior separation from the network
- Status display mechanical, green / red
- Remote signal signaling (FS) potential-free changeover contact
- SWITCHING CAPACITY MAX. 250 V/0.5 A (AC) / 30 V/2 A (DC)
- Connection cross-section FS max. 1.5 mm² single/multi-wire
- Mounting on 35 mm DIN rail, EN 60715
- Temperature range -40 °C/+85 °C.
- Protection: IP 20
- Thermoplastic casing material UL-94-V0
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
50 kA
- Nominal voltage
230 V
400 V
- Pick-up time (details)
20 ns
- Operating temperature
-40 °C /+ 85 °C
IP20
- Manufacturer part #
821710244
- Factory colour
White
- Standards
DIN EN61643-11, IEC 61643-11, UL 1449 ED.4, IEC 61643-11
- Dim
(W x H x D) 72 x 90 x 87.8 mm
- Width
72 mm
- Height
90 mm
- Depth
87.8 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357922 Citel 821710244 DAC1-13S-31-275 Lightning conductor Surge protection for: Switchboards 50 kA 1 pc(s)
Description
4-pin (3+1), modular combination conductor type 1+2 for use in the main distribution.
This text is machine translated.
This text is machine translated.
Features
- Combination arrester type 1+2
- Conductivity per pole: In= 20 kA; Imax= 50kA; Iimp= 12.5 kA
- Safe separation device
- Plug-in protection modules
- Can be used for the lightning protection classes III + IV.
- Remote signaling as standard
- Complies with the standards IEC 61643-11 and EN 61643-11
