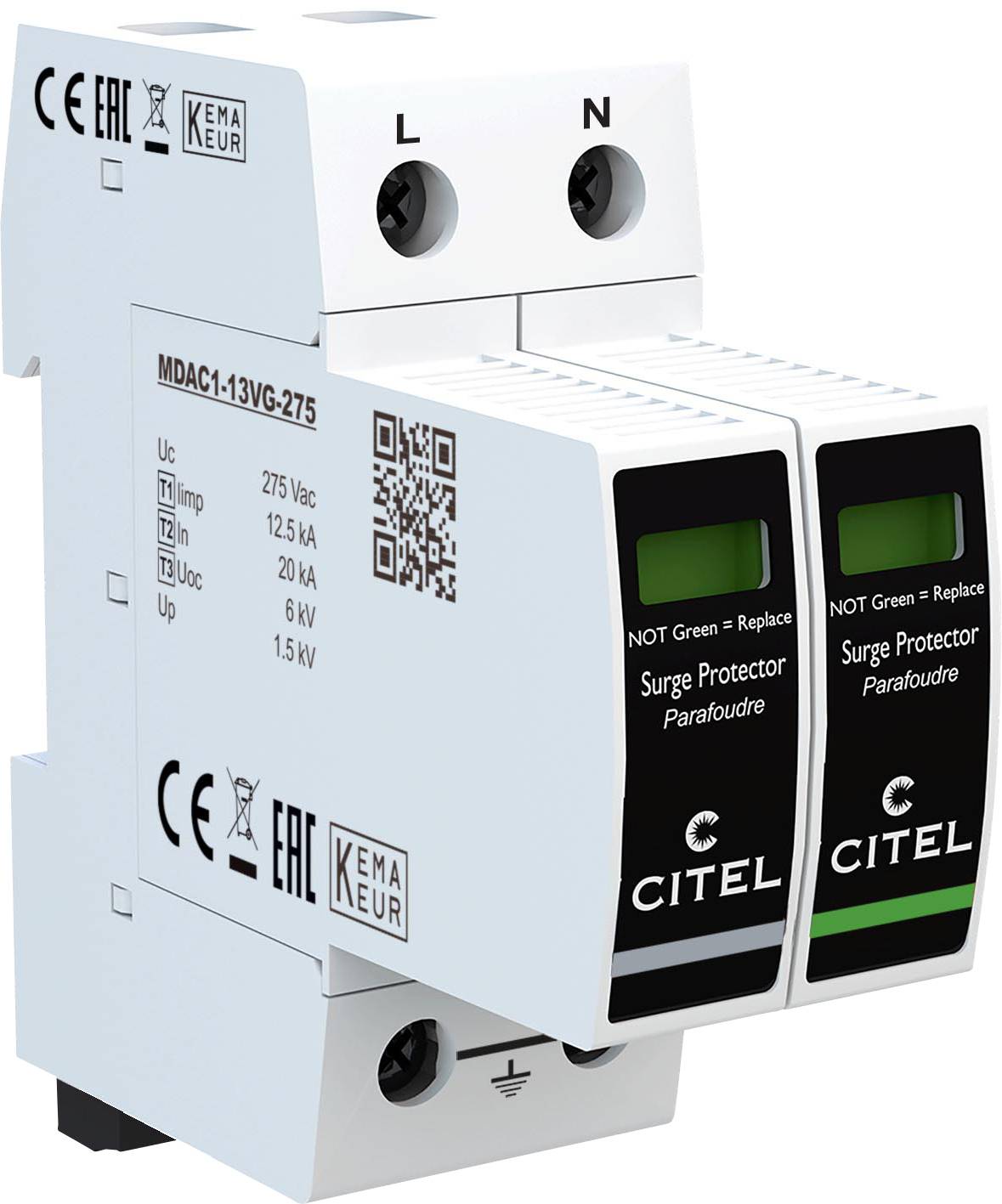

Citel 821730242 DAC1-13VGS-11-275 Lightning conductor Surge protection for: Switchboards 25 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Overvoltage protection AC type 1+2+3 for TN-networks 2-pin
- Modules can be plugged in
- Remote signaling as standard
- 2-pin modular multi-conductor
Technical specifications
- Installation dimensions 1 TE, EN 43880
- Connection type 2.5-25 mm² (35 mm²)
- Failure behavior separation from the network
- Status display mechanical, green / red
- Remote signal signaling (FS) potential-free changeover contact
- SWITCHING CAPACITY MAX. 250 V/0.5 A (AC) / 30 V/2 A (DC)
- Connection cross-section FS max. 1.5 mm² single/multi-wire
- Mounting on 35 mm DIN rail, EN 60715
- Thermoplastic casing material UL-94-V0
- Product type
Lightning conductor
- Surge protection for
Switchboards
- Leakage current
25 kA
- Nominal voltage
230 V
- Pick-up time (details)
20 ns
- Operating temperature
-40 °C /+ 85 °C
IP20
- Manufacturer part #
821730242
- Factory colour
White
- Width
36 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357921 Citel 821730242 DAC1-13VGS-11-275 Lightning conductor Surge protection for: Switchboards 25 kA 1 pc(s)
Description
2-pin (1+1), modular combination arrester type 1+2+3 on a spark gap basis for use in the main distribution, can be used in the pre-counter range according to VDN guidelines.
This text is machine translated.
This text is machine translated.
Features
- Combination arrester type 1+2+3 based on a gas-filled spark gap
- Connection type: 230 V 1-phase+N.
- Mains form: TT-TN systems (1+1)
- Conductivity per pole: Iimp= 12.5 kA (10/350 μs)
- Safe separation device
- Saves energy costs, does not generate any downstream (short-circuit) current, no operating current or leakage current
- Can be used for the lightning protection classes III + IV.
- Remote signaling as standard
- Complies with the standards IEC 61643-11 and EN 61643-11
- VDE-AR-N 4100 compliant "Use of overvoltage protection devices (SPD) type 1 in main power supply systems".
