Clip Camera microphone JTS KA-10/1PACK Transfer type (details):Radio Switch
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

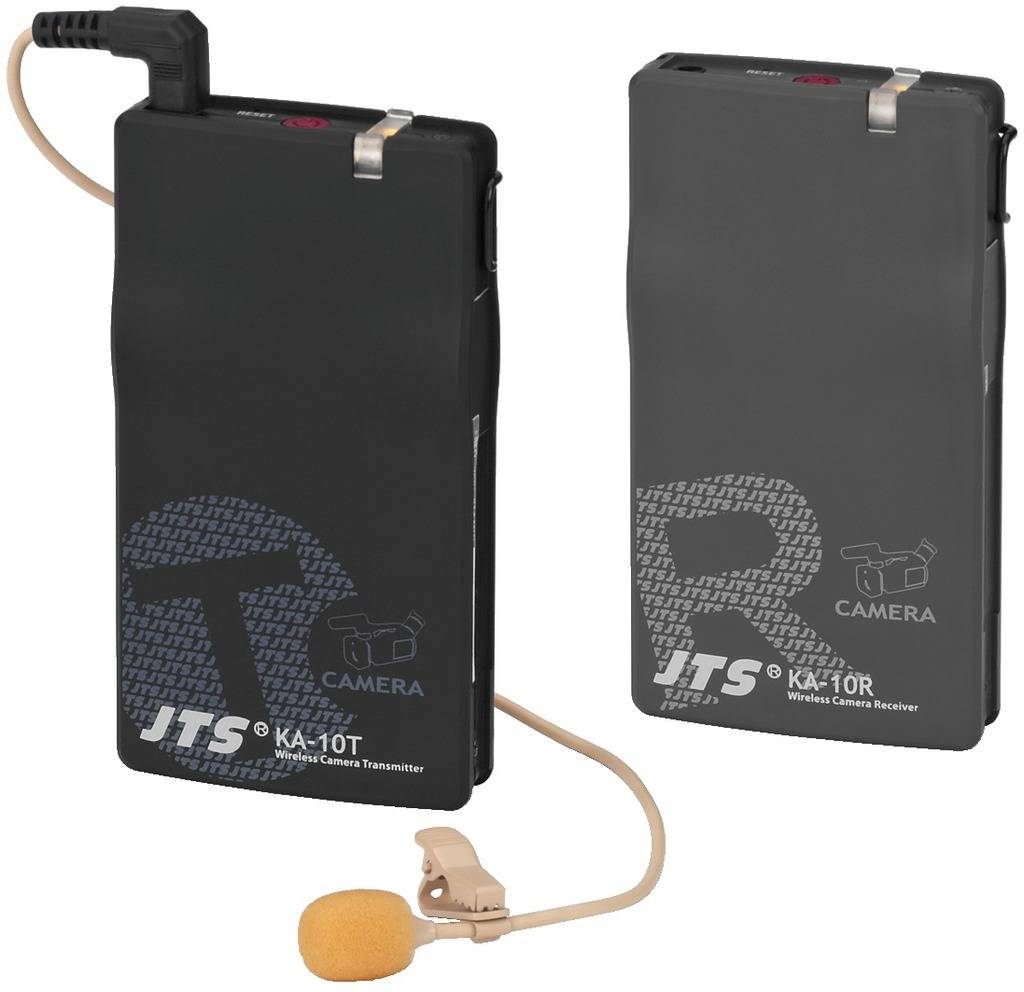

JTS KA -10/1 PACK audio transmission system
- Have you ever dreamed which videographer has, a live interview or animal consumption, thanks to telephoto lens, the camera can also be used on distance, but from the camera up close to the audio source is a microphone cable and restricts the freedom of movement of the camera man enormously a
- The KA-10/1 PACK puts an end to
- This text is machine translated.
Technical specifications
- Carrier frequency: 863-865 MHz
- Transmission power:
- HF-signal-to-noise ratio:
- Audio range: 40-18000 Hz
- Dynamic: -
- Distortion factor:< 1%
- Audio output: 300 mV/7 kOhm (jack)
- Range: approx. 60 m
- Permissible operating temperature: 0-40°C
- Power supply:
- Transmitter: 3.7 V lithium ion battery
- Receiver: 3.7 V lithium ion battery
- Dimensions:
- Transmitter: 55 x 100 x 18 mm
- Receiver: 55 x 100 x 18 mm
- Weight
- Transmitter: 80 g
- Receiver: 82 g
- Connections: 1 x 3.5 mm jack (Transmitter) 1 x 3.5 mm jack (receiver)
- Product type
Camera microphone
- Type
Clip
- Transfer type
Radio
- Features
Switch
- Weight
82 g
- Width
55 mm
- Height
100 mm
- Length
100 mm
- Dim
(L x W x H) 100 x 55 x 100 mm
- Interfaces
XLR
Microphone (3.5 mm jack)
- No. of transmitters
1
- Depth
18 mm
60 m
- Frequency
863 - 865 MHz
Documents & Downloads
Datasheet
Datasheet 1331842 Clip Camera microphone JTS KA-10/1PACK Transfer type (details):Radio Switch
User & Safety Instructions
User & Safety Instructions 1331842 Clip Camera microphone JTS KA-10/1PACK Transfer type (details):Radio Switch
Description
Features
- A live interview or animal consumption, thanks to telephoto lens, the camera can also be used on distance, but from the camera up close to the audio source is a microphone cable and restricts the freedom of movement of the camera man enormously. The KA -10/1 PACK makes no longer!
- The transmission system consists of a portable audio transmitter including lavalier microphone, which is positioned in the vicinity of the audio source and a portable receiver, which with the help of the accompanying fixing shoe simply attached to the camera. The Audio Connection to the camera is supplied with the enclosed connecting cables.
- Transmitter and receiver with an extremely compact lithium-ion rechargeable battery. The guaranteed weight savings and long running times.
- A dual charger makes charging the batteries without having to remove. Extensive protective circuits, monitor the operational status of batteries.
- Further details: the portable transmitter can also be used for the transfer of line signals (adjustment via recessed gain adjuster).
- The receiver has a 3-stage PAD switch (0 dB / -10 dB/-20 dB) for optimum level adjustment to the audio input of the camera.
- The transmitter and the receiver are equipped with a sturdy metal clamp, the many mounting options for use.
- The KA -10/1 PACK works in the registration and license-free frequency range of 863-865 MHz!
- Delivery including lavalier microphone in skin look with wind protection and tie clip, mounting lug for camera installation, trim key, double charging tray with plug-in switched-mode power supply, connection cable with 3.5 mm jack plug to 3.5 mm stereo jack connection cable 3.5 mm jack plug-XLR plug
- Free registration and in the EU. Camera not included.
Scope of delivery
- Tie microphone
- Belt clip
- Tie clamp
- Mounting shoe for camera mounting
- Trim key
- Double charging cradle
- Plug switched power supply
