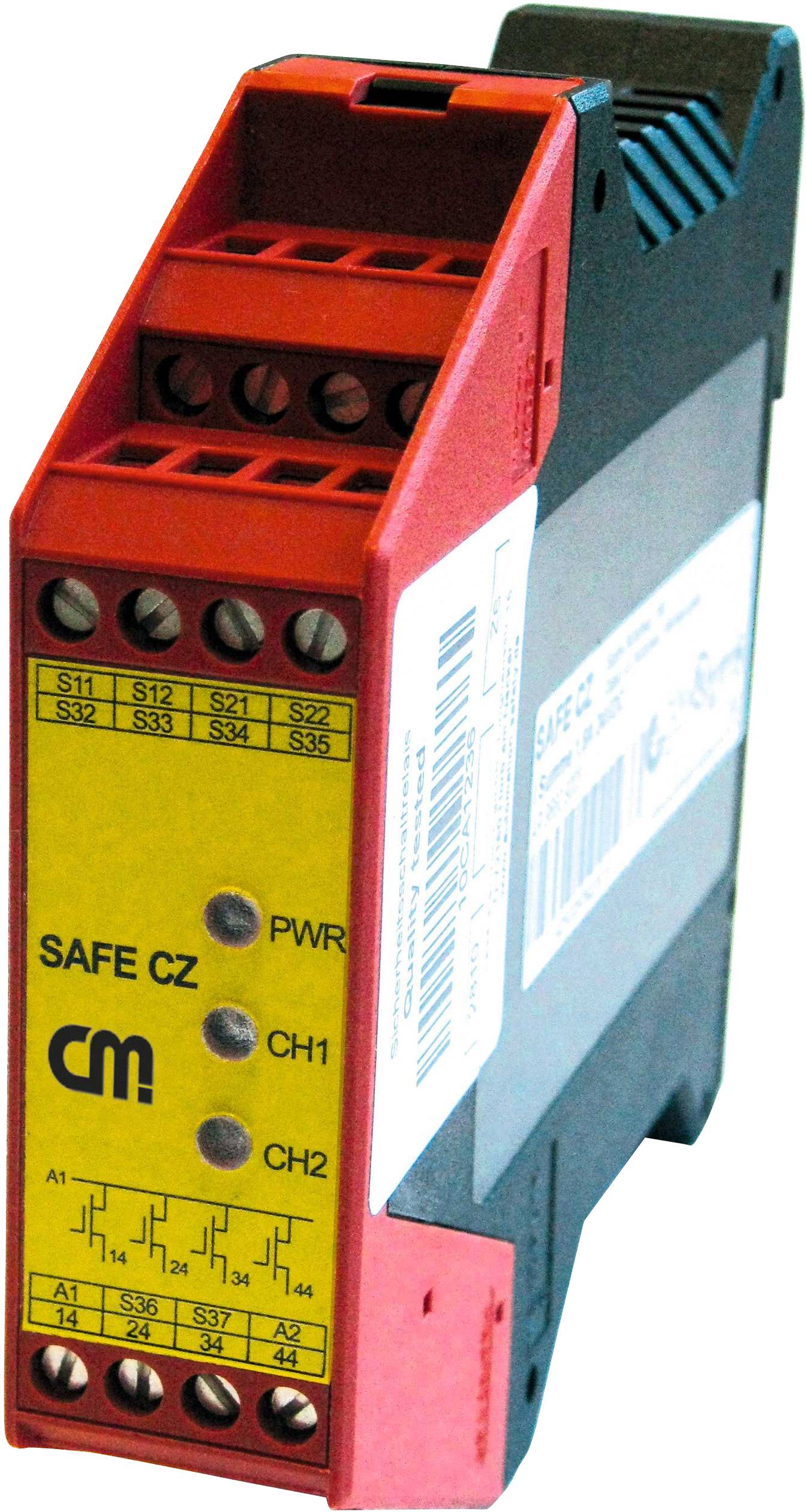

CM Manufactory Serial device SAFE CZ 24 V DC Safety class: 4
Product type
Serial device
Type
SAFE CZ
Operating voltage
24 V DC
Switching current (max.)
1.8 A
Certification (sensors)
UL
TÜV
CE
cUL
EAN:
Part number:
Item no:
Number
Total (€ 389.00 / piece)
€ 389.00
incl. VAT
14-day return policy included
Highlights & Details
Two-hand control relays for Type II or IIIc
- Autostart possible
- Wear-free contacts
Technical specifications
- Safety category: 4
- Performance level: PL e
- Safety Integrity Level: SIL 3
- Type (general): Safety relay
- Certification: TUV/CE/UL/cUL
- Product type
Serial device
- Type
SAFE CZ
- Operating voltage
24 V DC
- Switching current (max.)
1.8 A
- Certification (sensors)
UL
TÜV
CE
cUL
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Safety class
4
- Content
1 pc(s)
- Min. temperature
-25 °C
- Max. temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2226799 CM Manufactory Serial device SAFE CZ 24 V DC Safety class: 4
Conformity certificate
Conformity certificate 2226799 CM Manufactory Serial device SAFE CZ 24 V DC Safety class: 4
Description
Autostart possible · Wear-free ContactThe Safe C-Family module eliminates the use of mechanical contacts and uses a fully electronically controlled module in the microcontroller and safe semiconductor outputs to assume the function of the conventional relay circuit. The device offers the option of logically linking two or more devices together. Thus, several safety functions of a machine can be combined wear-free using a logical "AND" logic operation. In addition, the module has different start-up modes and cross-circuit protection.
This text is machine translated.
This text is machine translated.
