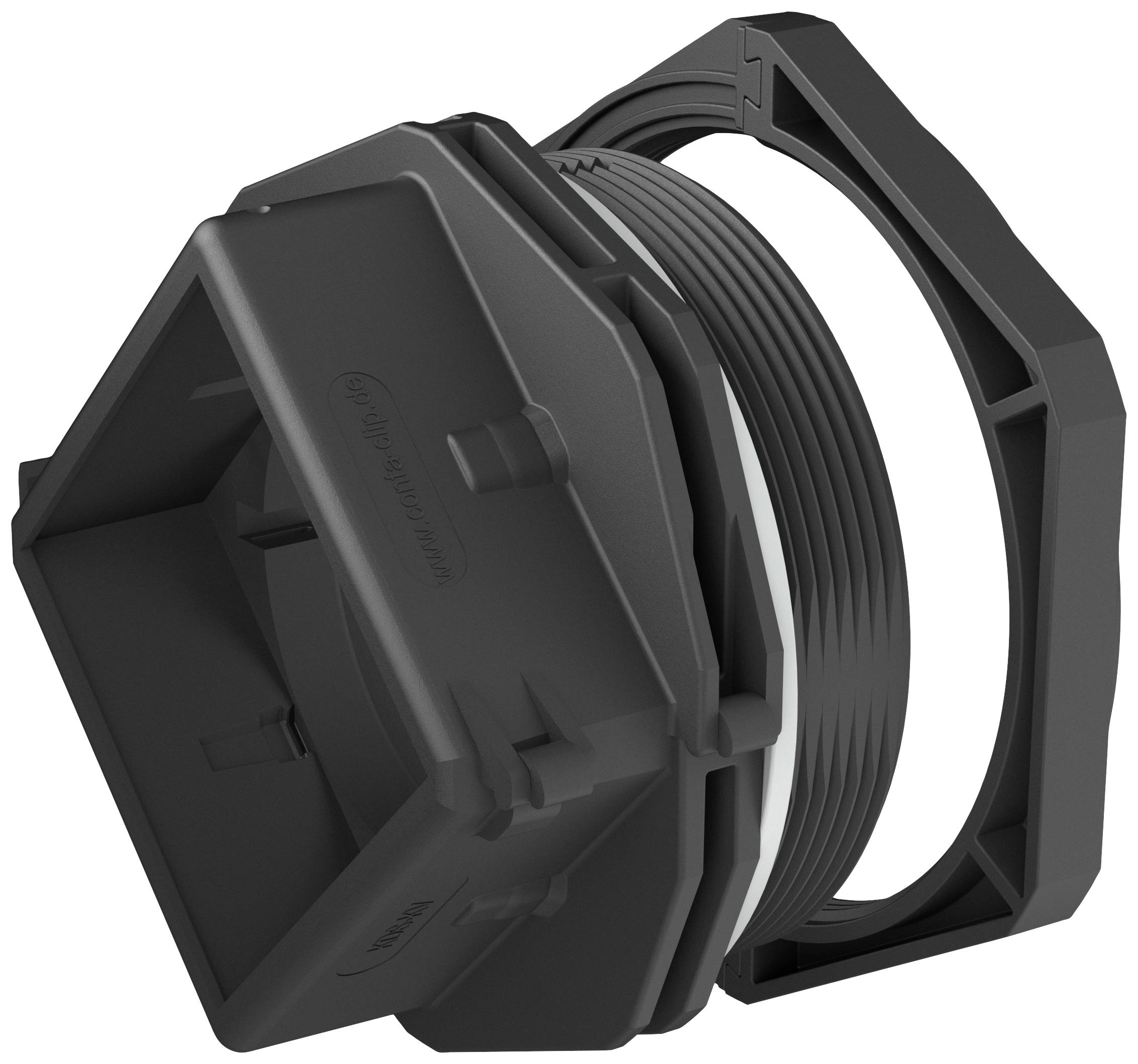

CONTA-CLIP 28613.4 Cable gland with locknut, with seal, with strain relief M40 Polyamide 6.6 Black 5 pc(s)
Product type
Cable gland
External thread
M40
Material
Polyamide 6.6
Features
with locknut
with seal
with strain relief
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 5 pc(s))
Total (€ 8.60 / piece)
€ 42.99
incl. VAT
Only 1 Set(s) available
Highlights & Details
Cable gland
Our service for you
Technical specifications
- Product type
Cable gland
- Features
with locknut
with seal
with strain relief
- Factory colour
Black
- External thread
M40
- Torque
7 Nm
- Material
Polyamide 6.6
- Thread length
15 mm
- Length
72 mm
- Width
72 mm
- Height
39.7 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Spanner size
68 mm
- Halogen-free
Yes
- Content
5 pc(s)
- Dim

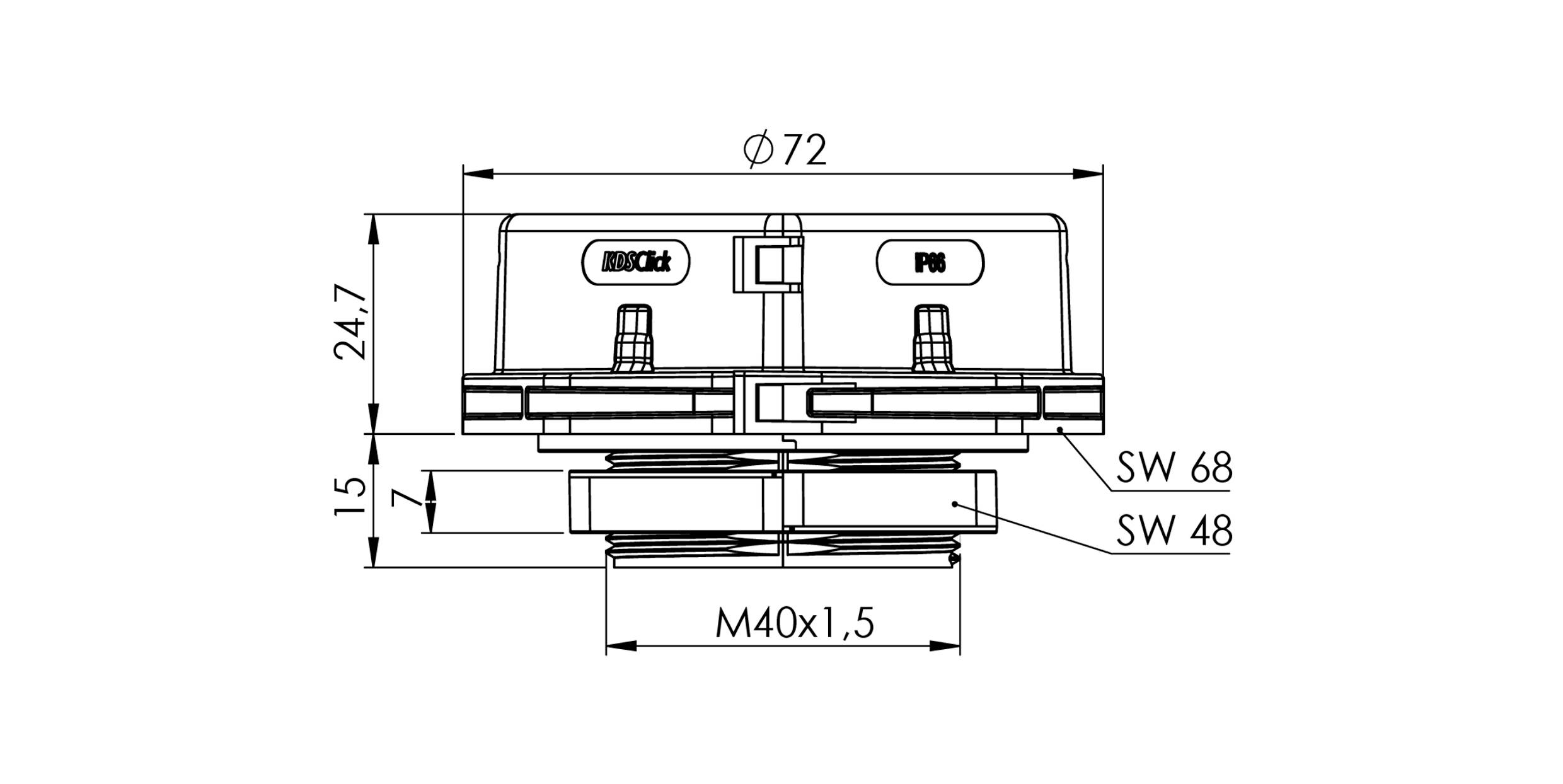

(L x W x H) 72 x 72 x 39.7 mm
- RoHS-compliant
Yes
- Manufacturer part #
28613.4
- Type
KDS-KV M40 BK
Documents & Downloads
Datasheet
Datasheet 2617540 CONTA-CLIP 28613.4 Cable gland with locknut, with seal, with strain relief M40 Polyamide 6.6 Black 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2617540 CONTA-CLIP 28613.4 Cable gland with locknut, with seal, with strain relief M40 Polyamide 6.6 Black 5 pc(s)
Description
Cable gland, thread type: Metric, material: PA 6.6, protection class: IP66, color: Black
