CONTA-CLIP KDS-DE-FB4/A GR Sealing with strain relief Thermoplastic elastomer Grey 1 pc(s)
Product type
Sealing
Features
with strain relief
Material
Thermoplastic elastomer
Factory colour
Grey
Length
109.3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

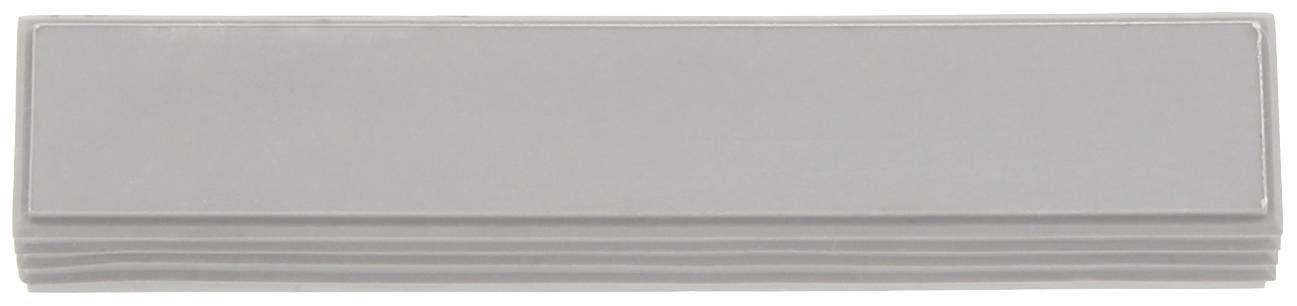

KDS-DE-FB4/A GR blind sealing element
Our service for you
Technical specifications
- Flammability class UL 94 V-0
- Mounting type: Plug
- RAL: Simultaneous to 7035
- Strain relief: Yes
- Product type
Sealing
- Features
with strain relief
- Factory colour
Grey
- Material
Thermoplastic elastomer
- Length
109.3 mm
- Width
20.3 mm
- Height
17.7 mm
- Dim
(L x W x H) 109.3 x 20.3 x 17.7 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28727.6
- Type
KDS-DE-FB4/A GR
- RoHS-compliant
Yes
- Material properties
silicone-free
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210636 CONTA-CLIP KDS-DE-FB4/A GR Sealing with strain relief Thermoplastic elastomer Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3210636 CONTA-CLIP KDS-DE-FB4/A GR Sealing with strain relief Thermoplastic elastomer Grey 1 pc(s)
Description
Blind seal, installation type: Insert, length 109.3 mm, width: 20.3 mm, IP66, Colour: gray
