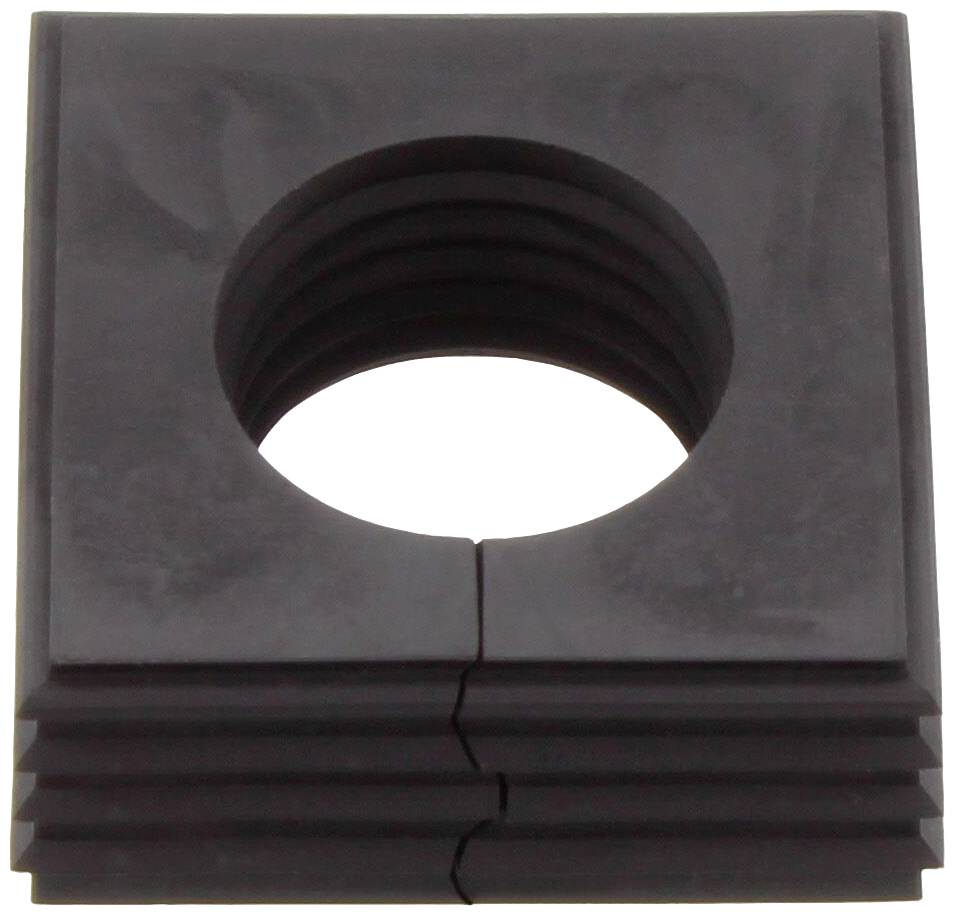

CONTA-CLIP KDS-DEG 24-25 BK Sealing Plug Terminal Ø (max.) 25 mm Thermoplastic elastomer Black 1 pc(s)
Product type
Sealing
Features
Plug
Material
Thermoplastic elastomer
Clamp Ø
24 mm
Terminal Ø (max.)
25 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KDS-DEG 24-25 BK SEALING ELEMENT
Our service for you
Technical specifications
- Number of lines: 1
- Flammability class UL 94 HB
- DIN: Strain relief according to DIN EN 62444
- for cable diameter up to 25 mm.
- Cable diameter min.: 24 mm
- Mounting type: Plug
- RAL 9005
- UV-stabilized: Yes
- Strain relief: Yes
- Product type
Sealing
- Features
Plug
- Factory colour
Black
- Material
Thermoplastic elastomer
- Length
42.8 mm
- Width
42.8 mm
- Height
17.7 mm
- Dim
(L x W x H) 42.8 x 42.8 x 17.7 mm
- Clamp Ø
24 mm
- Terminal Ø (max.)
25 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28545.4
- Type
KDS-DEG 24-25 BK
- RoHS-compliant
Yes
- Material properties
silicone-free
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210625 CONTA-CLIP KDS-DEG 24-25 BK Sealing Plug Terminal Ø (max.) 25 mm Thermoplastic elastomer Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3210625 CONTA-CLIP KDS-DEG 24-25 BK Sealing Plug Terminal Ø (max.) 25 mm Thermoplastic elastomer Black 1 pc(s)
Description
Sealing element, mounting type: Insert, length x width: 42.8 mm, cable diameter max.: 25 mm, IP66, color: Black
