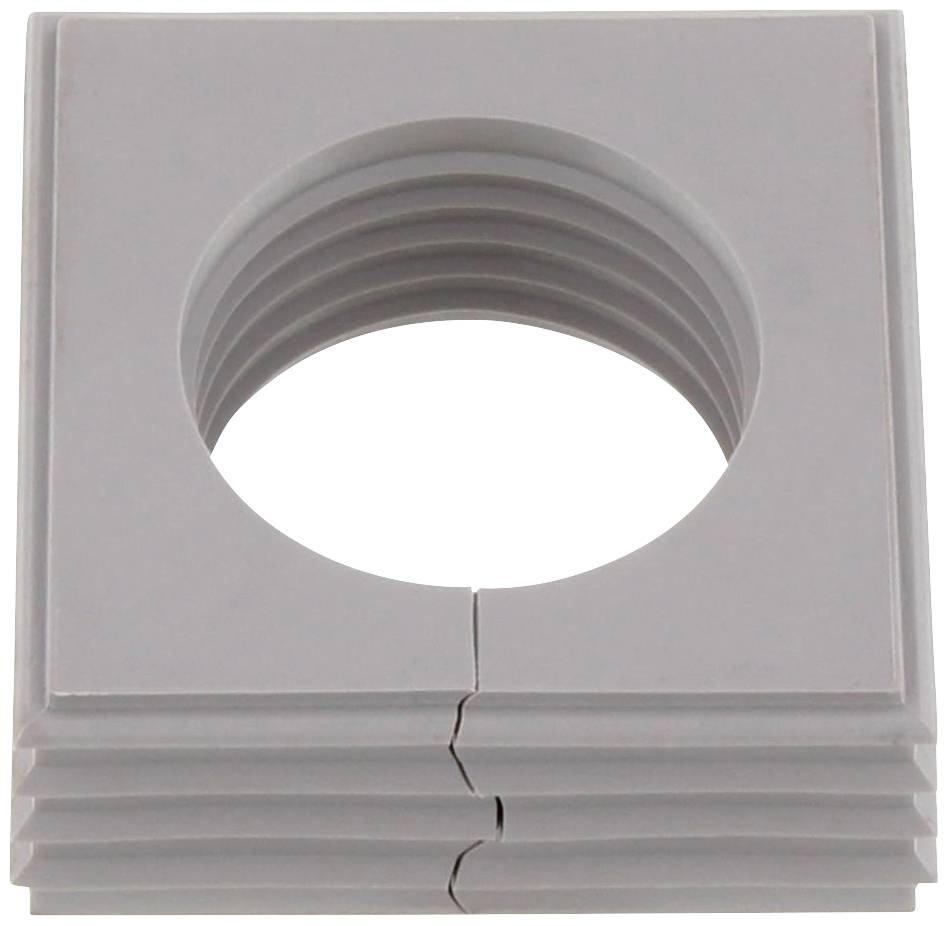

CONTA-CLIP KDS-DEG 27-28 GR Sealing Terminal Ø (max.) 28 mm Thermoplastic elastomer Grey 1 pc(s)
Product type
Sealing
Material
Thermoplastic elastomer
Clamp Ø
27 mm
Terminal Ø (max.)
28 mm
Factory colour
Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KDS-DEG 27-28 GR SEALING ELEMENT
Our service for you
Technical specifications
- Number of lines: 1
- Flammability class UL 94 V-0
- DIN: Strain relief according to DIN EN 62444
- for cable diameter up to 28 mm.
- Cable diameter min.: 27 mm
- Mounting type: Plug
- RAL: Similar to 7035
- UV-stabilized: No.
- Strain relief: Yes
- Product type
Sealing
- Factory colour
Grey
- Material
Thermoplastic elastomer
- Clamp Ø
27 mm
- Terminal Ø (max.)
28 mm
- Length
42.8 mm
- Width
42.8 mm
- Height
17.7 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 42.8 x 42.8 x 17.7 mm
- RoHS-compliant
Yes
- Manufacturer part #
28589.6
- Type
KDS-DEG 27-28 GR
- Material properties
silicone-free
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210602 CONTA-CLIP KDS-DEG 27-28 GR Sealing Terminal Ø (max.) 28 mm Thermoplastic elastomer Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3210602 CONTA-CLIP KDS-DEG 27-28 GR Sealing Terminal Ø (max.) 28 mm Thermoplastic elastomer Grey 1 pc(s)
Description
Sealing element, mounting type: Insert, length x width: 42.8 mm, cable diameter max.: 28 mm, IP66, color: Grey
