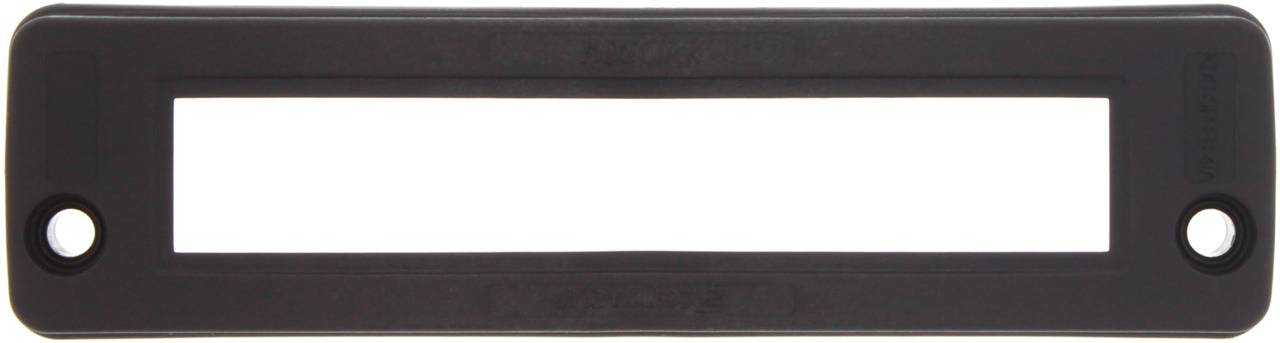

CONTA-CLIP KDS-SR-FB4/A BK Cable grommet with seal, screw fixing Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(
Product type
Cable grommet
Features
with seal
screw fixing
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KDS-SR-FB4/A BK CABLE GLAND
Our service for you
Technical specifications
- Number of bolt holes: 2
- Building height 18.9 mm
- Width of wall cut-out 24 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Torque of mounting screws: 3 Nm
- Diameter of screw holes: 5.5 mm
- Length of wall cut-out 110 mm
- Mounting type: Screws
- RAL 9005
- Product type
Cable grommet
- Features
with seal
screw fixing
- Factory colour
Black
- Material
Polyamide 6.6
- Length
147 mm
- Width
39 mm
- Height
19 mm
- Dim
(L x W x H) 147 x 39 x 19 mm
- Mounting hole
M5
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28707.4
- Type
KDS-SR-FB4/A BK
- RoHS-compliant
Yes
- Material properties
fibreglass-reinforced
silicone-free
- Mounting hole diameter
5.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210657 CONTA-CLIP KDS-SR-FB4/A BK Cable grommet with seal, screw fixing Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(
User & Safety Instructions
User & Safety Instructions 3210657 CONTA-CLIP KDS-SR-FB4/A BK Cable grommet with seal, screw fixing Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(
Description
Cable entry with molded seal, installation type: Screws, length: 147 mm, width: 39 mm, IP66, Colour: black
