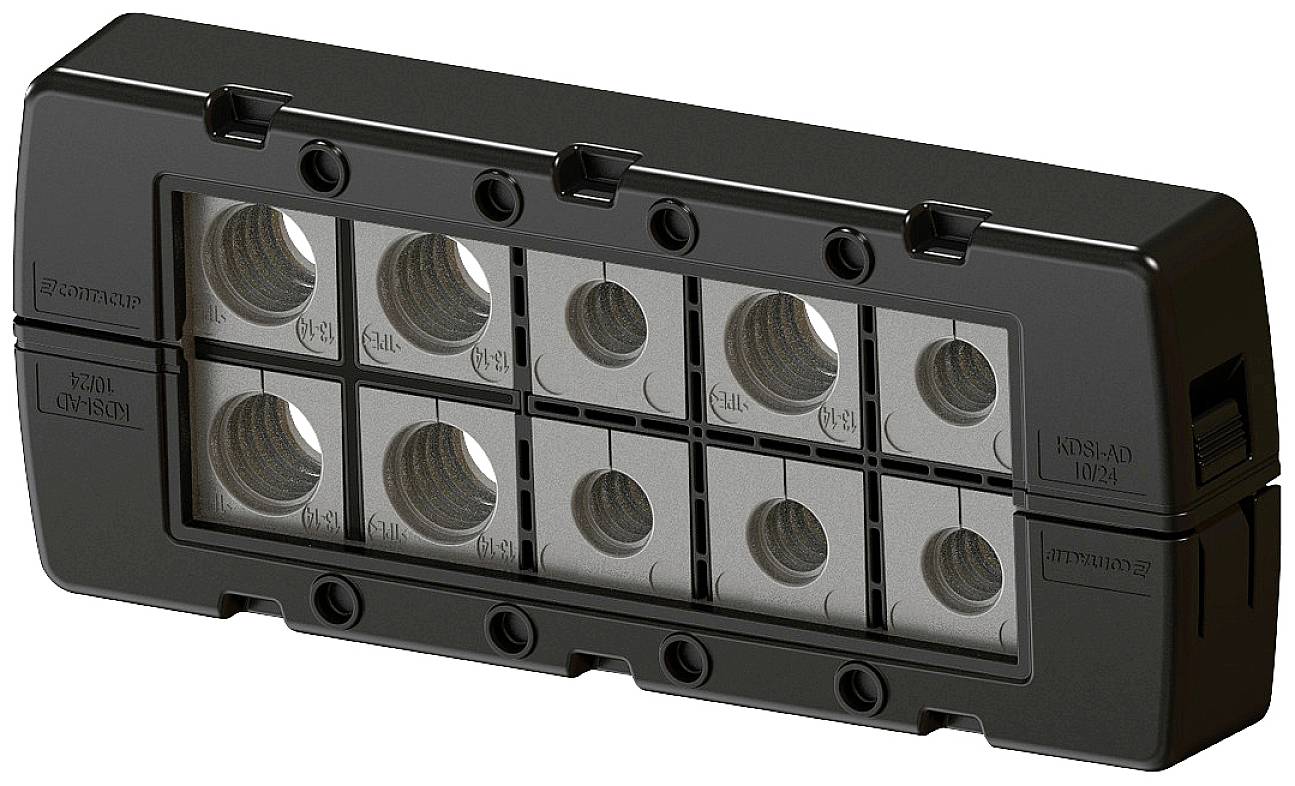

CONTA-CLIP KDSI-SET 10/24 BK Cable grommet waterproof Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)
Product type
Cable grommet
Features
waterproof
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Cable bushing set
Our service for you
Technical specifications
- Distance of wall cut-outs min.: 70Number of screw holes: 4Building height 24.2 mmWidth of wall cut-out: 36 mmFlammability class UL 94: V-0Sealing material TPETightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 112 mmMounting type: ScrewsMounting instructions: Also suitable for mounting on extended wall openings 113.5 mm x 46 mm.RAL 9005
- Product type
Cable grommet
- Features
waterproof
- Factory colour
Black
- Material
Polyamide 6.6
- Length
153 mm
- Width
64 mm
- Height
24.2 mm
- Dim
(L x W x H) 153 x 64 x 24.2 mm
- Mounting hole
M5
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28893.4
- Type
KDSI-SET 10/24 BK
- RoHS-compliant
Yes
- Material properties
fibreglass-reinforced
silicone-free
- Mounting hole diameter
5.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2617546 CONTA-CLIP KDSI-SET 10/24 BK Cable grommet waterproof Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2617546 CONTA-CLIP KDSI-SET 10/24 BK Cable grommet waterproof Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)
Description
Cable bushing set, IP66, consisting of: 1xKDSI-SR 10/24, each 1xKDS inlay 2.4.6
