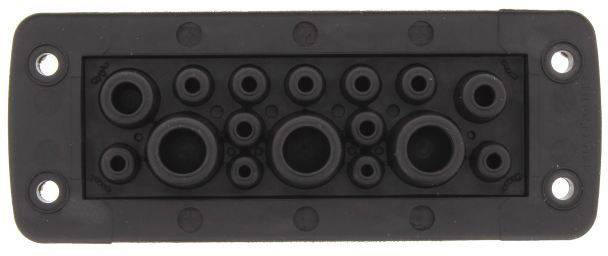

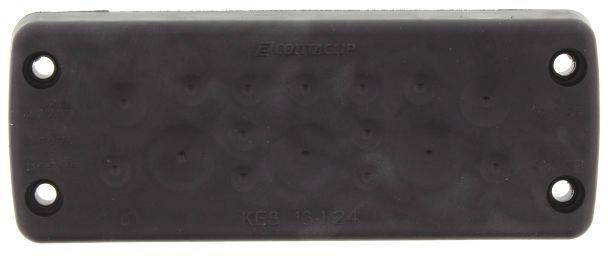

CONTA-CLIP KES 16-1/24 BK Cable router with mounting hole, with pierceable membrane, waterproof, screw fixing Mounting h
Product type
Cable router
Features
with mounting hole
with pierceable membrane
waterproof
screw fixing
Material
Polyamide 6.6
Clamp Ø
3.2 mm
Terminal Ø (max.)
16.2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KES 16-1/24 BK Cable entry with MEMBR
Our service for you
Technical specifications
- Number of lines: 16
- Number of cables for cable diameters 12.0 - 16.2 mm: 3
- Number of cables for cable diameters 3.2 - 6.3 mm: 2
- Number of cables for cable diameters 4.0 - 7.5 mm: 9
- Number of cables for cable diameters 5.5 - 10.5 mm: 1
- Number of cables for cable diameters 8.0 - 12.5 mm: 1
- Number of bolt holes: 4
- Building height 14.5 mm
- Width of wall cut-out 36 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Torque of mounting screws: 3 Nm
- Diameter of screw holes: 5.5 mm
- Length of wall cut-out 112 mm
- Mounting type: Screws
- RAL 9005
- Product type
Cable router
- Features
with mounting hole
with pierceable membrane
waterproof
screw fixing
- Factory colour
Black
- Material
Polyamide 6.6
- Length
149.6 mm
- Width
58 mm
- Height
14.5 mm
- Dim
(L x W x H) 149.6 x 58 x 14.5 mm
- Clamp Ø
3.2 mm
- Terminal Ø (max.)
16.2 mm
- Mounting hole
M5
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28633.4
- Type
KES 16-1/24 BK
- RoHS-compliant
Yes
- Material properties
fibreglass-reinforced
silicone-free
- Mounting hole diameter
5.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210496 CONTA-CLIP KES 16-1/24 BK Cable router with mounting hole, with pierceable membrane, waterproof, screw fixing Mounting h
User & Safety Instructions
User & Safety Instructions 3210496 CONTA-CLIP KES 16-1/24 BK Cable router with mounting hole, with pierceable membrane, waterproof, screw fixing Mounting h
Description
Cable inlet with membrane for unassembled cables, mounting type: Screws, length: 147 mm, width: 58 mm, IP66, Colour: black
