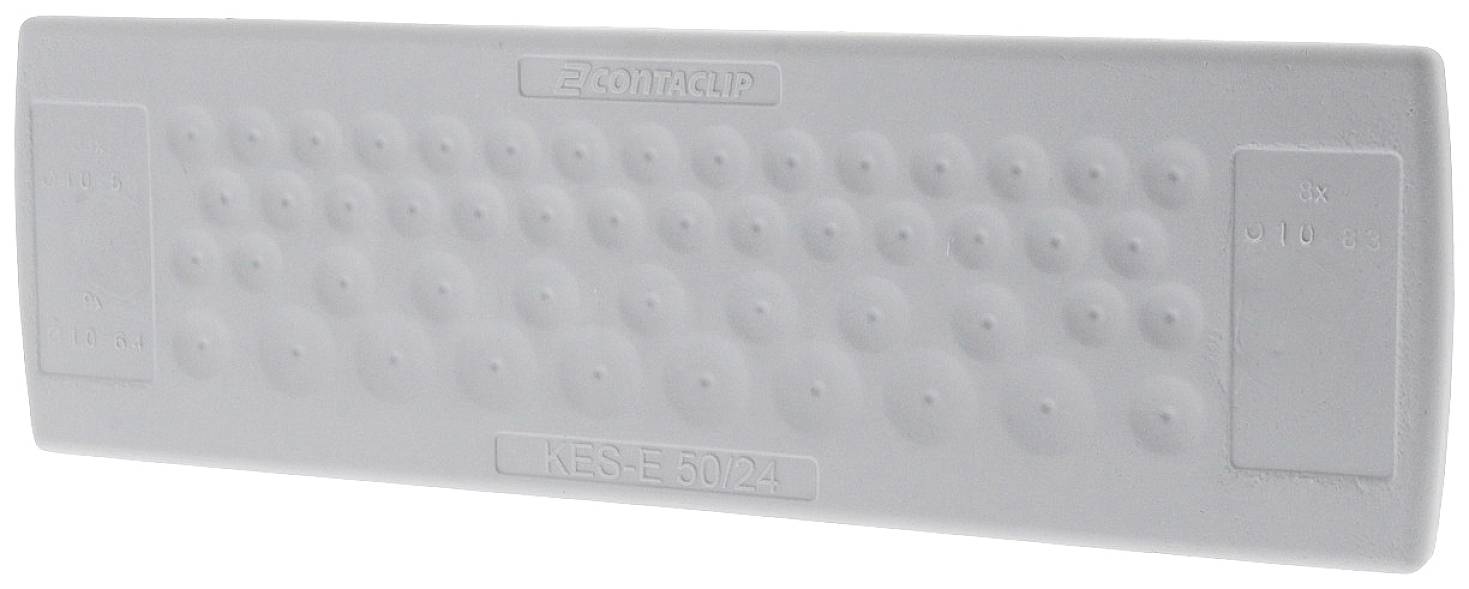

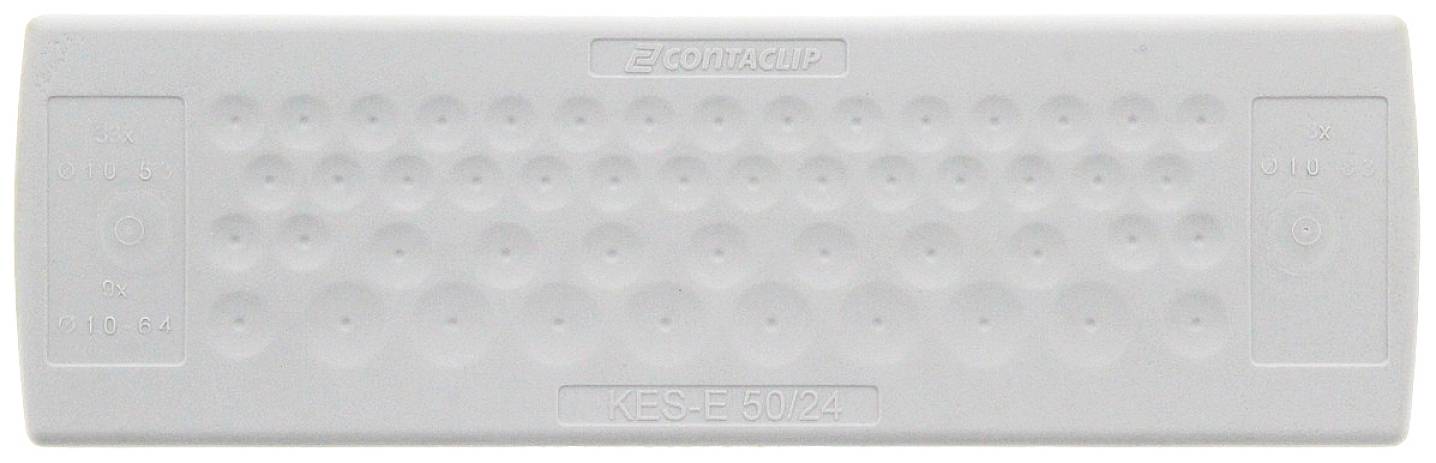

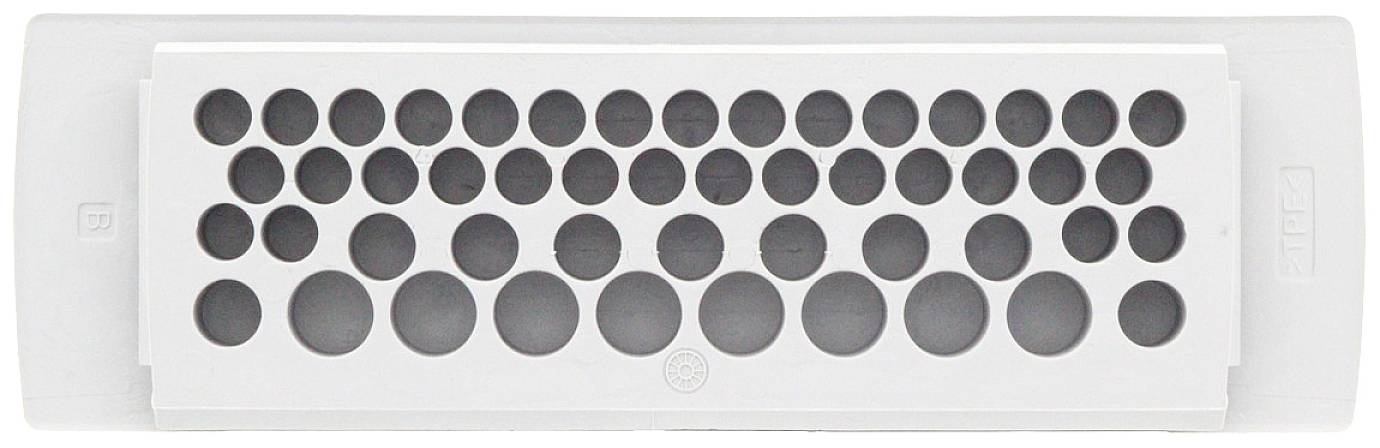

CONTA-CLIP KES-E 50/24 B GR Cable router with pierceable membrane Terminal Ø (max.) 8.3 mm Board thickness (max.) 4 mm T
Product type
Cable router
Features
with pierceable membrane
Material
Thermoplastic elastomer
Clamp Ø
1 mm
Terminal Ø (max.)
8.3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KES-E 50/24 B GR cable entry with Mem
Our service for you
Technical specifications
- Number of lines: 50
- Number of cables for cable diameters 1.0 - 5.3 mm: 33
- Number of cables for cable diameters 1.0 - 6.4 mm: 9
- Number of cables for cable diameters 1.0 - 8.3 mm: 8
- Building height 5 mm
- Maximum sheet thickness: 4 mm
- Min. Sheet thickness: 2.5 mm
- Width of wall cut-out 36 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Length of wall cut-out 112 mm
- Mounting type: Snap-in
- Product type
Cable router
- Features
with pierceable membrane
- Factory colour
Grey
- Material
Thermoplastic elastomer
- Length
142 mm
- Width
44 mm
- Height
12 mm
- Dim
(L x W x H) 142 x 44 x 12 mm
- Clamp Ø
1 mm
- Terminal Ø (max.)
8.3 mm
- Board thickness (max.)
4 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP54
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28848.6
- Type
KES-E 50/24 B GR
- RoHS-compliant
Yes
- Material properties
silicone-free
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210472 CONTA-CLIP KES-E 50/24 B GR Cable router with pierceable membrane Terminal Ø (max.) 8.3 mm Board thickness (max.) 4 mm T
User & Safety Instructions
User & Safety Instructions 3210472 CONTA-CLIP KES-E 50/24 B GR Cable router with pierceable membrane Terminal Ø (max.) 8.3 mm Board thickness (max.) 4 mm T
Description
Cable inlet with membrane for unassembled cables, mounting type: Catch, length: 142 mm, width: 44 mm, IP54, Colour: gray
