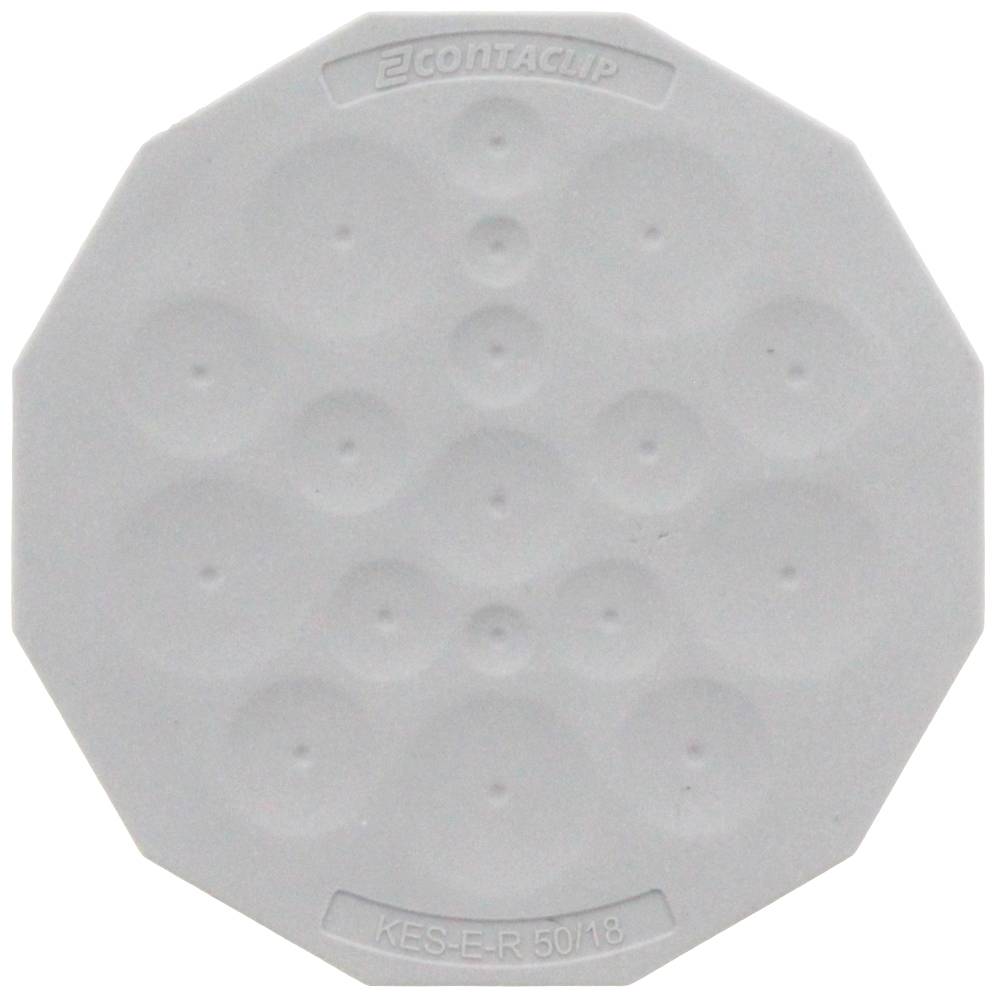

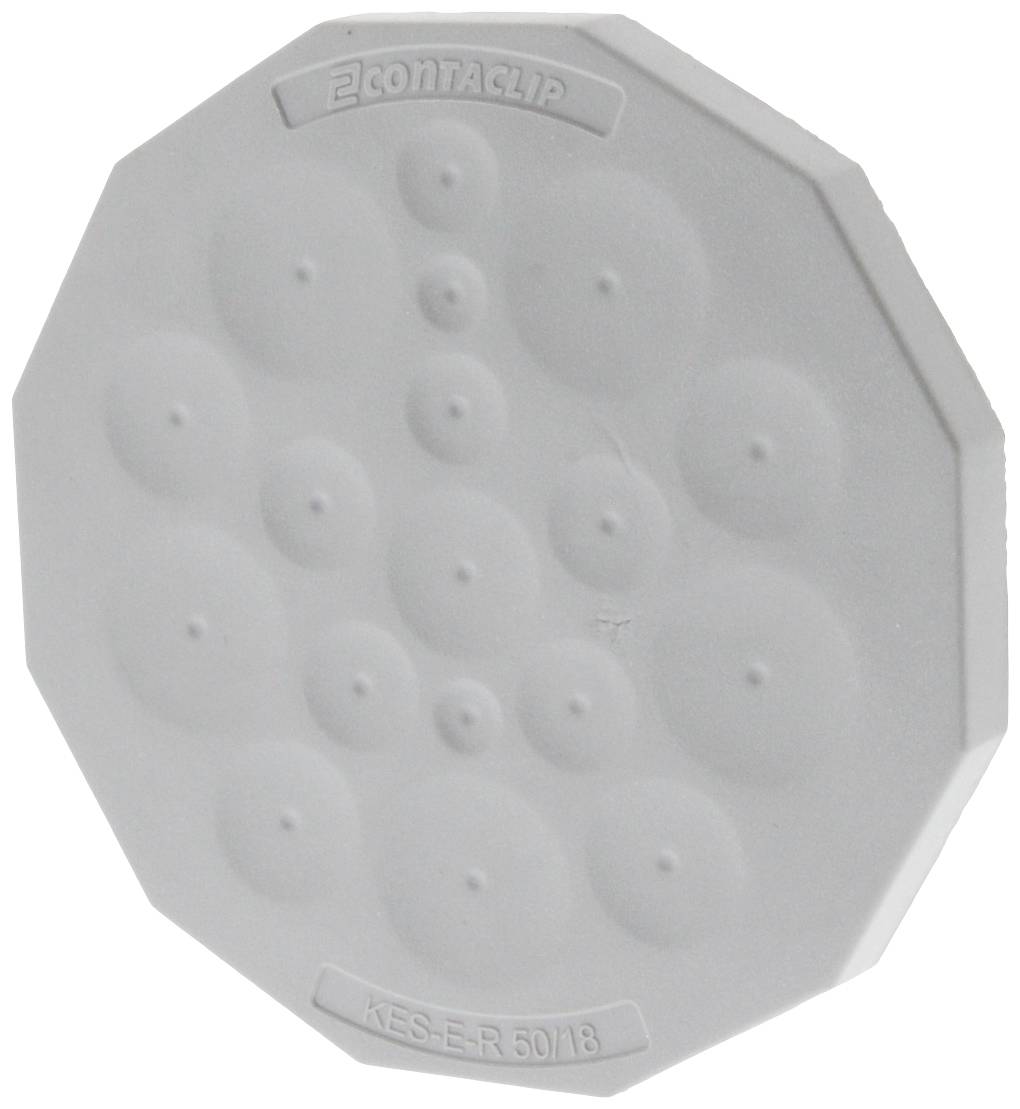

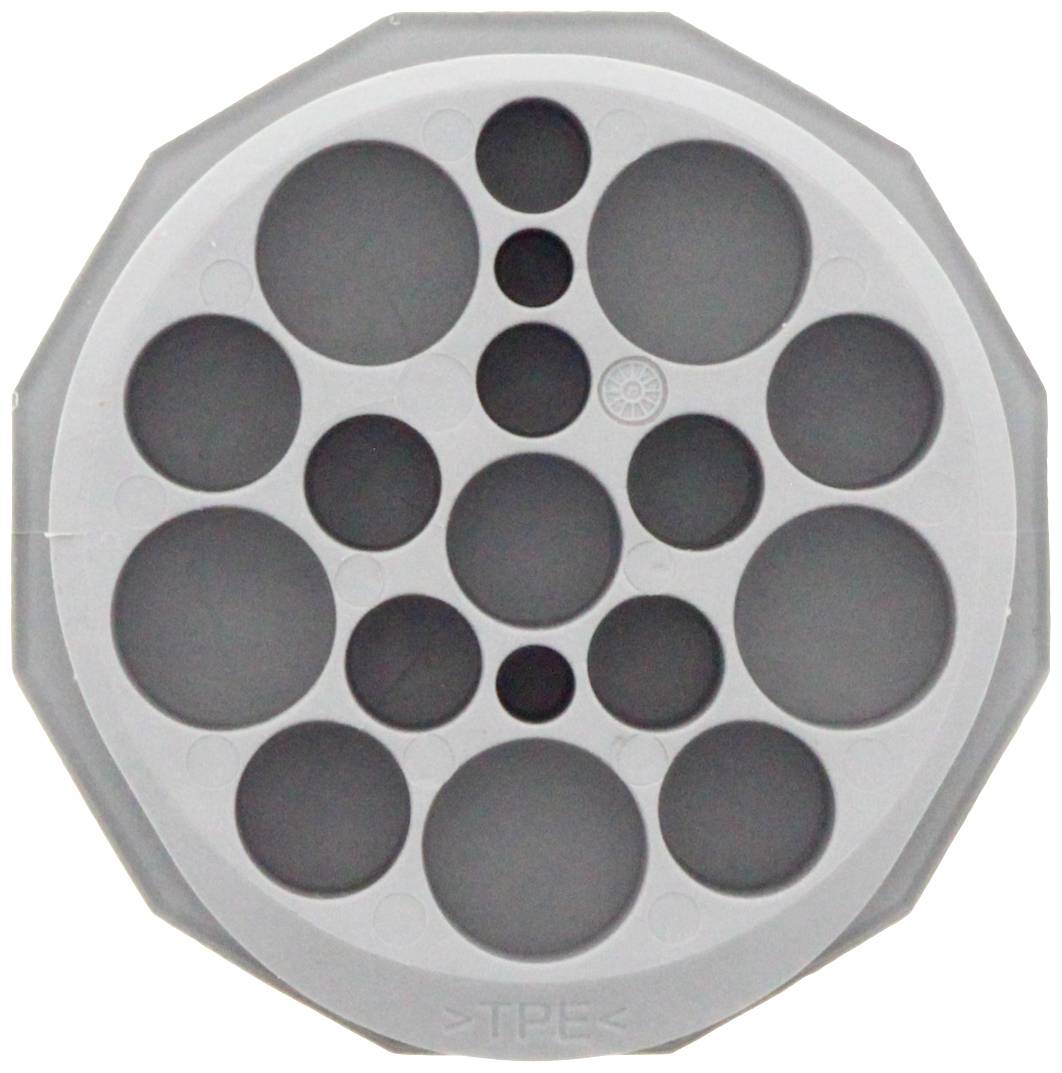

CONTA-CLIP KES-E-R 50/18 B GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 12.0
Product type
Cable router
Features
with pierceable membrane
Material
Thermoplastic elastomer
Clamp Ø
1.0 mm
Terminal Ø (max.)
12.0 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KES-E-R 50/18 B GR round cable entry
Our service for you
Technical specifications
- Number of lines: 18
- Number of cables for cable diameters 1.0 - 12.0 mm: 5
- Number of cables for cable diameters 1.0 - 4.0 mm: 2
- Number of cables for cable diameters 1.0 - 6.0 mm: 2
- Number of cables for cable diameters 1.0 - 7.2 mm: 4
- Number of cables for cable diameters 1.0 - 9.4 mm: 5
- Building height 5 mm
- Maximum sheet thickness: 4 mm
- Min. Sheet thickness: 2.5 mm
- Width of wall cut-out 50 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Length of wall cut-out 50 mm
- Mounting type: Snap-in
- RAL: Similar to 7035
- Product type
Cable router
- Features
with pierceable membrane
- Factory colour
Grey
- Material
Thermoplastic elastomer
- Length
57.96 mm
- Width
57.96 mm
- Height
12 mm
- (Ø)
60 mm
- Dim
(Ø x H) 60 mm x 12 mm
- Clamp Ø
1.0 mm
- Terminal Ø (max.)
12.0 mm
- Mounting hole
M50
- Board thickness (max.)
4 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP54
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28863.6
- Type
KES-E-R 50/18 B GR
- RoHS-compliant
Yes
- Material properties
silicone-free
- Mounting hole diameter
50 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210452 CONTA-CLIP KES-E-R 50/18 B GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 12.0
User & Safety Instructions
User & Safety Instructions 3210452 CONTA-CLIP KES-E-R 50/18 B GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 12.0
Description
Round cable entry M50 with diaphragm for non-assembled cables, mounting method: Tabs, length: 60 mm, width: 60 mm, IP54, Colour: gray
