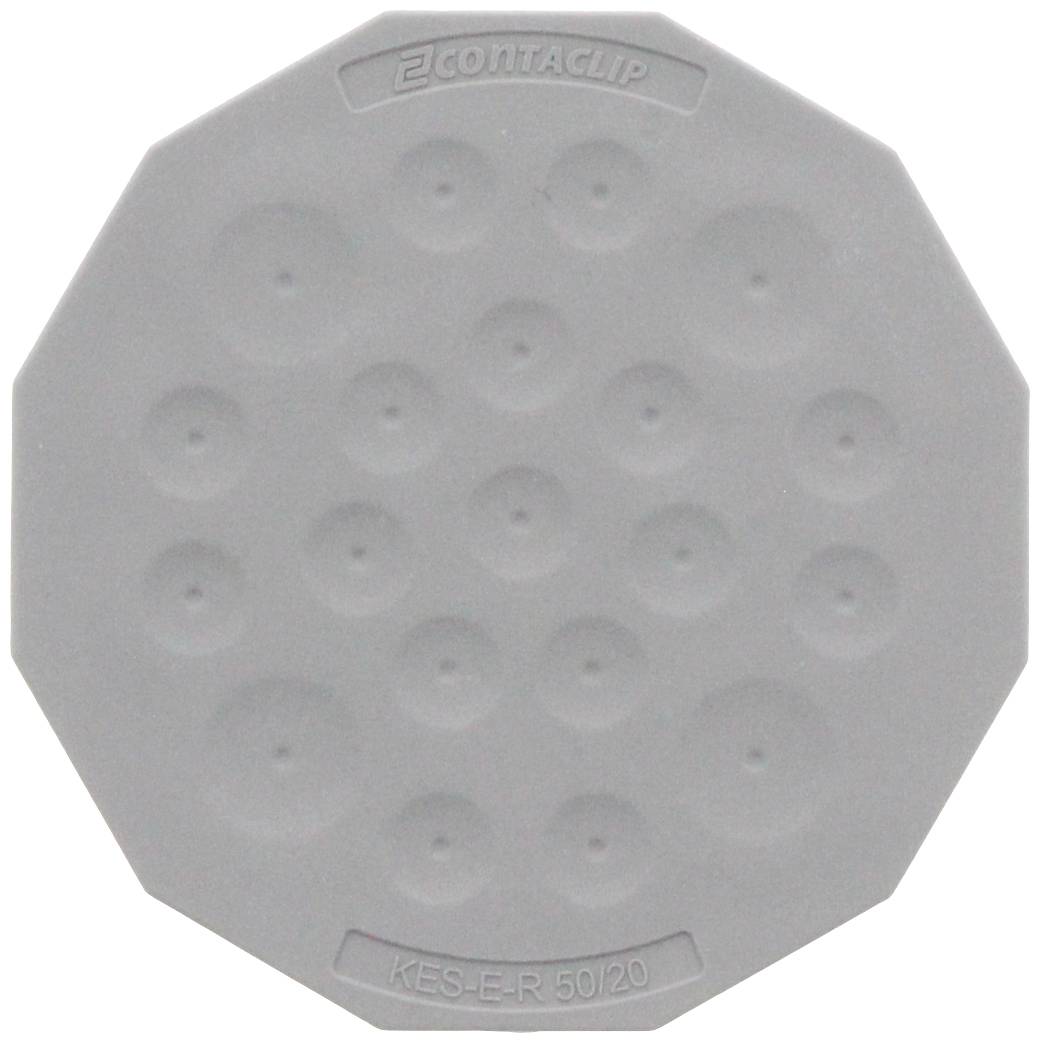

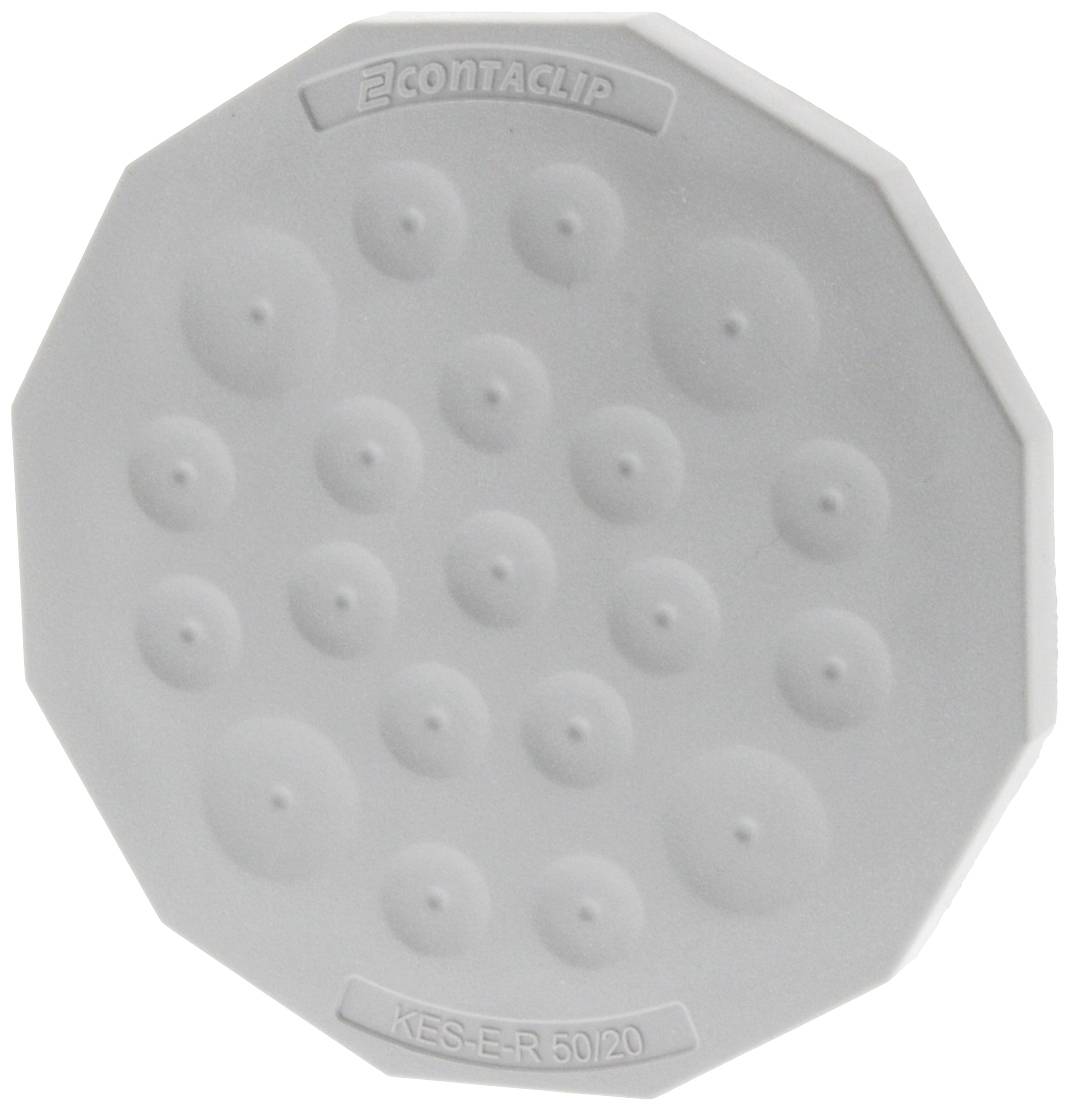

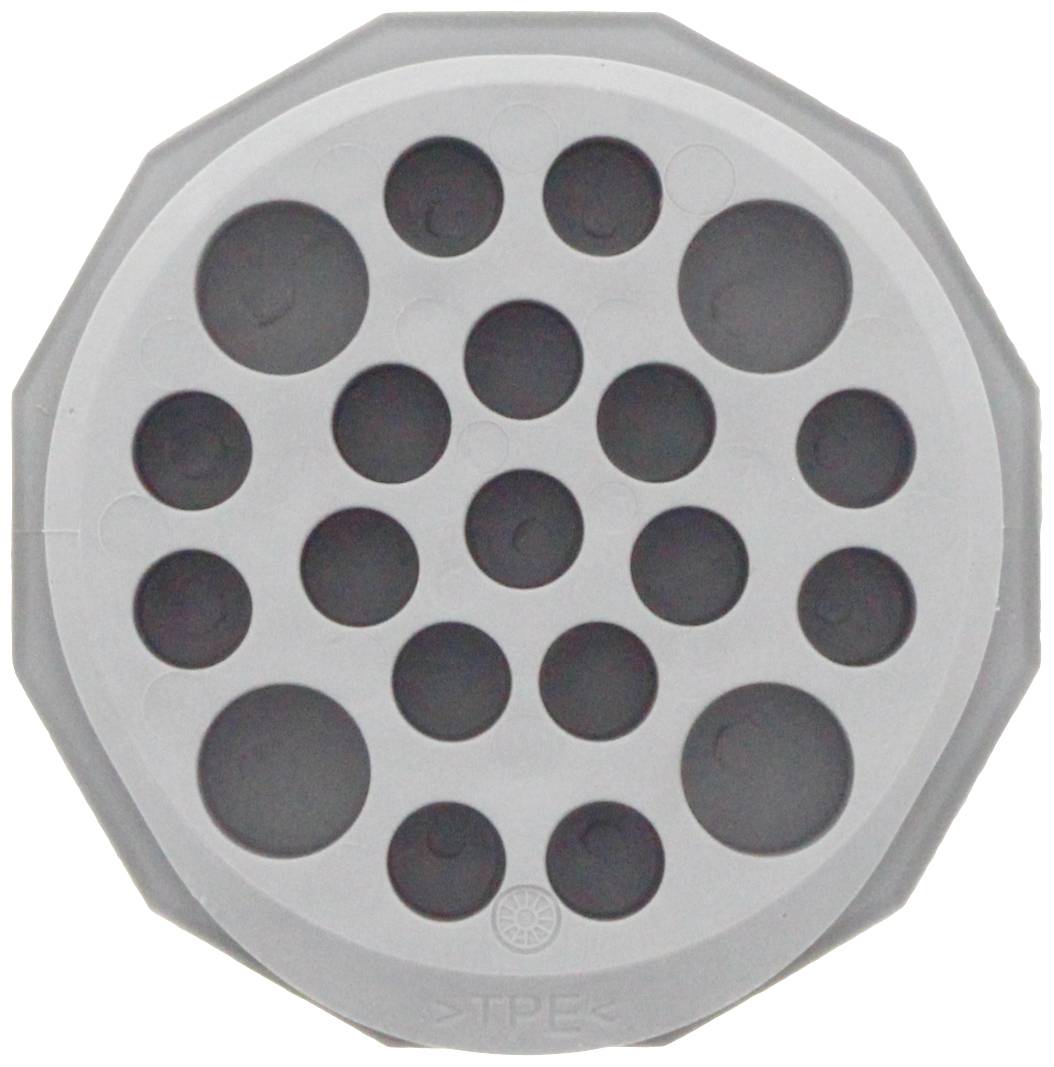

CONTA-CLIP KES-E-R 50/20 A GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 9.3 m
Product type
Cable router
Features
with pierceable membrane
Material
Thermoplastic elastomer
Clamp Ø
1.0 mm
Terminal Ø (max.)
9.3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KES-E-R 50/20 A GR round cable entry
Our service for you
Technical specifications
- Number of lines: 20
- Number of cables for cable diameters 1.0 - 6.3 mm: 16
- Number of cables for cable diameters 1.0 - 9.3 mm: 4
- Building height 5 mm
- Maximum sheet thickness: 2.5 mm
- Min. Sheet thickness: 1.5 mm
- Width of wall cut-out 50 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Length of wall cut-out 50 mm
- Mounting type: Snap-in
- RAL: Similar to 7035
- Product type
Cable router
- Features
with pierceable membrane
- Factory colour
Grey
- Material
Thermoplastic elastomer
- Length
57.96 mm
- Width
57.96 mm
- Height
12 mm
- Dim
(L x W x H) 57.96 x 57.96 x 12 mm
- Clamp Ø
1.0 mm
- Terminal Ø (max.)
9.3 mm
- Mounting hole
M50
- Board thickness (max.)
2.5 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP54
- Weight
0.0220 kg
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28834.6
- Type
KES-E-R 50/20 A GR
- RoHS-compliant
Yes
- Material properties
silicone-free
- Mounting hole diameter
50 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210446 CONTA-CLIP KES-E-R 50/20 A GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 9.3 m
User & Safety Instructions
User & Safety Instructions 3210446 CONTA-CLIP KES-E-R 50/20 A GR Cable router with pierceable membrane Mounting hole diameter 50 mm Terminal Ø (max.) 9.3 m
Description
Round cable entry M50 with diaphragm for non-assembled cables, mounting method: Tabs, length: 60 mm, width: 60 mm, IP54, Colour: gray
