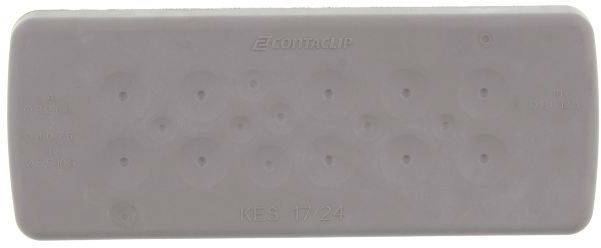

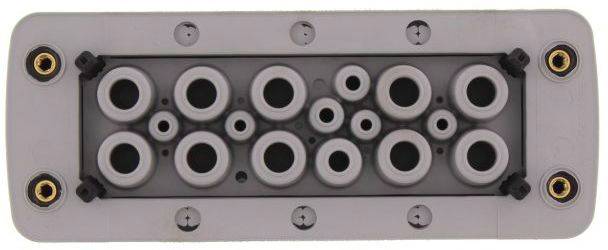

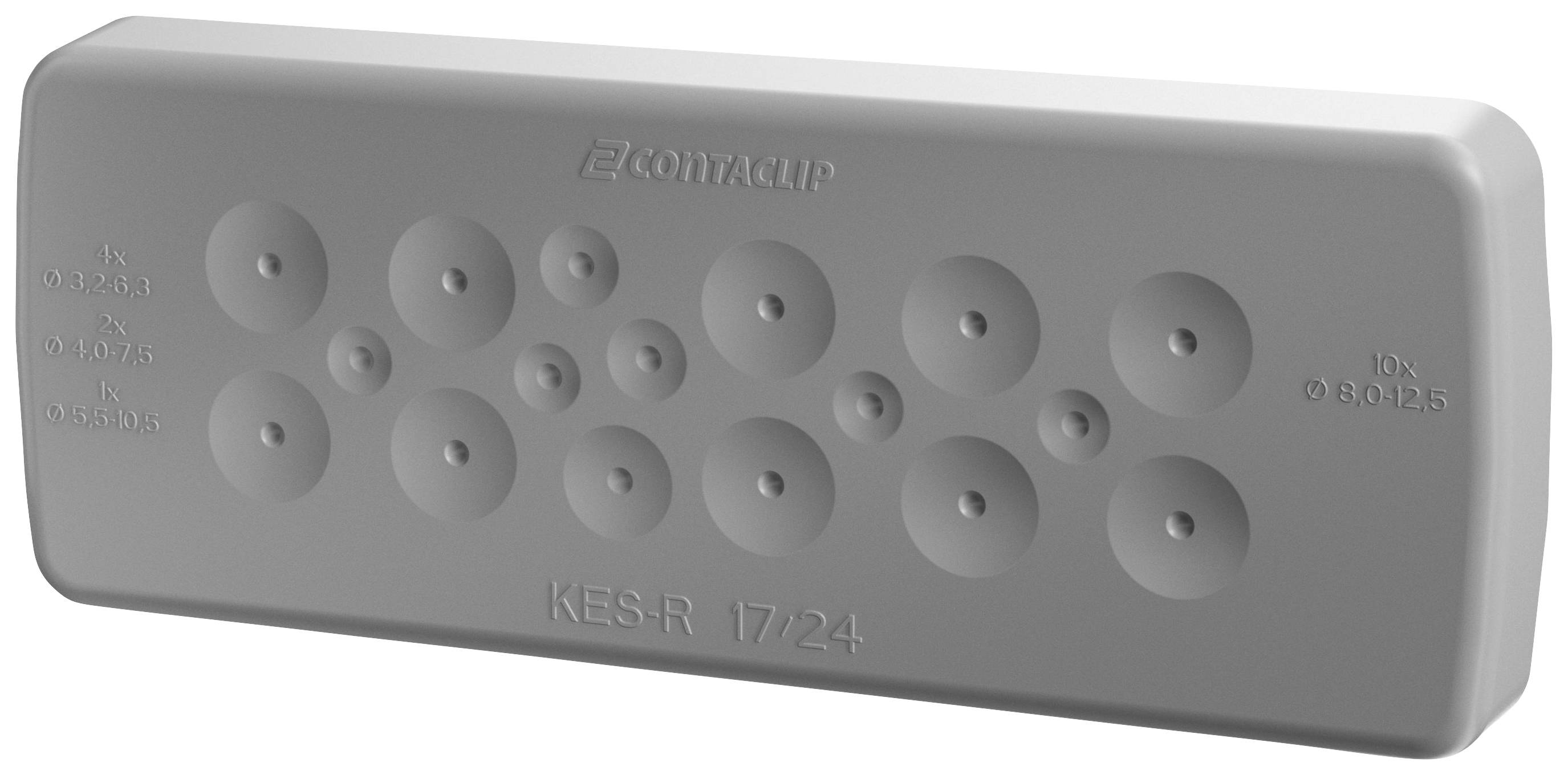

CONTA-CLIP KES-GB 17/24 GR Cable router Board thickness (max.) 2 mm Polyamide 6.6 Grey 1 pc(s)
Product type
Cable router
Material
Polyamide 6.6
Mounting hole
M4
Factory colour
Grey
Length
149.6 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
KES-GB 17/24 GR cable entry with memb
Our service for you
Technical specifications
- Number of lines: 17
- Number of cables for cable diameters 3.2 - 6.3 mm: 4
- Number of cables for cable diameters 4.0 - 7.5 mm: 2
- Number of cables for cable diameters 5.5 - 10.5 mm: 1
- Number of cables for cable diameters 8.0 - 12.5 mm: 10
- Number of bolt holes: 4
- Building height 14.5 mm
- Maximum sheet thickness: 2 mm
- Min. Sheet thickness: 1.5 mm
- Width of wall cut-out 36 mm
- Flammability class UL 94 V-0
- Seal material TPE
- Torque of mounting screws: 3 Nm
- Length of wall cut-out 112 mm
- Mounting type: Locking and screws
- RAL: Similar to 7035
- Product type
Cable router
- Factory colour
Grey
- Material
Polyamide 6.6
- Length
149.6 mm
- Width
58 mm
- Dim
(L x W) 149.6 mm x 58 mm
- Mounting hole
M4
- Board thickness (max.)
2 mm
- Min. temperature
-40 °C
- Max. temperature
+90 °C
IP66
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
28644.6
- Type
KES-GB 17/24 GR
- RoHS-compliant
Yes
- Material properties
fibreglass-reinforced
silicone-free
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3210513 CONTA-CLIP KES-GB 17/24 GR Cable router Board thickness (max.) 2 mm Polyamide 6.6 Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3210513 CONTA-CLIP KES-GB 17/24 GR Cable router Board thickness (max.) 2 mm Polyamide 6.6 Grey 1 pc(s)
Description
Cable inlet with membrane for unassembled cables, mounting type: Catch and screws, length: 147 mm, width: 58 mm, IP66, color: Gray
