Contact insert 1602482 RC-19P1N120000 Phoenix Contact Content: 10 pc(s)
Packaging type
Piece
Product type
Contact inset
Connector type
Pin
Connection
Soldering
Rated voltage
150 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Mating cycles mechanical: 50
- Contact surface: Nickel-plated, gold plating
- Contact diameter of power contacts: 1.5 mm
- Wire cross-section power contacts max.: 1 mm²
- Rated current power contacts: 10 A.
- Insulation material: PA66
- Nominal current per signal contact 8 A.
- Contact chamber numbering direction of rotation: Standard
- Coding: N
- Packaging type
Piece
- Product type
Contact inset
- Connector type
Pin
- Connection
Soldering
- Rated voltage
150 V
- Test current
10 A
- Case material
PA 66
- Total no. of pins
19
- Manufacturer part #
1602482
- Content
10 pc(s)
- Contact material
CuZn
- Core diameter
1.5 mm
- Number of pins
19
- (Ø)
1.5 mm
- RoHS-compliant
Yes
- Type
RC-19P1N120000
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2136659 Contact insert 1602482 RC-19P1N120000 Phoenix Contact Content: 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2136659 Contact insert 1602482 RC-19P1N120000 Phoenix Contact Content: 10 pc(s)
Description

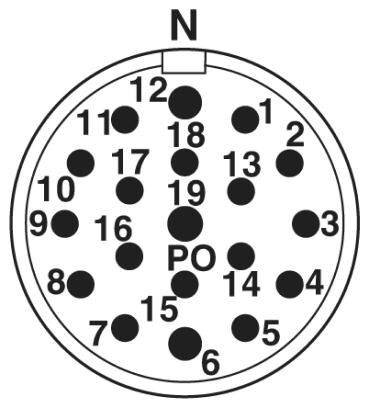

Contact insert, number of pins: 16+3, contact type: Pin, solder connection
