Name: Conteg 19" wall cabinet (W x H x D) 491 x 600 x 400 mm 9 U Grey-white (RAL 7035)
Brand: Conteg
SKU: 3131392

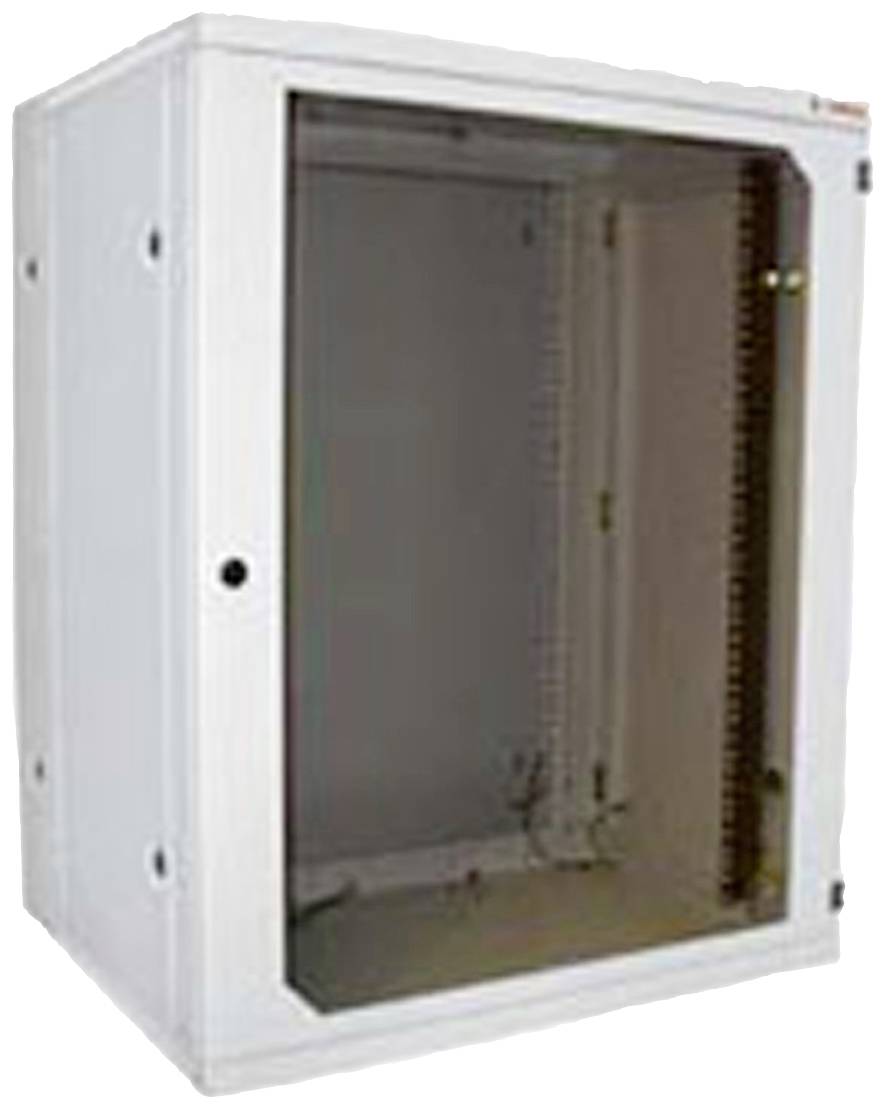

A vacant, white metal cabinet, presumably for servers or network equipment, with a glass door, devoid of any visible contents.

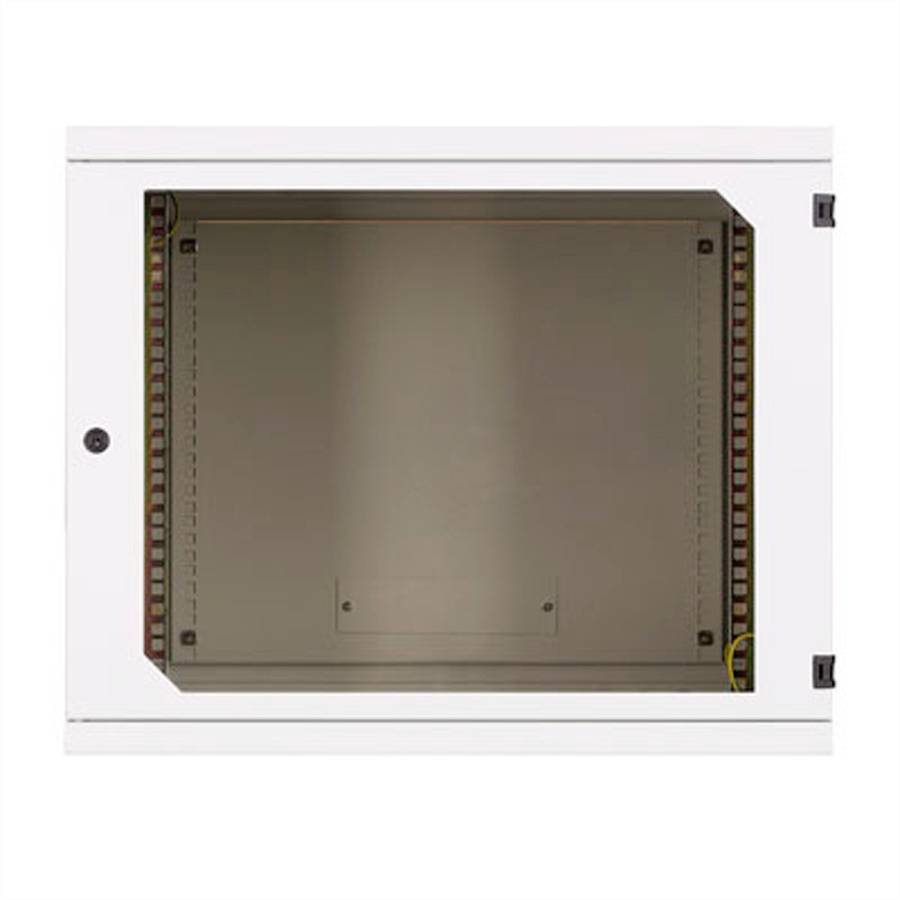

White network cabinet mounted on wall, empty with doors open.

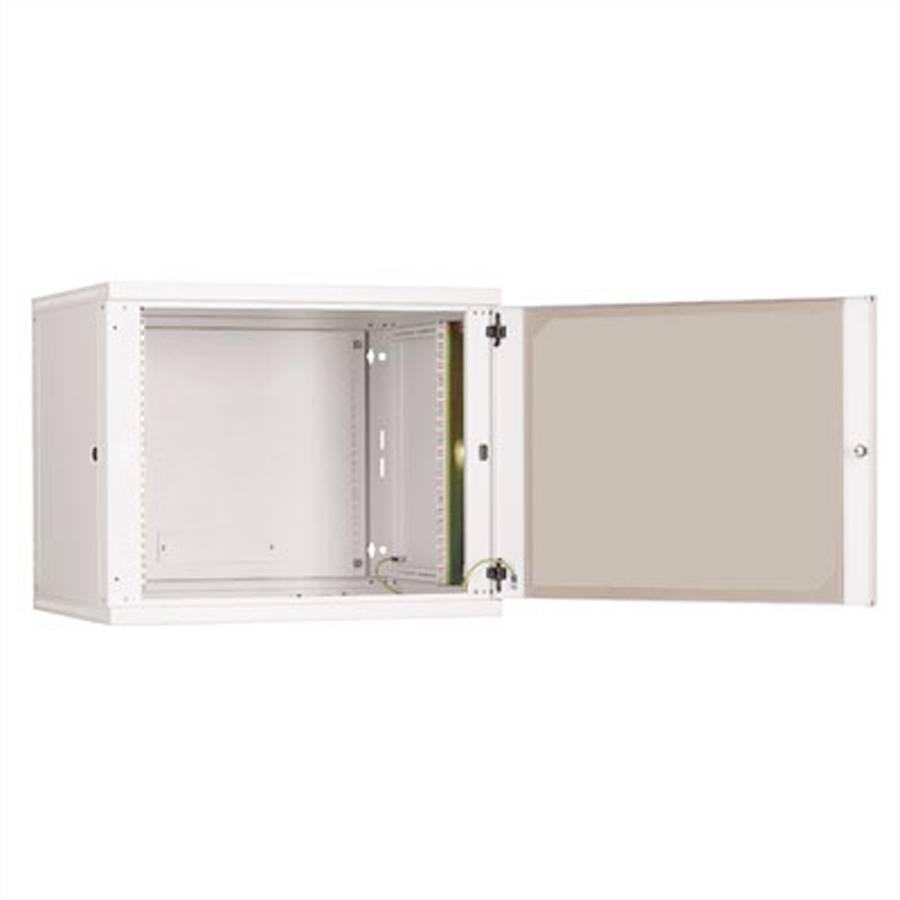

Wall mounting bracket for telecommunications equipment, white, with open door, showing empty interior and mounting fixtures.

1/3

Image similar

Conteg

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 491 mm

Height: 600 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 491 x 600 x 400 mm

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131392 Conteg 19" wall cabinet (W x H x D) 491 x 600 x 400 mm 9 U Grey-white (RAL 7035)

Description

Wall-mounted housing for simple and small office installations

Frame made of 1.25 mm steel sheet
Casing powder-coated RAL 7035 light gray
Lockable safety glass door
Door opens either on the left or right, opening angle 180°
Detachable and lockable side panels
Opening (150 x 56 mm) for cable entry via removable blind panel in base and roof
Passive ventilation and exhaust by ventilation gills in floor and roof
19" level can be set
Can support up to 30 kg
