Name: Contrinex 630 100 086 YCA-50R4-4300-G012
Brand: Contrinex
SKU: 506431
Availability: InStock

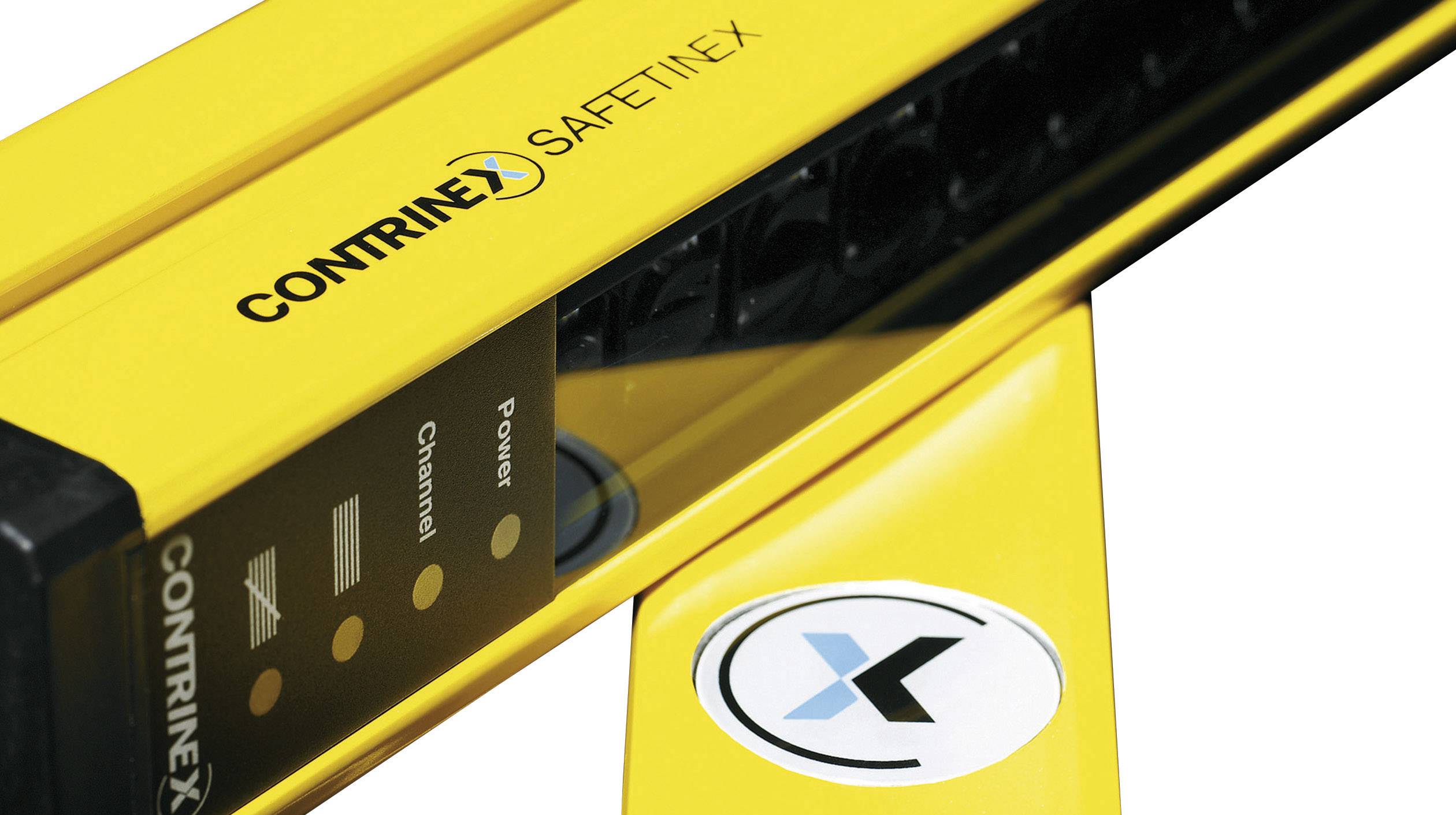

Image similar

Product type

Safety light barrier

Length

1154 mm

Height

42 mm

Type

YCA-50R4-4300-G012

Model

Receiver

Datasheet (PDF)

Fast track dispatch on Mon 19 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 529.00 / piece)

€ 529.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Safety category: 4
Performance level: PL e
Output (Ampere): 2 semiconductor outputs
Certification: TÜV/CE

Product type: Safety light barrier

Type: YCA-50R4-4300-G012

Model: Receiver

Range of uses: PPE

Max. operating voltage: 24 V DC

Operating voltage: 24 V DC (max)

Max. current consumption: 75 mA

Response time: 5 ms

Connector: M12 (5-pin)

Range (max.): 50 m

Output current: 200 mA

Performance level: PL e

Safety rating: 4

Rays: 4

Beam spacing: 300 mm

Protective field height: 932 mm

Content: 1 pc(s)

: IP65/67

Length: 1154 mm

Width: 48 mm

Height: 42 mm

Dim: (L x W x H) 1154 x 48 x 42 mm

Min. temperature: 0 °C

Max. temperature: +50 °C

Documents & Downloads

Datasheet

Datasheet 506431 Contrinex 630 100 086 YCA-50R4-4300-G012

User & Safety Instructions

User & Safety Instructions 506431 Contrinex 630 100 086 YCA-50R4-4300-G012

Information

Information 506431 Contrinex 630 100 086 YCA-50R4-4300-G012

Description

The multi-beam safety light barrier is intended to be used as a high-quality safety component for the protection of persons and machines. The Safetinex product has been developed according to the valid international safety standards and has the required certificates for use in the European Union, the United States and all other countries that have adopted the valid IEC standards. The device conforms to the highest safety level, that is, safety category 4, PL e, according to EN/ISO 13849-1 and type 4 according to IEC 61496-1/2.
