Contrinex Proximity sensor Inductive DW-AS-703-M30-002 320-420-248 M30 shielded PNP (Ø x H) 30 mm x 63.5 mm

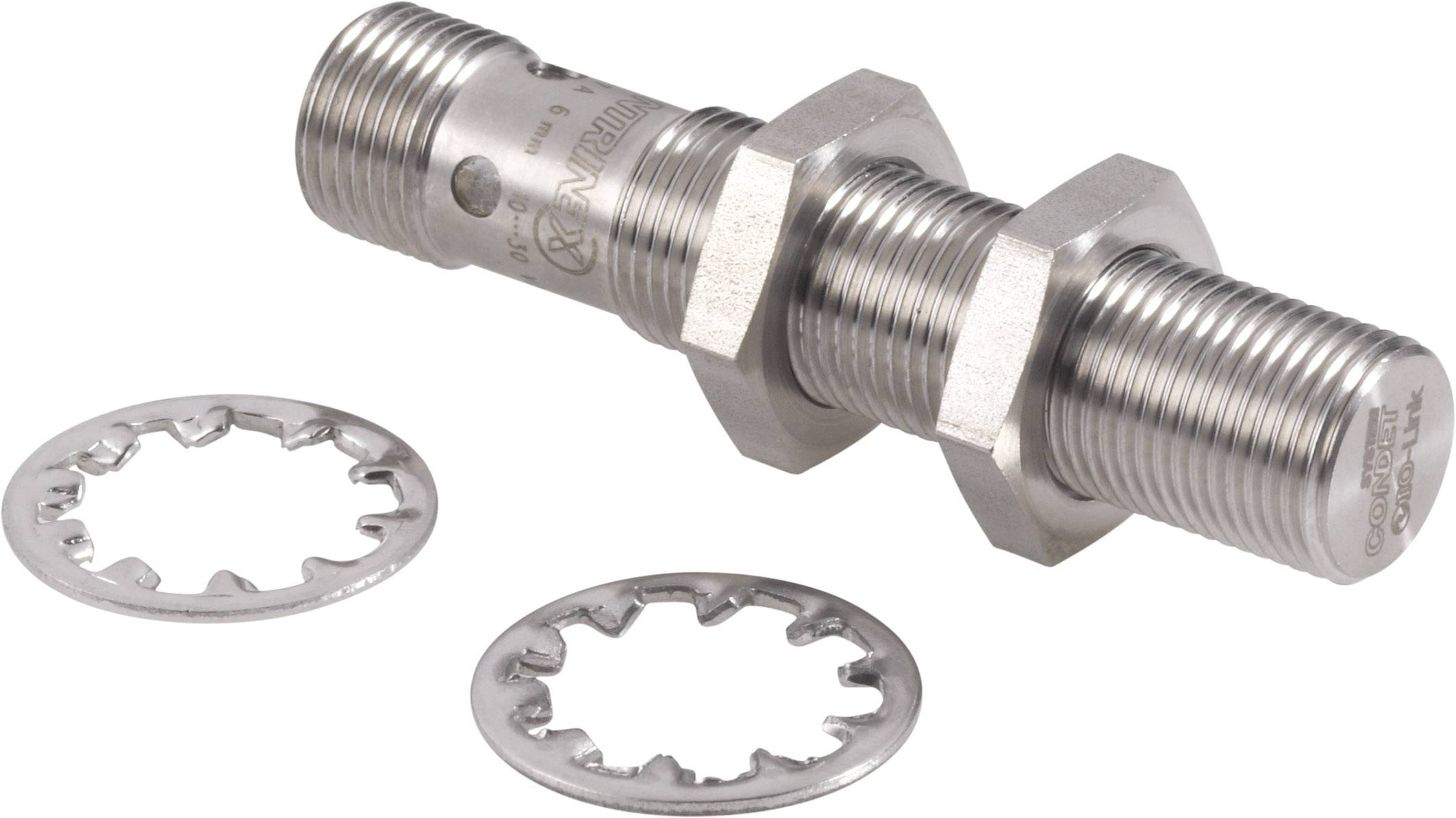

A cylindrical, metallic sensor with a threaded connection and label 'CONTRINEX DW-AS-703-M30-002'.
Technical drawing of a cylindrical component with dimensions and thread specifications, including M30x1.5 and M12x1, important for assembly instructions.
1/2
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
15 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 114.99 / piece)
€ 125.00
-8 %
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Contrinex Proximity sensor Inductive DW-AS-703-M30-002 320-420-248 M30 shielded PNP (Ø x H) 30 mm x 63.5 mm

Our service for you

Technical specifications

Product type

Proximity sensor

Type

DW-AS-703-M30-002

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Contact type

1 maker

Switching frequency


100 Hz

Switching distance (max.)

20 mm

Outputs

PNP

Enclosure material

Stainless steel

Model

Inductive

Material properties

rust-proof

Installation type

shielded

Size

M30

Connector

M12 (4-pin)

Min. temperature

-25 °C

Max. temperature

70 °C

IP68

IP67

Length

63.5 mm

Width

30 mm

Height

63.5 mm

Depth

30 mm

(Ø)

30 mm

Dim

(Ø x H) 30 mm x 63.5 mm

Content

1 pc(s)

Size

M30

Switching frequency

100 Hz

Output

PNP

Type

DW-AS-703-M30-002

Ambient temperature

-25 - +70 °C

Connection

M12 plug, 4-pin

Operating voltage

10 - 30 V DC

Documents & Downloads

Datasheet

Datasheet 155880 Contrinex Proximity sensor Inductive DW-AS-703-M30-002 320-420-248 M30 shielded PNP (Ø x H) 30 mm x 63.5 mm

User & Safety Instructions

User & Safety Instructions 155880 Contrinex Proximity sensor Inductive DW-AS-703-M30-002 320-420-248 M30 shielded PNP (Ø x H) 30 mm x 63.5 mm

Description

Very long switching distance on steel (3 fold). Almost the same long switching distance (3x) on aluminium, brass, etc. too. One-piece housing (stainless steel) including active surface makes the sensor extremely rugged and very waterproof.
