Name: Control switch Grey 6 mm² 20 A 1 maker Siemens 5TE8101
Brand: Siemens
SKU: 1732110
Availability: InStock

A grey Siemens circuit breaker with marking '5TE8', suitable for installation in electrical distribution cabinets.

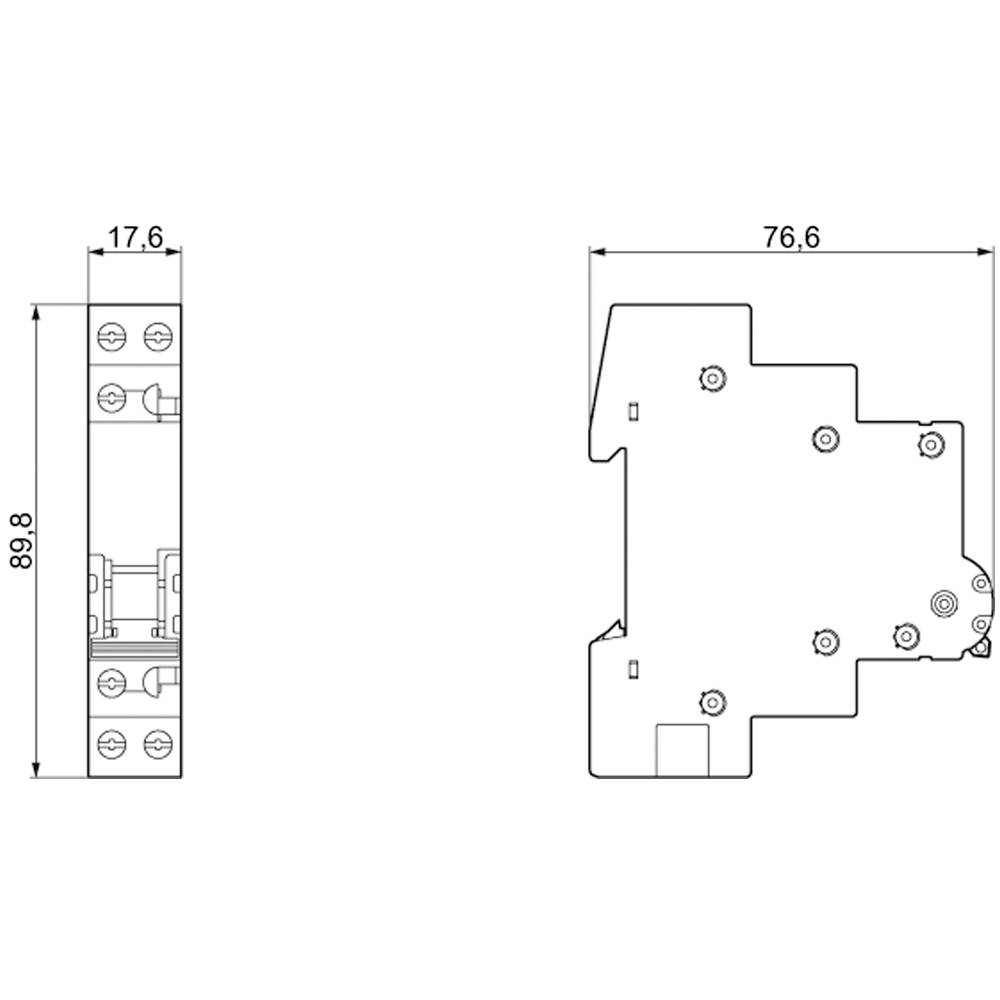

Technical drawing of a component with dimensions: height 89.8 mm, width 17.6 mm and 76.6 mm. Shows details of the shape and holes.

1/2

Image similar

Product type

Control switch

Number of pins

Nominal current - rounded value

20 A

Contact type

1 maker

Operating voltage

230 V

Datasheet (PDF)

Fast track dispatch on Tue 20 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Cutout depth: 70 mm
Net weight: 71g

Product type: Control switch

Contact type: 1 maker

Operating voltage: 230 V

Factory colour: Grey

Cross section: 6 mm²

Number of pins: 1

Dim: (L x W x H) 70 x 76.6 x 90 mm

Nominal current: 20 A

Nominal current - rounded value: 20 A

No. of partitions: 1

Width: 76.6 mm

Height: 90 mm

Length: 70 mm

Depth: 17.6 mm

Weight: 0

: AC

: Off switch with control lamp

: TRUE

: 70 mm

: 20 A

: 230 V

: 0.35 W

: 1

: 0

: 0

: 1

: Other

: 10 kA

: 0.06 A

: 1

: White

: Other

: Other

: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1732110 Control switch Grey 6 mm² 20 A 1 maker Siemens 5TE8101

User & Safety Instructions

User & Safety Instructions 1732110 Control switch Grey 6 mm² 20 A 1 maker Siemens 5TE8101

Description

Two-way switch 20 A 1 NO 1 NC Switching devices for mounting onto standard rails for controlling electrical systems. The switchgears from Siemens for standard rail mounting are an important elements of SENTRON components for electrical installations and are used in control cabinets and distribution boards for switching small loads on/off or over. Whether with remote or manual switching, latch or touch function, and for infrastructure or industrial requirements, Siemens provides switchgears for all applications and every application area. User-friendly mounting and connection technology, standardized accessories and an integrated design are the key features of this device family. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
