Image similar

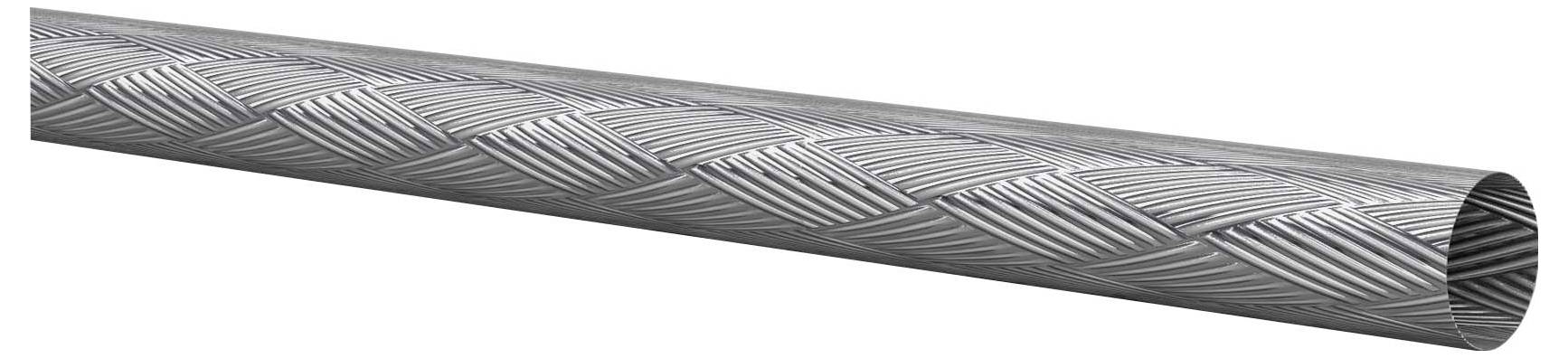

Copper braid hoze, VZ 36x8x0.15 mm 203680150 Kabeltronik Content: 100 m
Part number:
Item no:
Product type
Copper braid hoze
Material
Copper
Manufacturer part #
203680150
Content
100 m
Core layout
36 x 8 x 0.15 mm
Datasheet (PDF)
Technical specifications
- Type: Non-insulated copper
- Weight kg/per piece: 55 kg/per piece
- CU weight kg/per piece: 55 kg/per piece
- Use: Retroactive shielding of insulated wires and components to avoid electrical faults.
- Conductor material: Cu-wire, VZ.
- Internal diameter. 6.5 mm.
- Inner-Ø max. 19 mm
- Product type
Copper braid hoze
- Material
Copper
- Manufacturer part #
203680150
- Content
100 m
- Core layout
36 x 8 x 0.15 mm
- Material properties
tin plated
- Cross section
5.14 mm²
- Cross section (each core)
5.14 mm²
- Type
Kupferabschirmschlauch, vz 36x8x0,15 mm
Documents & Downloads
Datasheet
Datasheet 3804934 Copper braid hoze, VZ 36x8x0.15 mm 203680150 Kabeltronik Content: 100 m
User & Safety Instructions
User & Safety Instructions 3804934 Copper braid hoze, VZ 36x8x0.15 mm 203680150 Kabeltronik Content: 100 m
Description
Subsequent shielding of insulated cables and components to avoid electrical interference.
