Image similar

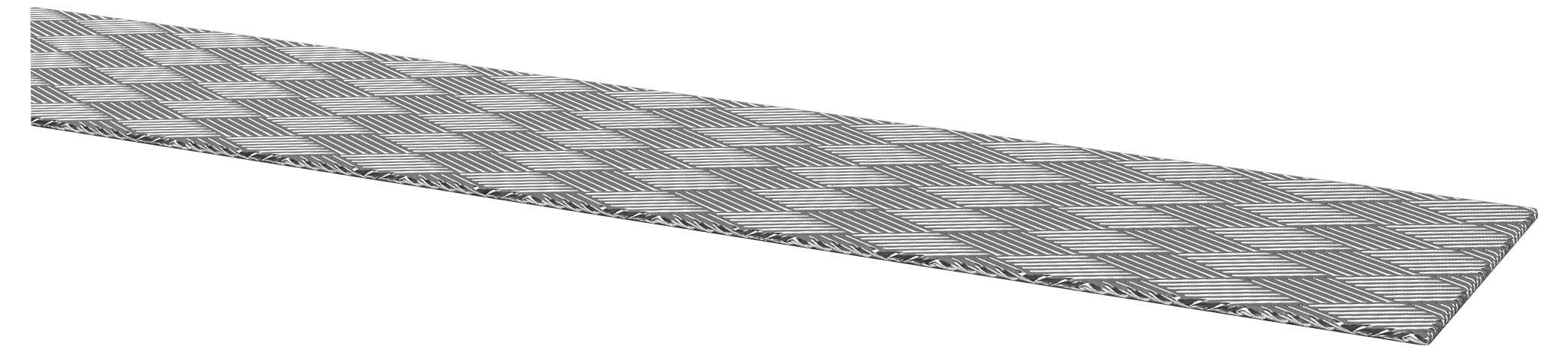

Copper fabric tape, VZ. 0.50 mm2 (2.5 x 0.4 mm) 301005001 Kabeltronik Content: 500 m
Product type
Copper reinforced tape
Material
Copper
Manufacturer part #
301005001
Content
500 m
Core layout
16 x 8 x 0.07 mm
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Non-insulated copper
- Weight kg/per piece: 5 kg/per piece
- CU weight kg/per piece: 5.1000000000000005 kg/per piece
- Conductor material: Cu-wire, VZ.
- Width x thickness 2.5 x 0.4
- Product type
Copper reinforced tape
- Material
Copper
- Manufacturer part #
301005001
- Content
500 m
- Core layout
16 x 8 x 0.07 mm
- Width
2.5 mm
- Height
0.4 mm
- Cross section
0.5 mm²
- Cross section (each core)
0.5 mm²
- Type
Kupfergewebeband, vz. 0,50 qmm (2,5 x 0,4 mm)
Documents & Downloads
Datasheet
Datasheet 3805194 Copper fabric tape, VZ. 0.50 mm2 (2.5 x 0.4 mm) 301005001 Kabeltronik Content: 500 m
User & Safety Instructions
User & Safety Instructions 3805194 Copper fabric tape, VZ. 0.50 mm2 (2.5 x 0.4 mm) 301005001 Kabeltronik Content: 500 m
Description
Copper fabric tape, VZ. 0.50 mm2 (2.5 x 0.4 mm)
