Cornelsen Experimenta 23410 Science kit

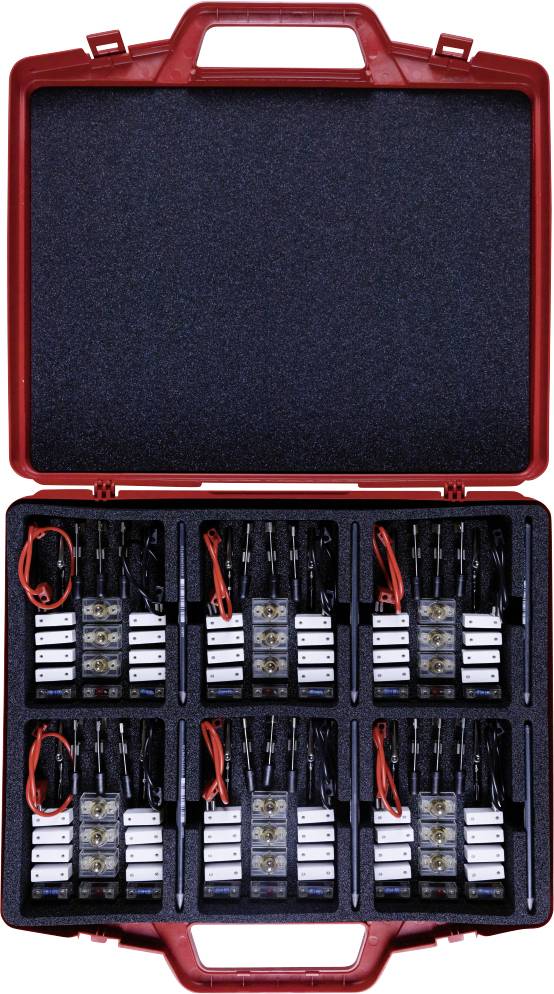

'Red case containing multiple electrical testing tools and accessories, organized into sections with compartments for wires and gadgets.'
A hand is measuring with a ruler on a worksheet, which contains a picture of power lines and text in German.

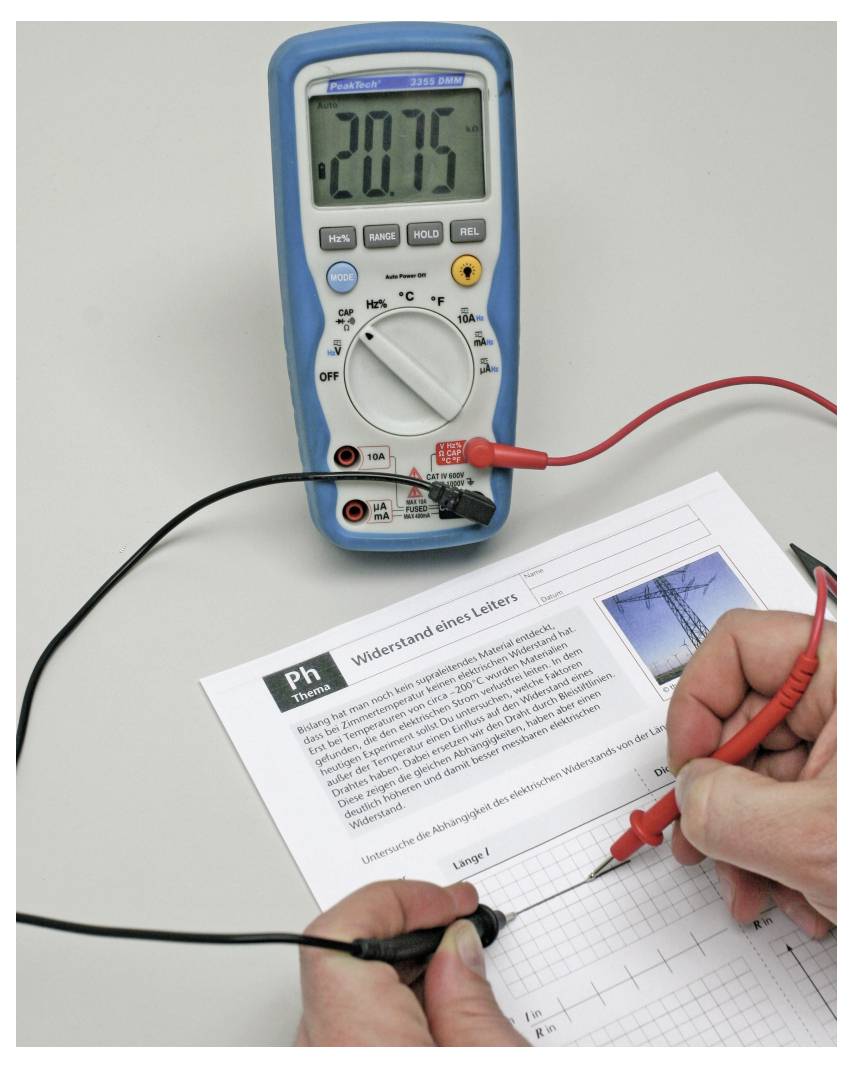

'A digital multimeter displaying 20.75 volts is connected to a circuit. A person writes on a worksheet titled "Widerstand eines Leiters".'
'Electricity 2.0' textbook cover featuring a person focused on an activity; includes QR code for more information.

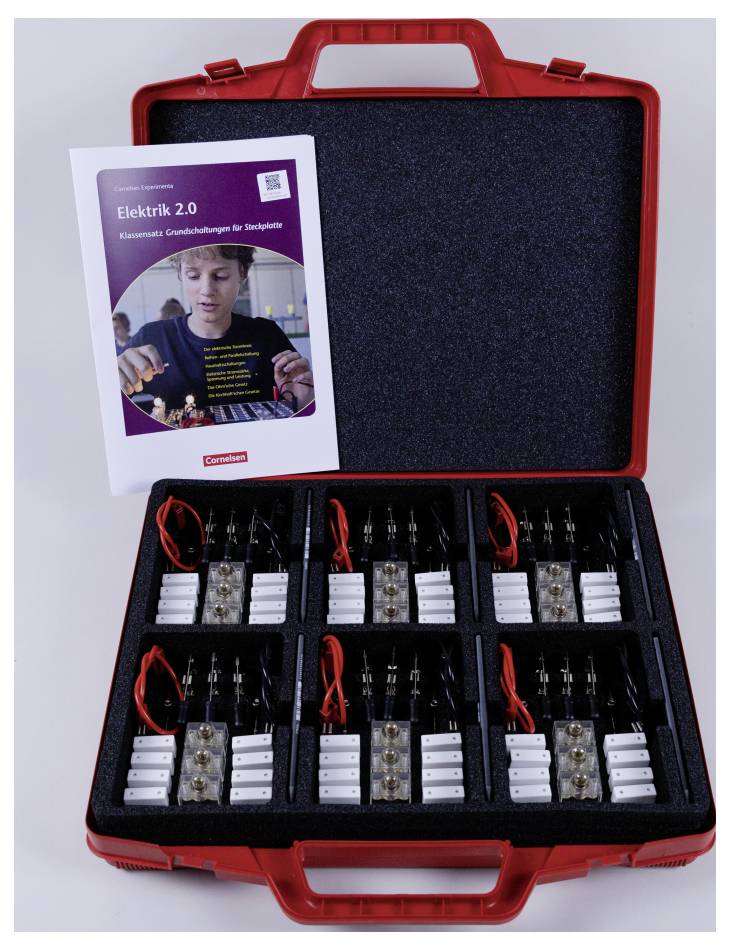

'Elektrik 2.0' kit in a red case with various electrical components and a booklet, likely for educational purposes.

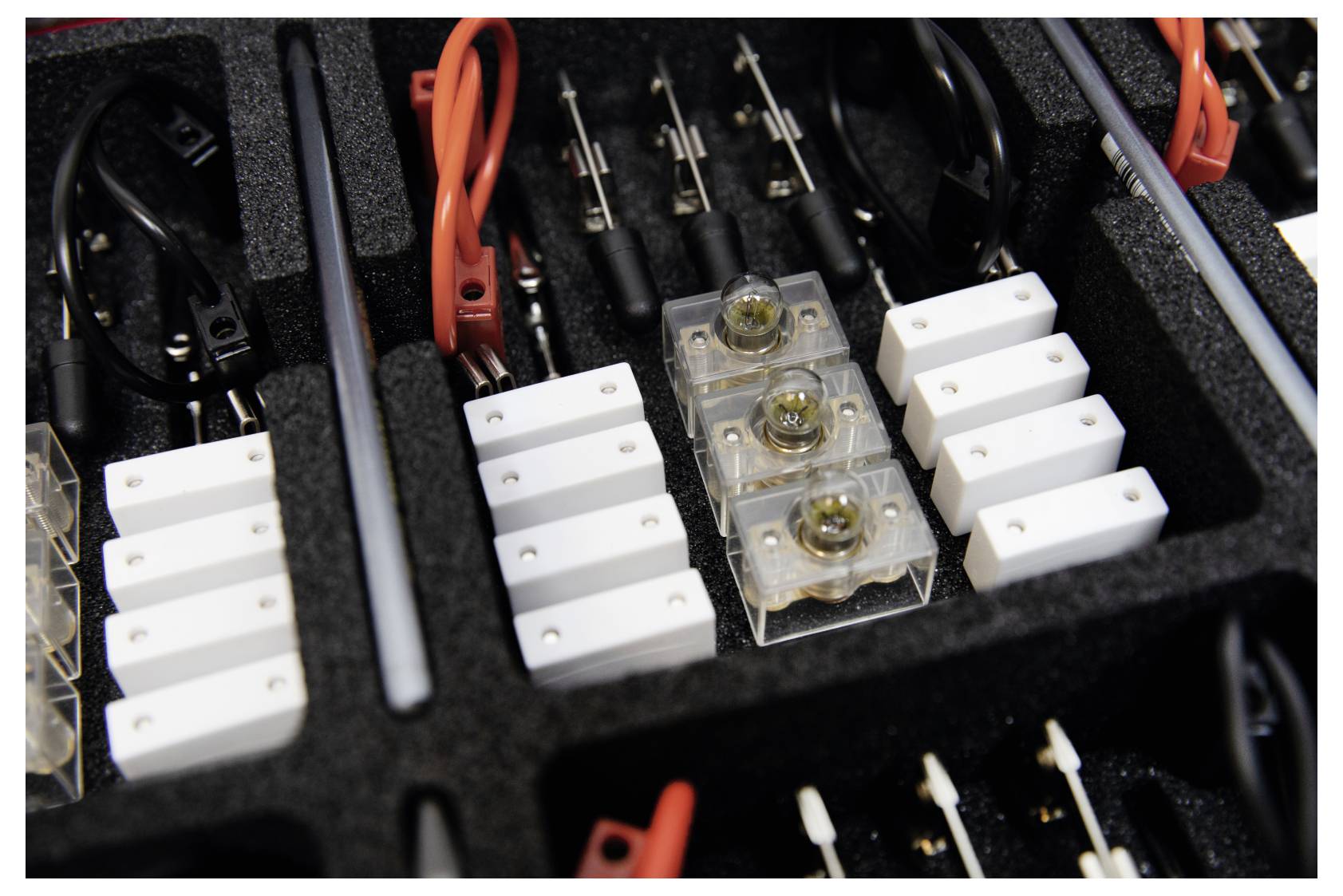

Close-up of a tool case with various electronic components and connectors organized in foam compartments.

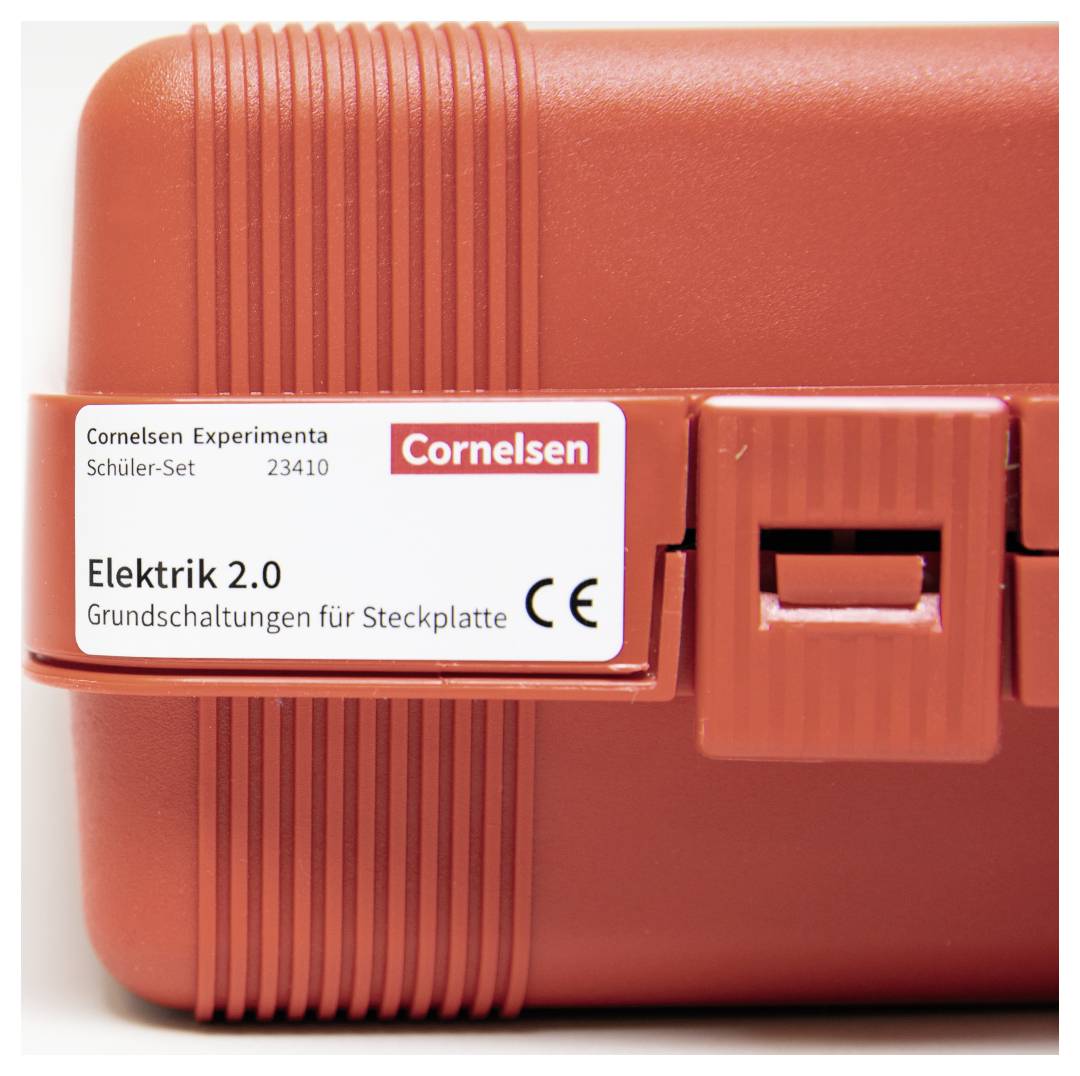

A red case labeled 'Elektrik 2.0: Grundschaltungen für Steckplatte' from Cornelsen Experimenta, Schüler-Set 23410.

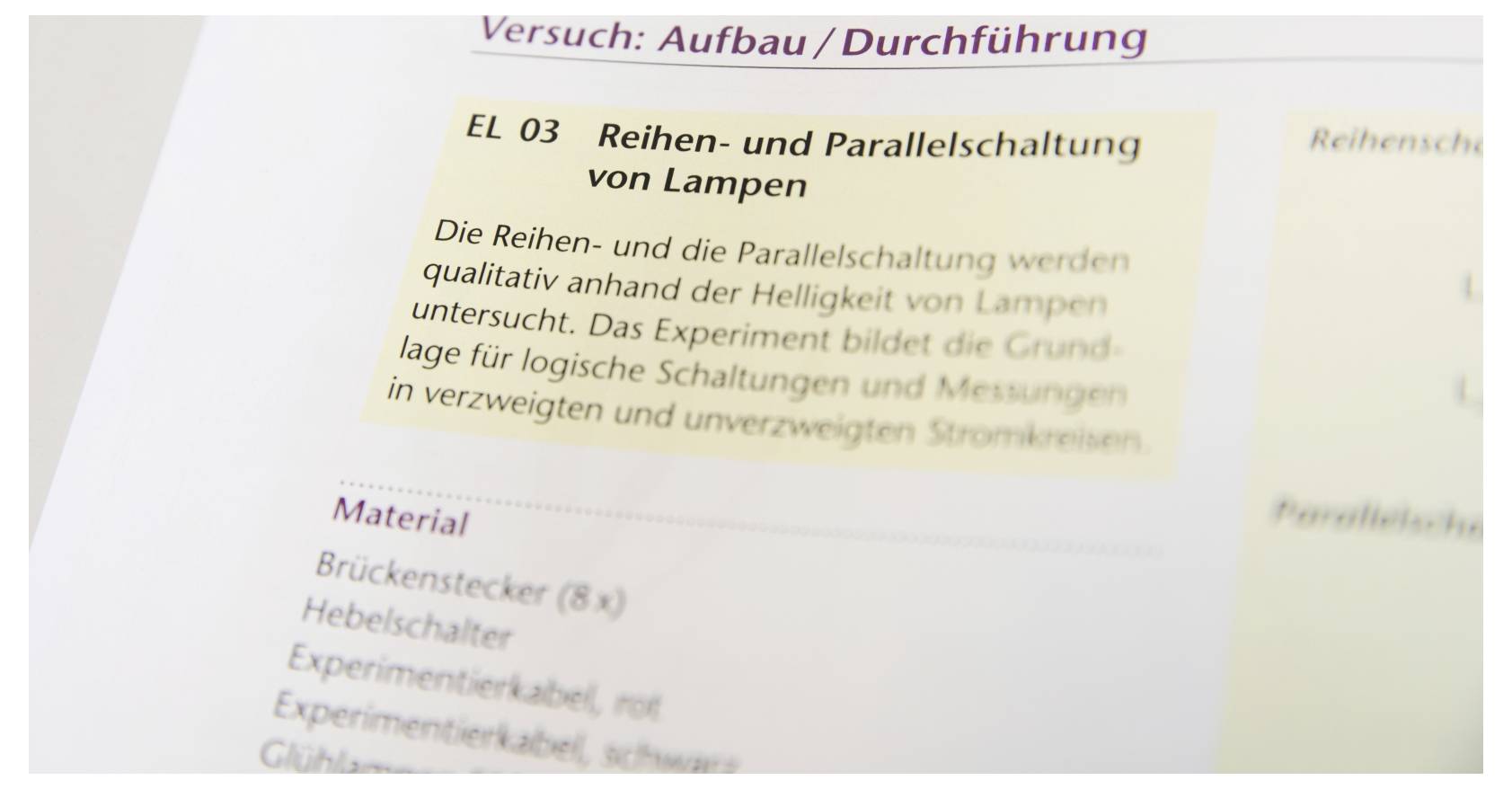

A document section titled 'Versuch: Aufbau / Durchführung' with a focus on 'Reihen- und Parallelschaltung von Lampen' as part of an experiment.

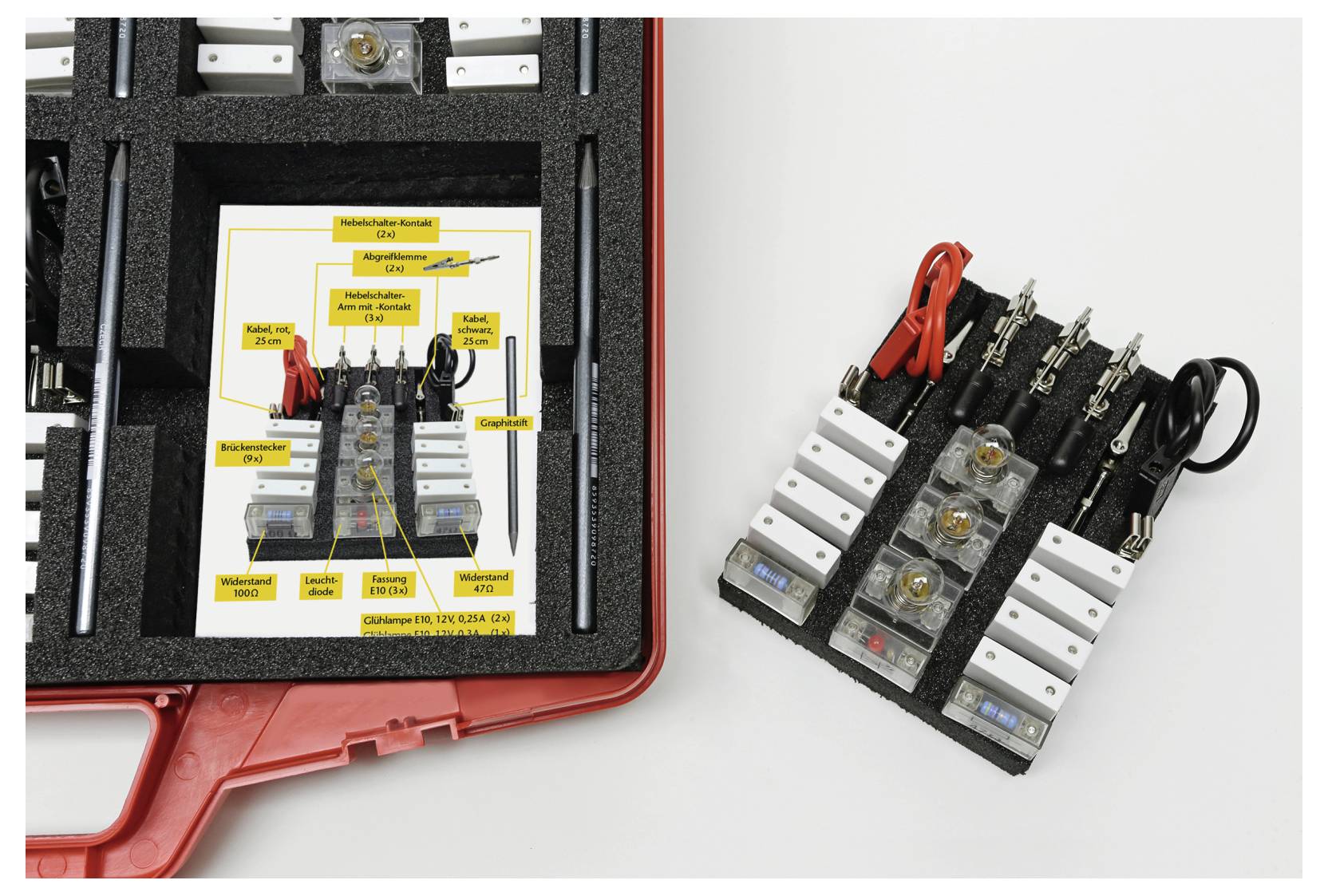

Two electrical disconnection and protection modules: one in a red case with labels, another outside, displaying switches and terminals.

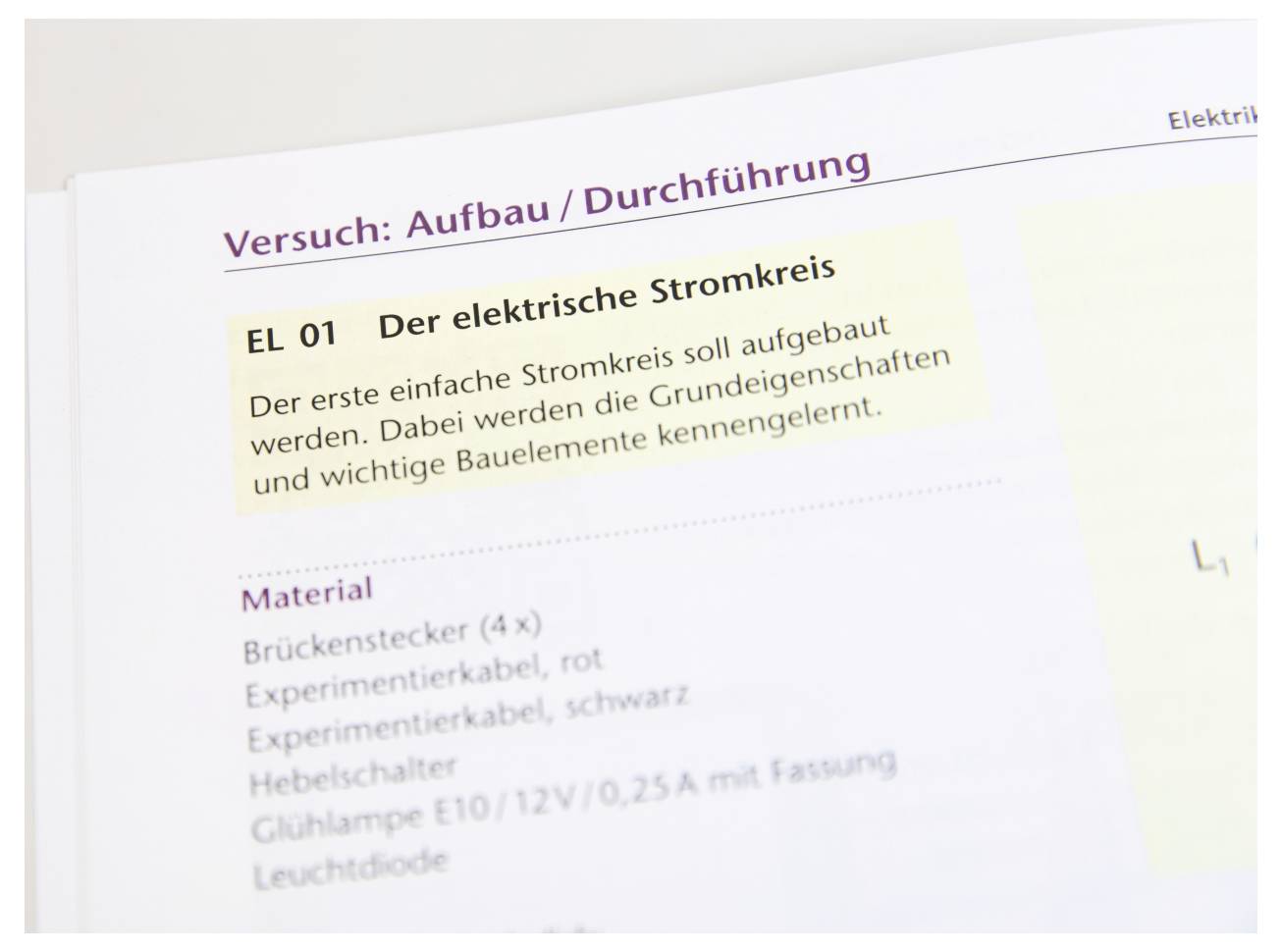

'Versuch: Aufbau/Durchführung EL 01 Der elektrische Stromkreis. Der erste einfache Stromkreis soll aufgebaut werden.' Text for experiment setup and material requirements in a document.

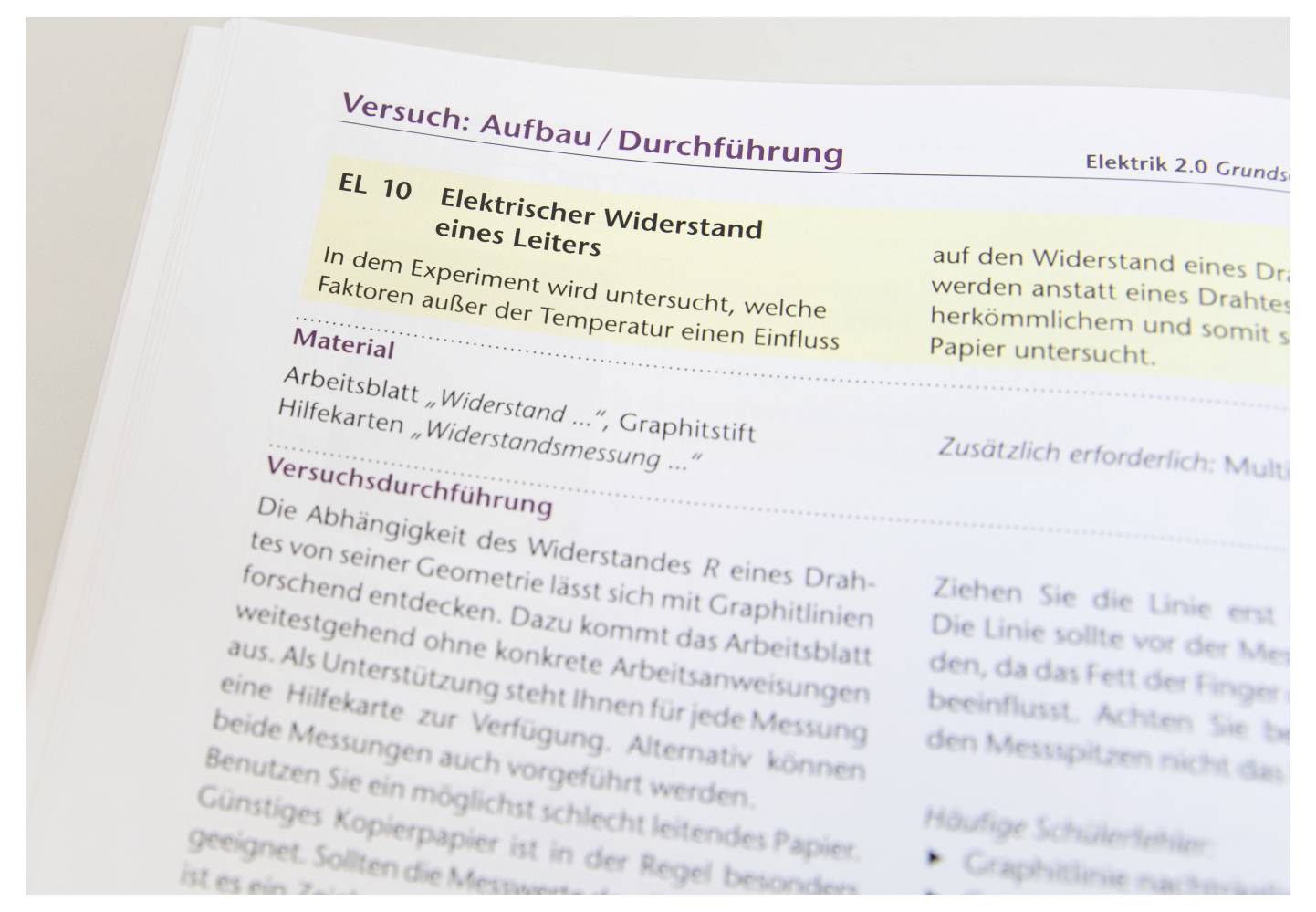

A science textbook page in German with sections on experiment setup and electrical resistance. The highlighted part is titled 'Elektrischer Widerstand eines Leiters'.

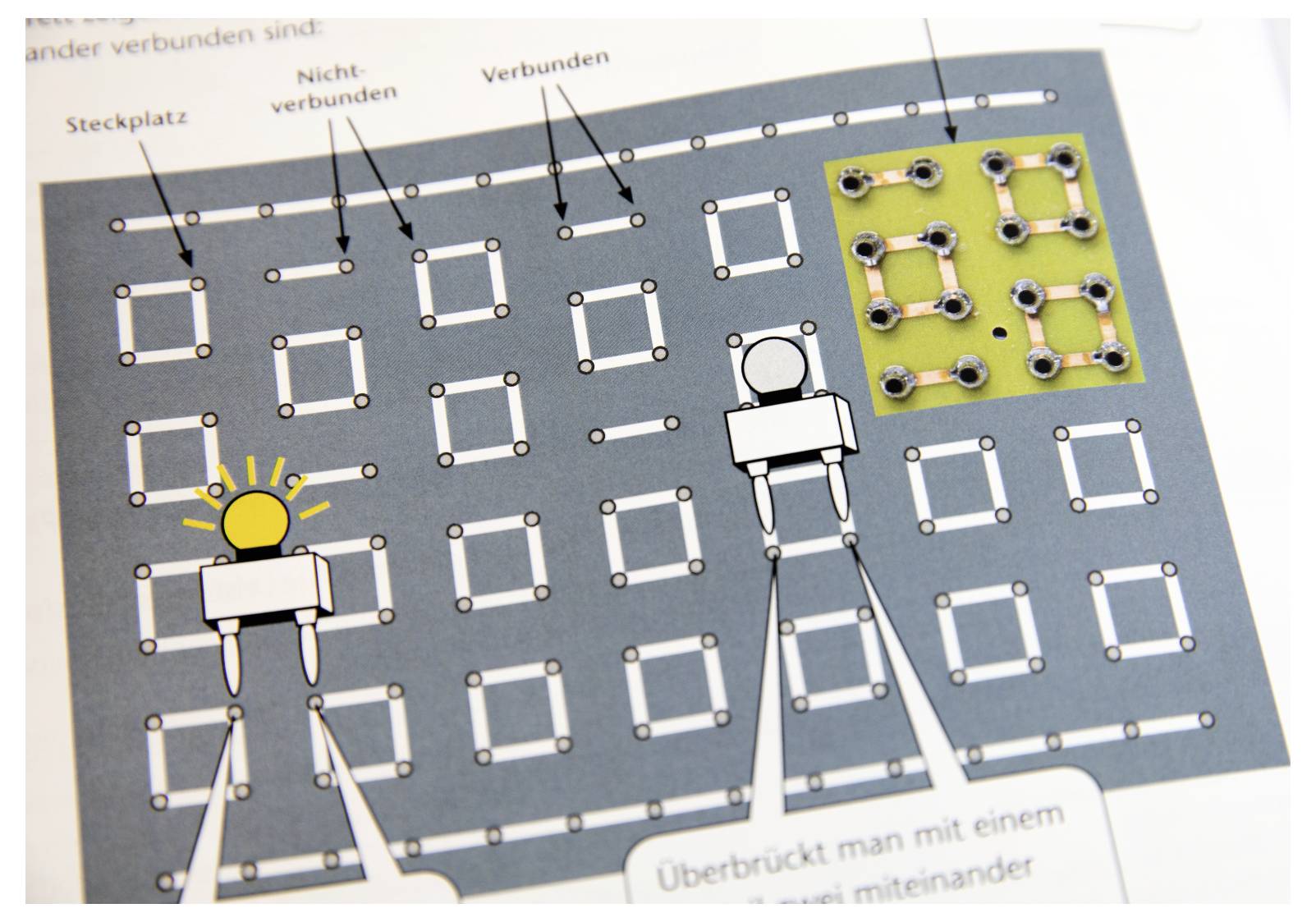

'Diagram showing a grid with occupied and unoccupied connector slots. One figure is linked, another is unlinked, highlighting connections.'

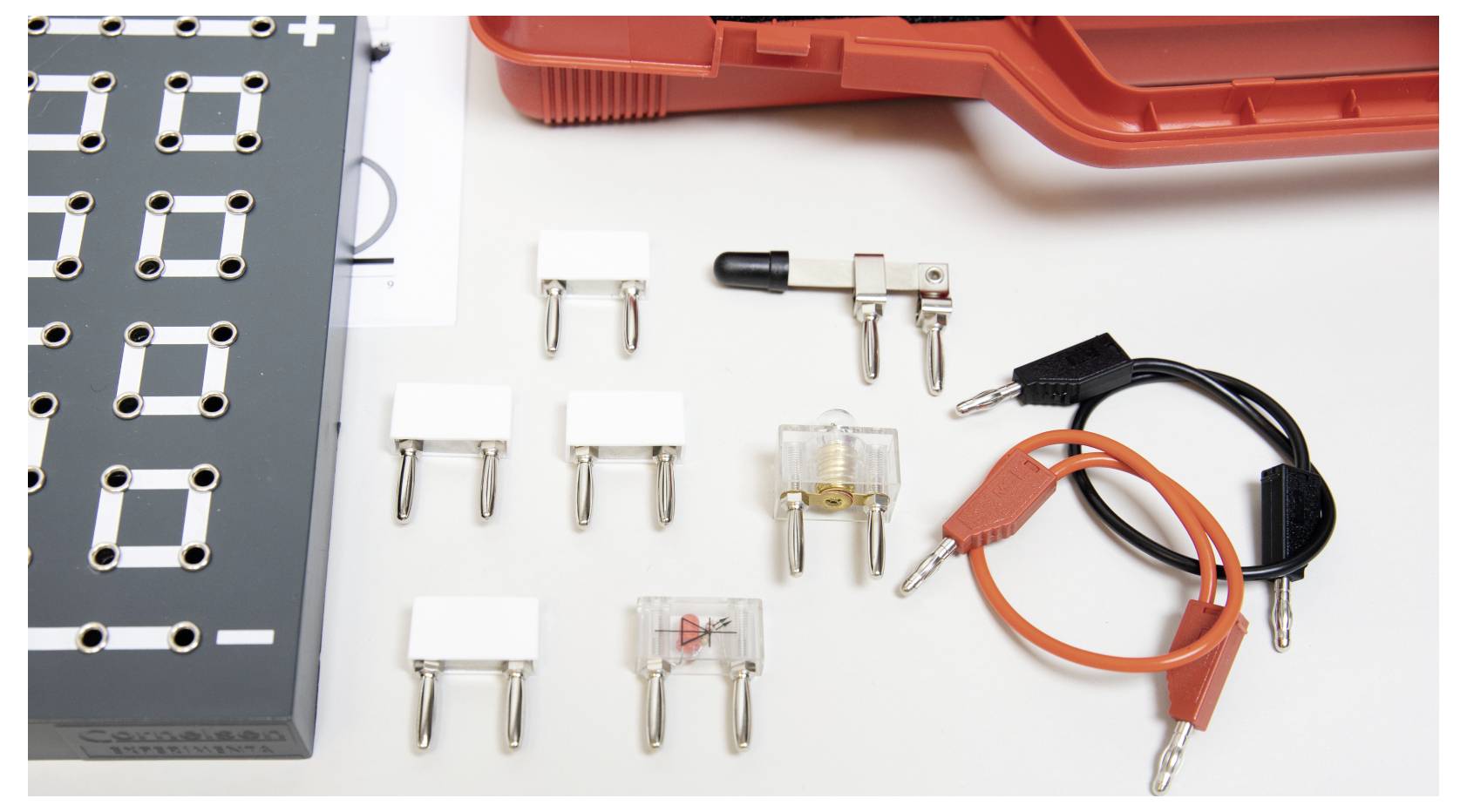

A collection of electrical components including plug-in connectors and jumper cables is arranged next to a gray panel board and a red case.

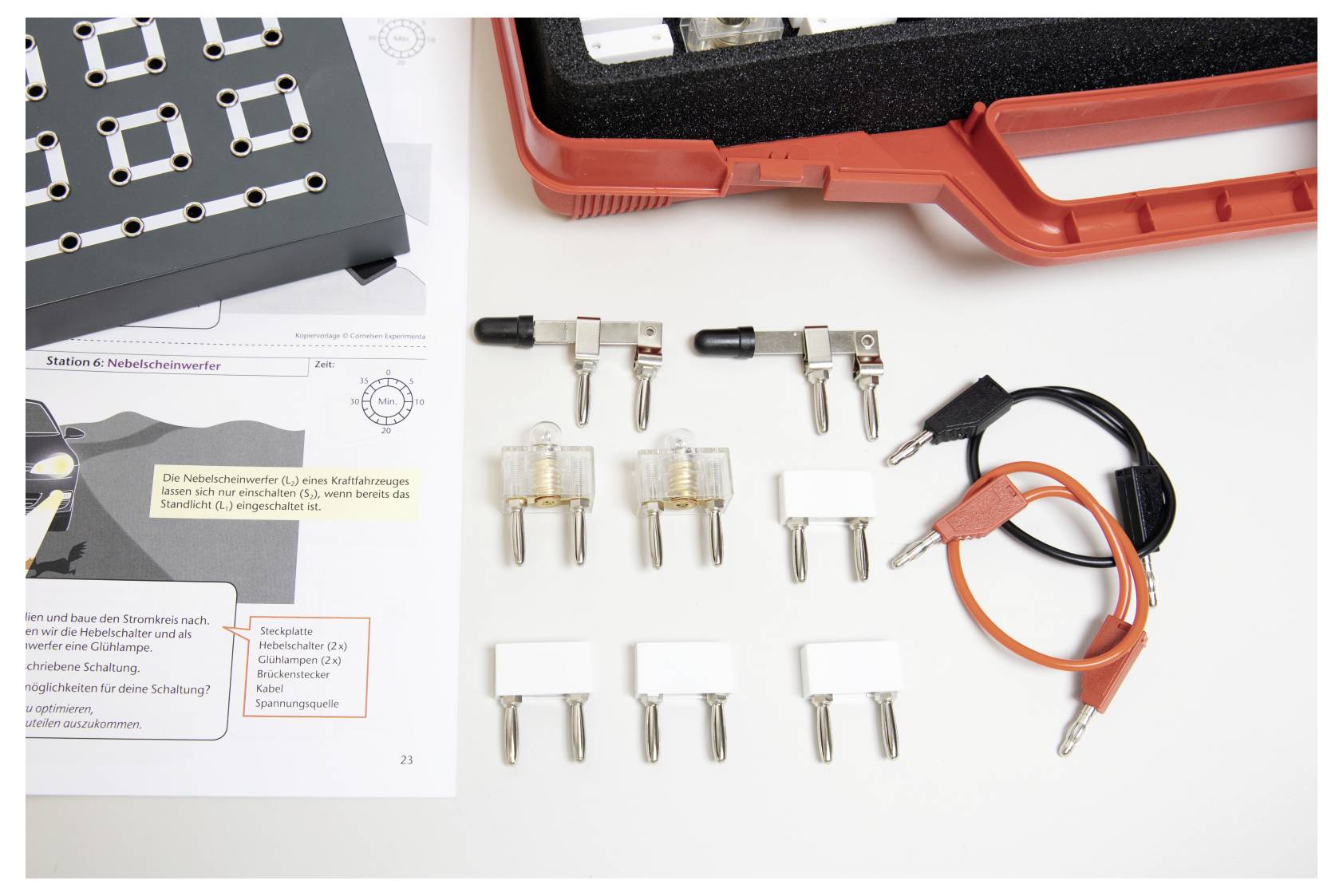

'Electronic device assembly kit on a table with various connectors and user manual.'
1/14
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,089.00 / piece)
€ 1,089.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

Product type

Science kit

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3588358 Cornelsen Experimenta 23410 Science kit

Description


Physics experiments on the subjects of - basic circuits

The class set electrics 2.0 'basic circuits' consists of six individually detachable pads. This makes it very easy to issue the experimental materials to the six learning groups. All the necessary components are included on each pad, with which your students learn to understand independently all the basic electrical circuits on a plug board. With the help of graphite pins, students examine the resistance in relation to length and thickness, using drawn wires directly in the booklet.

Key features

All components are designed for a voltage of 12V.
Two change-over switches allow investigation of toggle switches.
Elementary variables such as voltage, current and resistance are explained in detail as a glance at the conductor.

The class set electrics 2.0 "basic circuits" is suited to experimenting with 6 parallel learning groups (à 2-3 students) in the secondary level. The comprehensive manual is part of the experiment set.

Accompanying material

All student worksheets also available as editable Word versions for free download
Teacher's manual
Help card for using the slot plate and switching sign
10 stations for household circuits
Additional tasks, such as tossing a circuitry

Tip
The 6 mm plugs fit all standard plug plates, such as this universal plug-in board, Article No.: 20402.

This text is machine translated.

Features

  • 1 × storage case, empty 430x330x99 mm
  • 6 × Exp. Red cable, 25 cm
  • 6 × Exp. Cable black, 25 cm
  • 1 × folding carton for manager 450/415/107
  • 6 × graphite pin, 8B hardness
  • 12 × Alligator clip with 4 mm plug
  • 1 × Foam insert 430/330/20 mm
  • 1 × foam top for class set KS Electric
  • 6 × foam insert for class set of basic circuits in electronics
  • 48 × bridge plug, 4mm white
  • 18 × Socket E 10 on 19 mm plug
  • 2 × E10 /12V/ 0.25A clear light bulbs, pack of 10
  • 18 × lever switch arm on connector pin
  • 6 × LED, St., red
  • 30 × Switch contact on connector pin
  • 6 × Resistance timer 100 Ohm, 1 Watt
  • 6 × Resistance timer 47 Ohm
  • 6 × Room plan Class set Electric 2.0, d/e - 01.20
