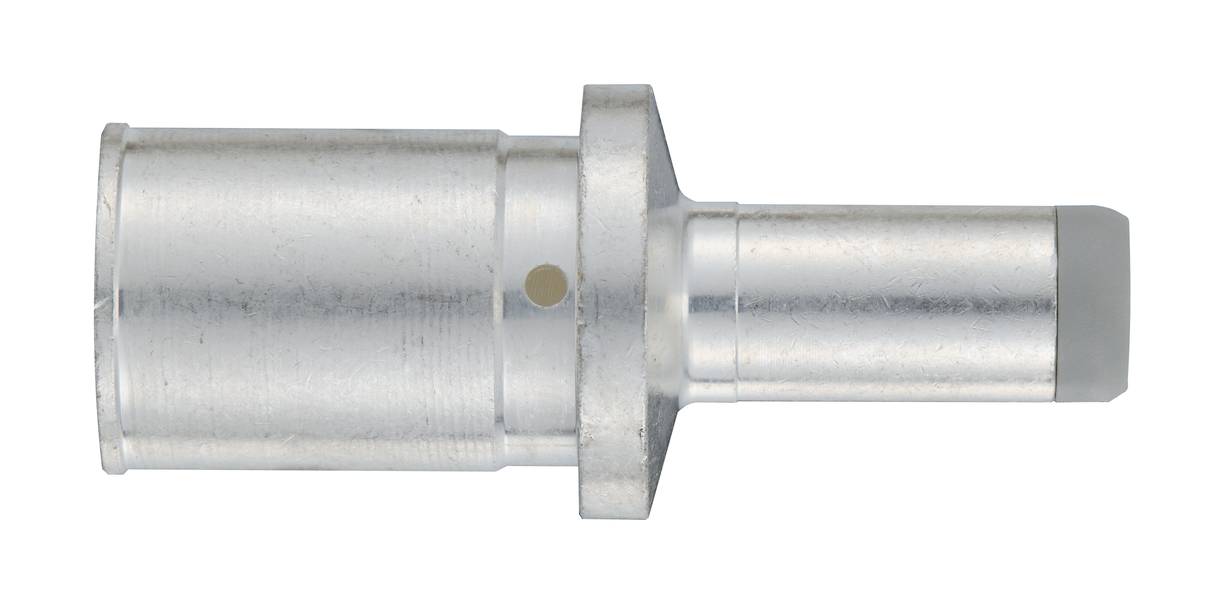

Crimp contact 09110007535 HARTING Content: 1 pc(s) Crimp contact
Packaging type
Piece
Product type
Crimp contact
Type
09 11 000 7535
Manufacturer part #
09110007535
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated current ≤ 300 A
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Silver-plated contact surface
- Standards IEC 60664-1; IEC 61984
- Net weight: 37.5 g
- Contact type: Crimp contact
- Gender: Pen
- Production process: Turned contacts
- Conductor cross-section: 70 mm²
- Wire stripping length: 22.5 mm
- Packaging type
Piece
- Type
09 11 000 7535
- Product type
Crimp contact
- Manufacturer part #
09110007535
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Max. temperature
125 °C
Pin
-40-125 °C
Other
Silver
22.5 mm
70-70 mm²
70-70 mm²
300 A
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3007539 Crimp contact 09110007535 HARTING Content: 1 pc(s) Crimp contact
Datasheet 3007539 Crimp contact 09110007535 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3007539 Crimp contact 09110007535 HARTING Content: 1 pc(s) Crimp contact
Description
Crimp contact, operating current: 300 A, pin, copper alloy, silver-plated Conductor cross-section: 70 mm²
