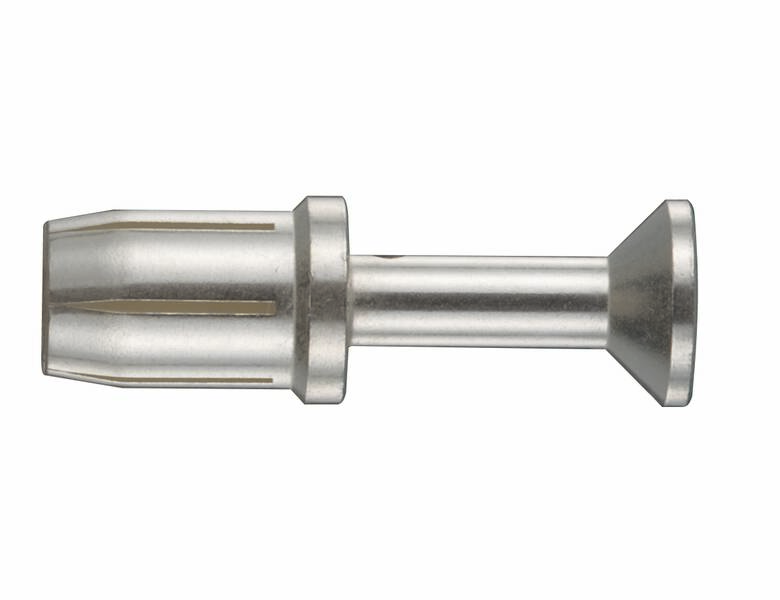

Crimp contact 09112006235 HARTING Content: 1 pc(s) Crimp contact
Packaging type
Piece
Product type
Crimp contact
Type
09 11 200 6235
Manufacturer part #
09112006235
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series TC 100
- Rated current ≤ 100 A
- Continuous resistance ≤ 0.3 mΩ
- Temperature limit: -40 ... +125 °C
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Standards IEC 60664-1; IEC 61984
- Net weight: 19.9 g
- Features: Lead-free
- Contact type: Crimp contact
- Gender: Jack
- Production process: Turned contacts
- Conductor cross-section: 35 mm²
- Stripped length: 16 mm
- Mating cycles with other HMC components: ≥ 10,000
- Packaging type
Piece
- Type
09 11 200 6235
- Product type
Crimp contact
- Manufacturer part #
09112006235
- Connection
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Max. temperature
125 °C
Bus
-40-125 °C
Other
Gold
16 mm
35-35 mm²
35-35 mm²
100 A
Other copper alloys
10000
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3005838 Crimp contact 09112006235 HARTING Content: 1 pc(s) Crimp contact
User & Safety Instructions
User & Safety Instructions 3005838 Crimp contact 09112006235 HARTING Content: 1 pc(s) Crimp contact
Description

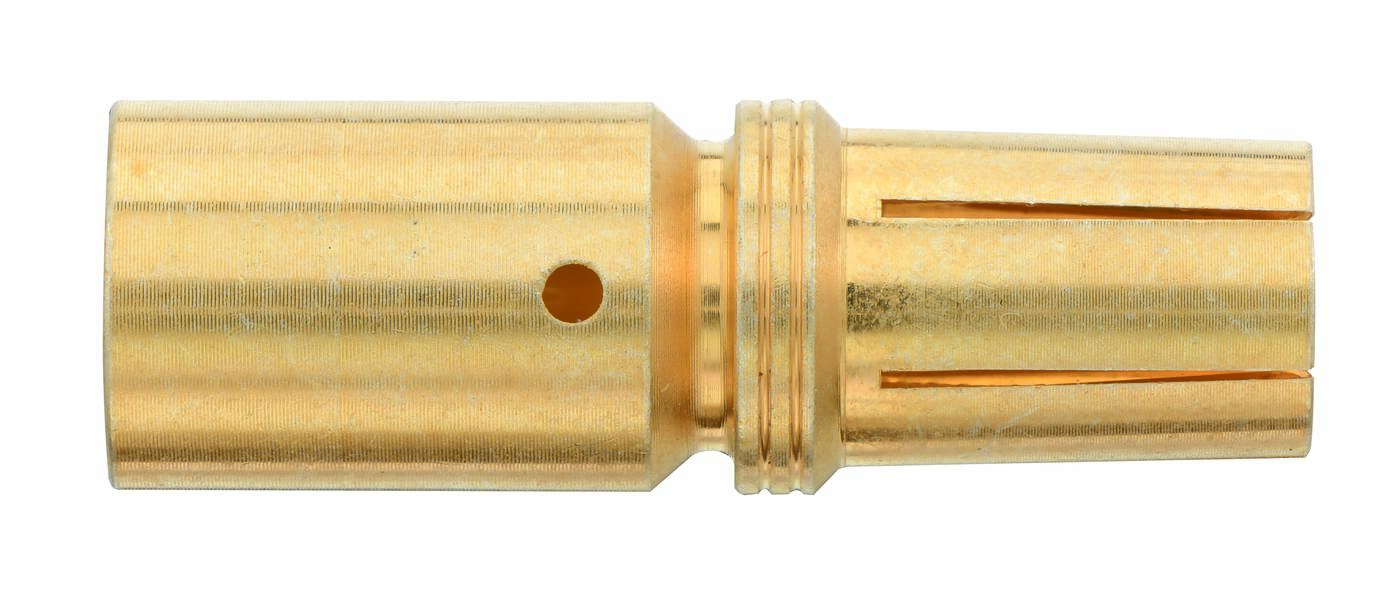

Crimp contact, operating current: 100 A, socket, copper alloy, HMC gold-plated Conductor cross-section: 35 mm²
