Highlights & Details

Cudy FS1006P Network-Switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 6
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX
MAC address table: 1024 entries Routing/switching capacity: 1.2 Gb/s.
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

Weight: 1.029

Width: 200 mm

Height: 44 mm

Depth: 118 mm

Type: Cudy FS1006P switch di rete Fast Ethernet (10/100) Supporto Power over Ethernet

Factory colour: Black

Material (details): Metal

Power consumption (ON): 1 W

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 6

Packet buffer memory: 0.448 MB

Storage relative humidity (H-H): 10 - 95 %

Wall mountable: yes

Switching capacity: 1.2 Gbit/s

Products per shipping (inner) case: 16 Stück(e)

Power over Ethernet (PoE): yes

Store-and-forward: yes

Quick start guide: yes

Half duplex: yes

Full duplex: yes

MAC address table: 1024 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 0.8928 Mpps

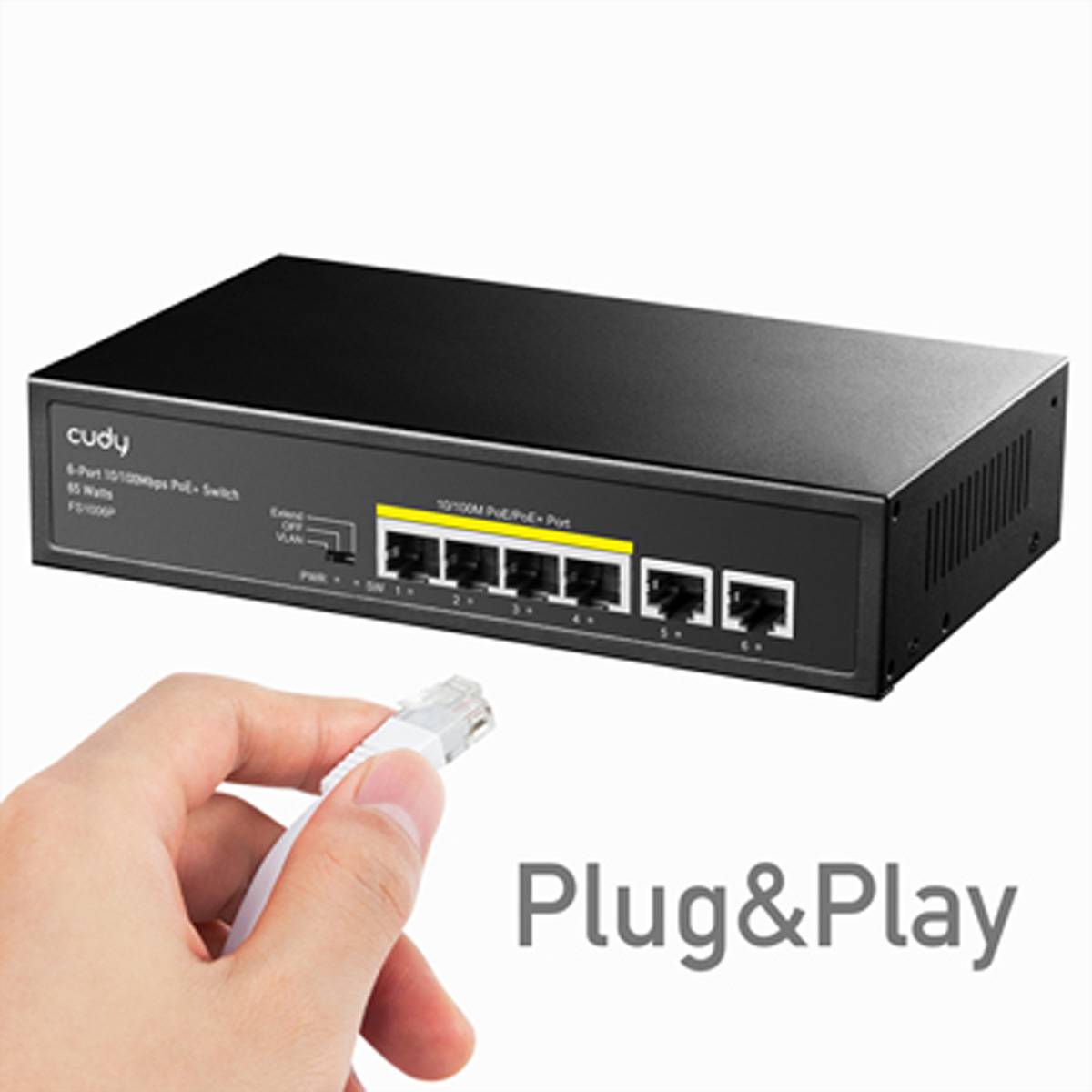

Plug and Play: yes

Power consumption (max): 65 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798926 CUDY FS1006P 6-port 10/100M PoE+ switch 60W

User & Safety Instructions

User & Safety Instructions 3798926 CUDY FS1006P 6-port 10/100M PoE+ switch 60W

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

The watchdog is activated in VLAN and Extend mode. If a connected device freezes and the data transfer is set for 5 minutes, the watchdog automatically restarts the corresponding PoE port.

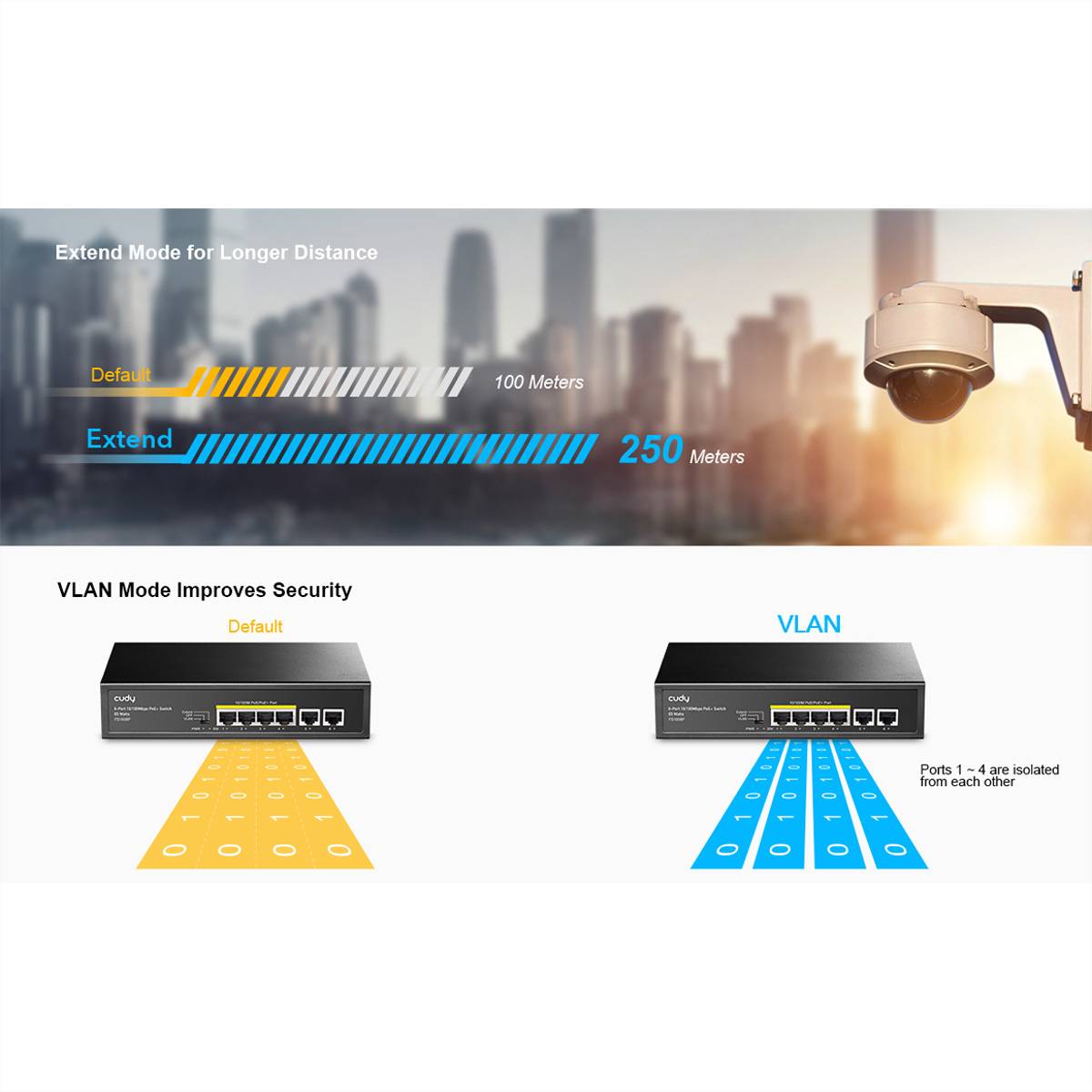

Extend the PoE range. Increase client security.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures

Versatile scenarios

Monitoring

Office networks

WLAN on campus

Access and signage
