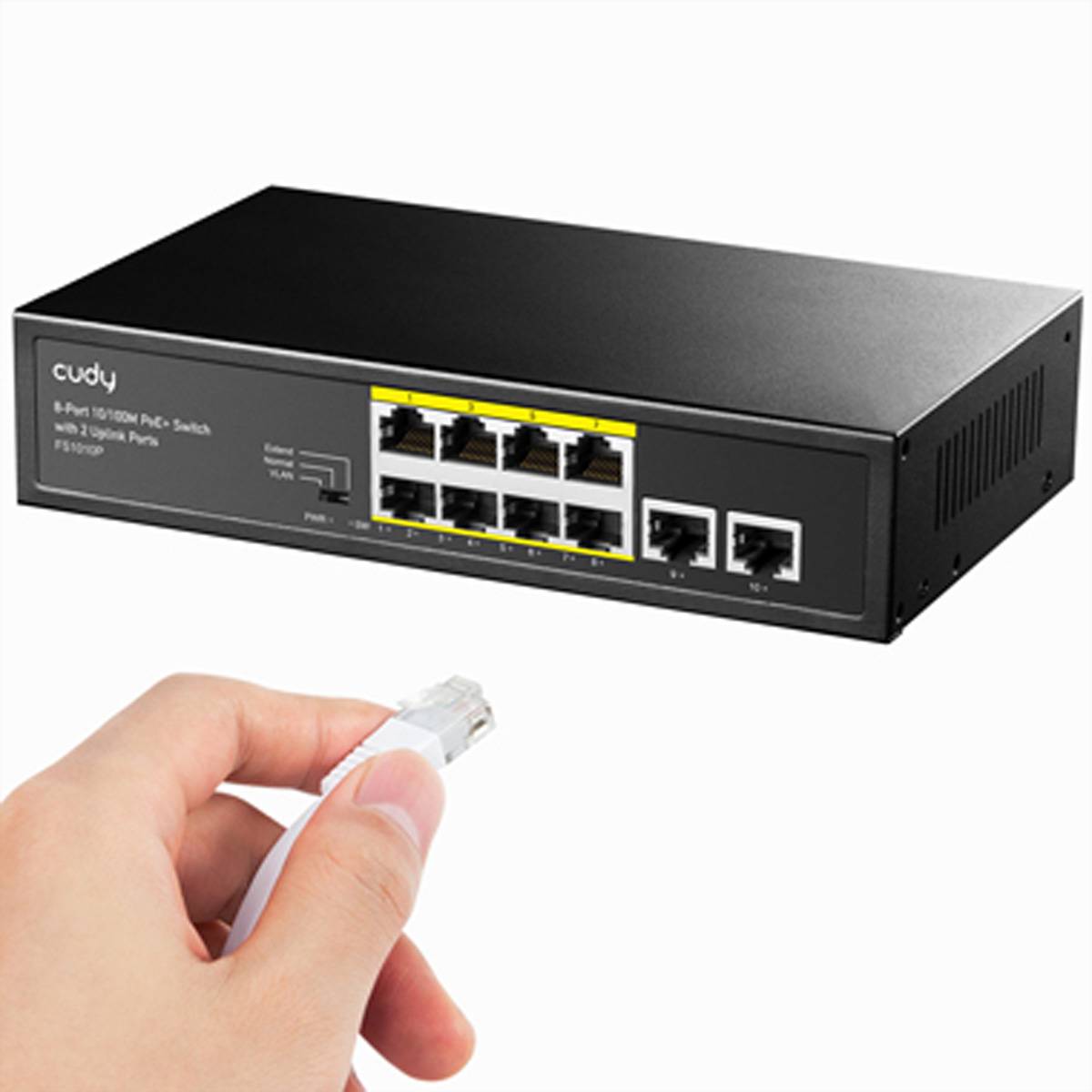

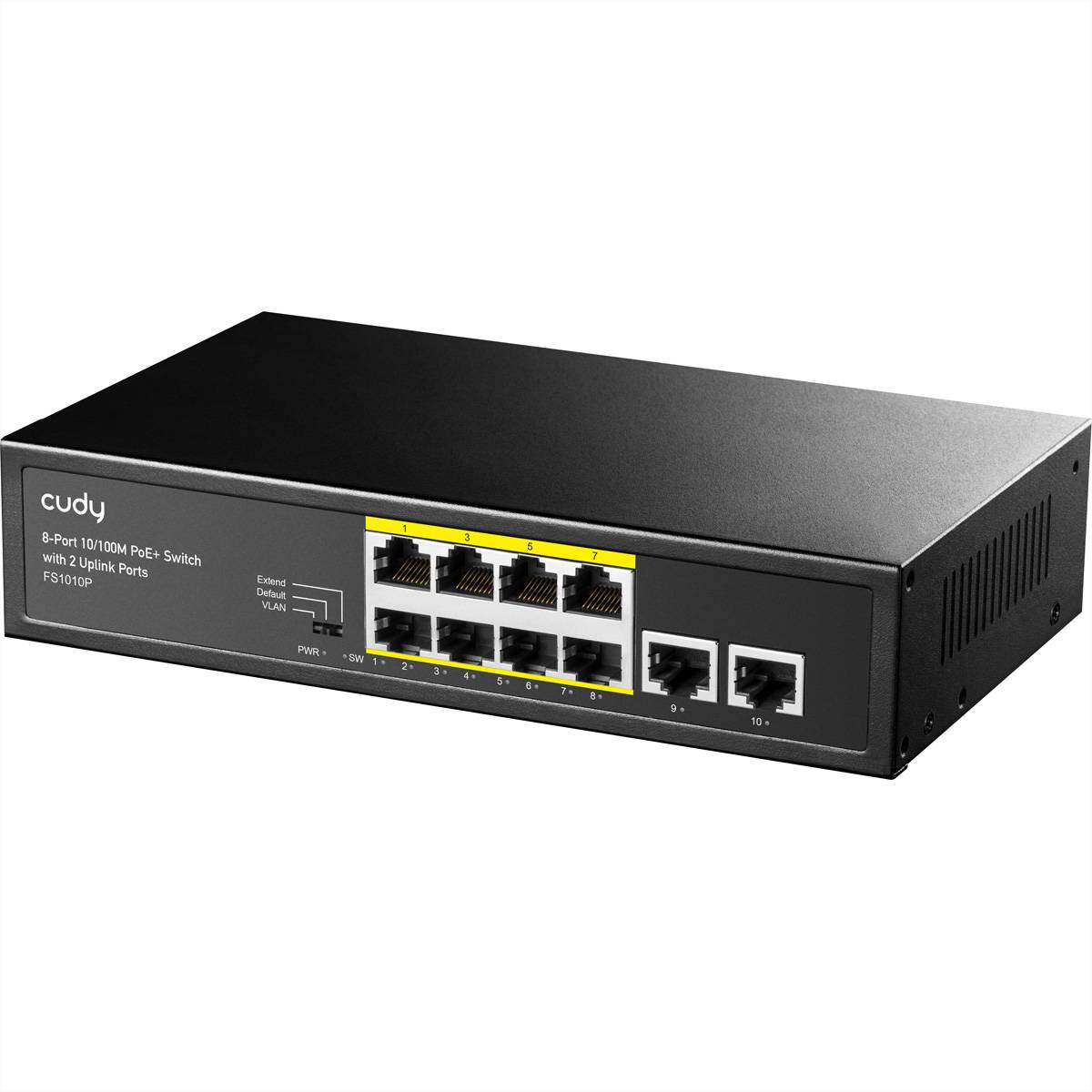

Name: CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W
Brand: cudy
SKU: 3798927

CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W-0

CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W-1

CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W-2

CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W-3

CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy FS101010P Network-Switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 10
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX
MAC address table: 2048 entries Routing/switching capacity: 2 Gb/s.
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

LAN transfer rate: 100 MBit/s

Transfer rate: 10 / 100 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 10

10/100 Mbps ports: 10 x

Weight: 610 g

Width: 200 mm

Height: 45 mm

Depth: 120 mm

Type: Cudy FS1010P switch di rete Fast Ethernet (10/100) Supporto Power over Ethernet

Interfaces: RJ45

Factory colour: Black

Current consumption: 120 W

Material (details): Metal

Power consumption (ON): 2 W

Power supply (details): 100 - 240 V

UKCA: yes

Fanless: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 10

Total Power over Ethernet (PoE) budget: 120 W

Packet buffer memory: 0.25 MB

Storage relative humidity (H-H): 10 - 95 %

Switching capacity: 2 Gbit/s

Power over Ethernet (PoE) power per port: 30 W

Products per shipping (inner) case: 16 Stück(e)

Flow control support: yes

Power over Ethernet (PoE): yes

Store-and-forward: yes

Quick start guide: yes

Half duplex: yes

Mean time between failures (MTBF): 50000 h

Full duplex: yes

MAC address table: 2048 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -40 - 70 °C

Package weight: 926 g

Surge protection voltage: 4 kV

Forwarding rate: 1.488 Mpps

Plug and Play: yes

Surge protection: yes

Power consumption (max): 120 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798927 CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W

User & Safety Instructions

User & Safety Instructions 3798927 CUDY FS101010P 8-port 10/100M PoE+ switch 2 uplink ports 120W

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

Simplify PoE management

Extend the PoE range. Increase client security.

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures

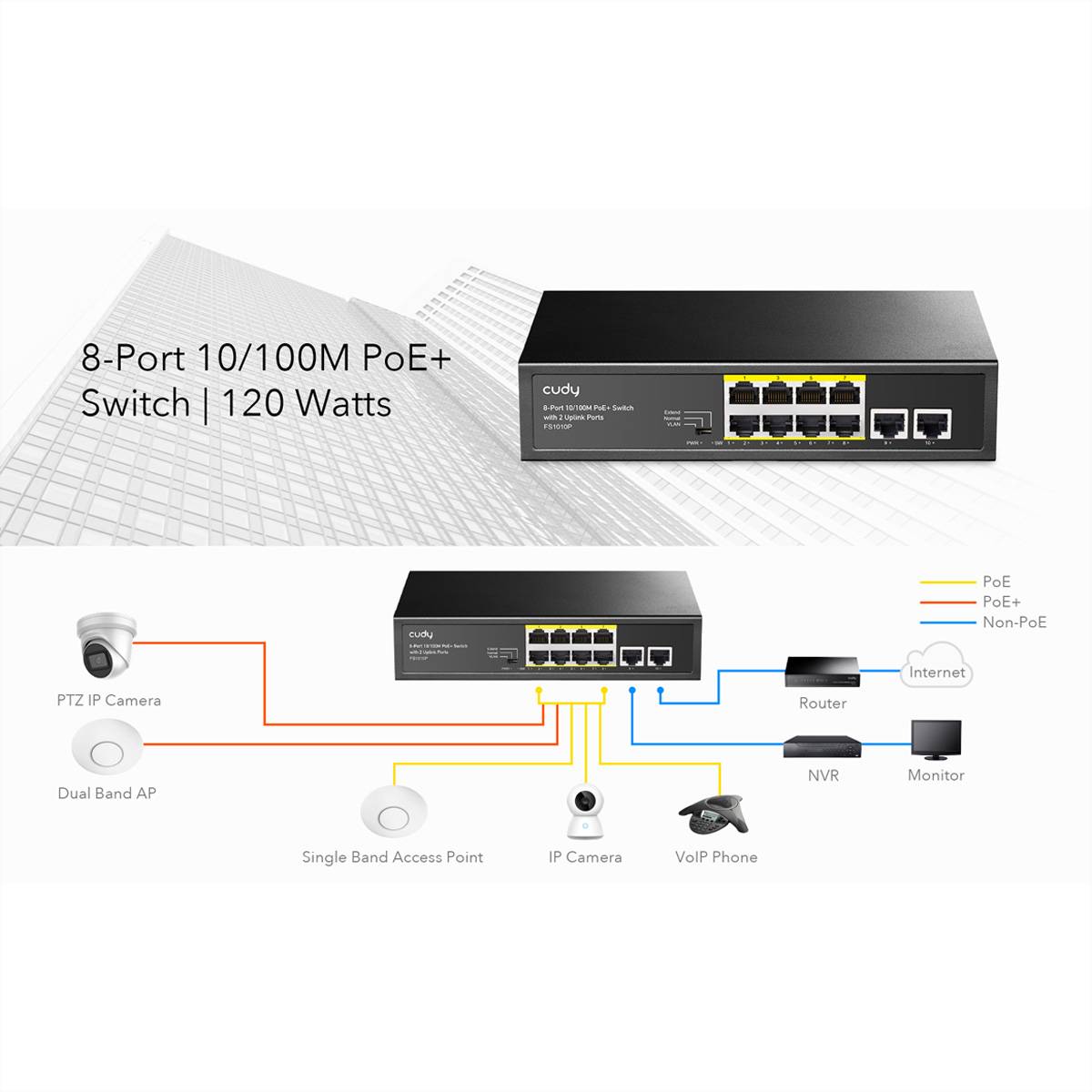

Versatile scenarios

Monitoring

Office networks

WLAN on campus

Access and signage
