Name: CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W
Brand: cudy
SKU: 3798929

CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W-0

CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W-1

CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W-2

CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W-3

CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy FS1018PS1 Network-Switch Fast Ethernet (10/100) Power over Ethernet (PoE) gray

Number of basic switching RJ-45 Ethernet ports: 16
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T, 1000BASE-X
MAC address table: 2048 entries Routing/switching capacity: 9.2 Gb/s.
Rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 7200 MBit/s

Ethernet ports: 18

SFP ports: 1 x

10/100 Mbps ports: 16 x

10/100/1000 Mbps ports: 2 x

Weight: 1.59 kg

Width: 320 mm

Height: 45 mm

Depth: 207 mm

Type: Cudy FS1018PS1 switch di rete Fast Ethernet (10/100) Supporto Power over Etherne

Interfaces: RJ45

Factory colour: Grey

Material (details): Metal

Power supply (details): 100 - 240 V

UKCA: yes

Power over Ethernet (PoE) ports quantity: 16

Operating temperature (T-T): 0 - 40 °C

Combo SFP ports quantity: 2

Basic switching RJ-45 Ethernet ports quantity: 16

Total Power over Ethernet (PoE) budget: 200 W

Packet buffer memory: 0.375 MB

Storage relative humidity (H-H): 10 - 95 %

Switching capacity: 9.2 Gbit/s

Rack mount kit: yes

Power over Ethernet (PoE) power per port: 30 W

Flow control support: yes

Power over Ethernet (PoE): yes

Rack mounting: yes

MAC address table: 2048 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 2.19 kg

Forwarding rate: 6.844 Mpps

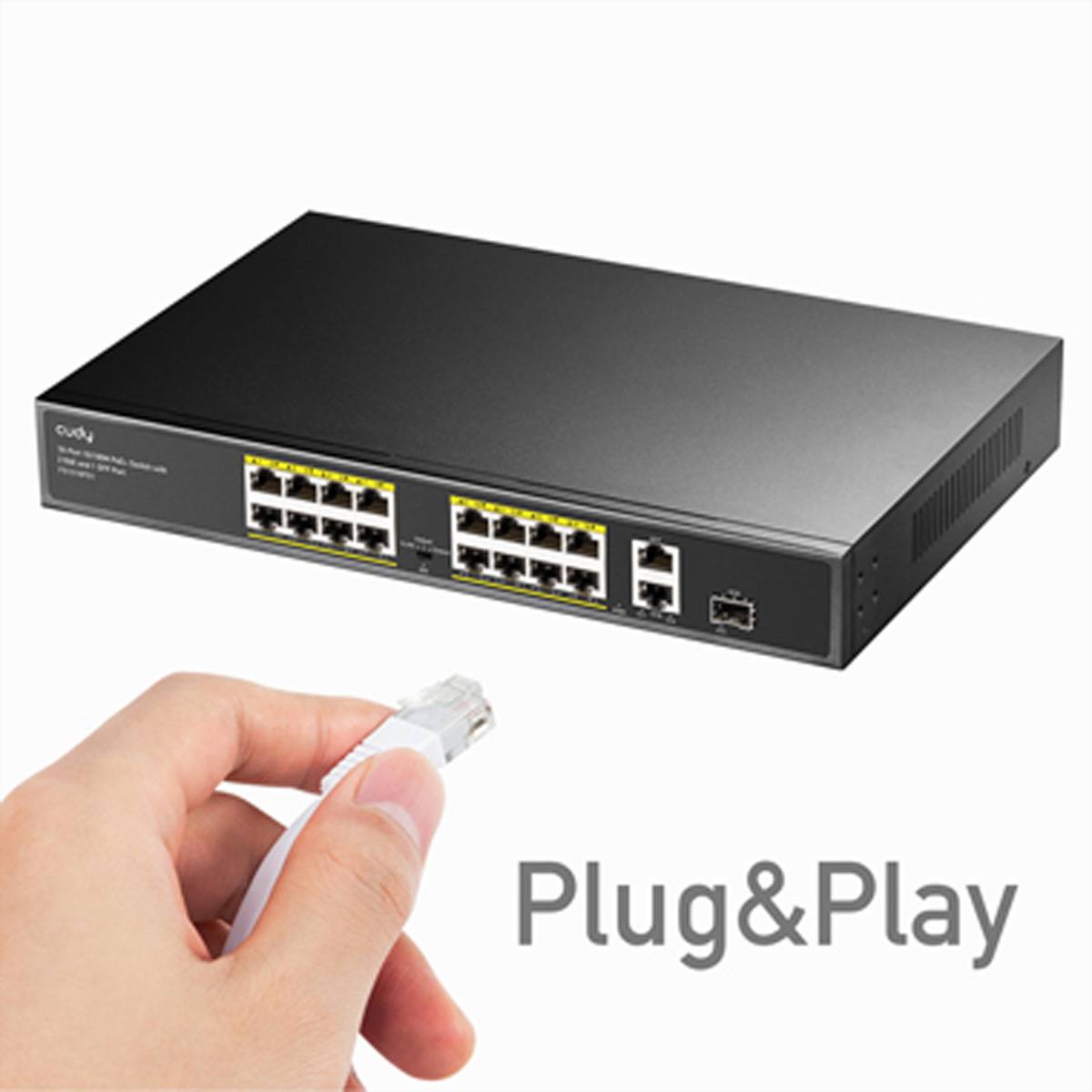

Plug and Play: yes

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798929 CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W

User & Safety Instructions

User & Safety Instructions 3798929 CUDY FS1018PS1 16-port 10/100M PoE+ switch 2 gigabit uplink 1 SFP port 200W

Description

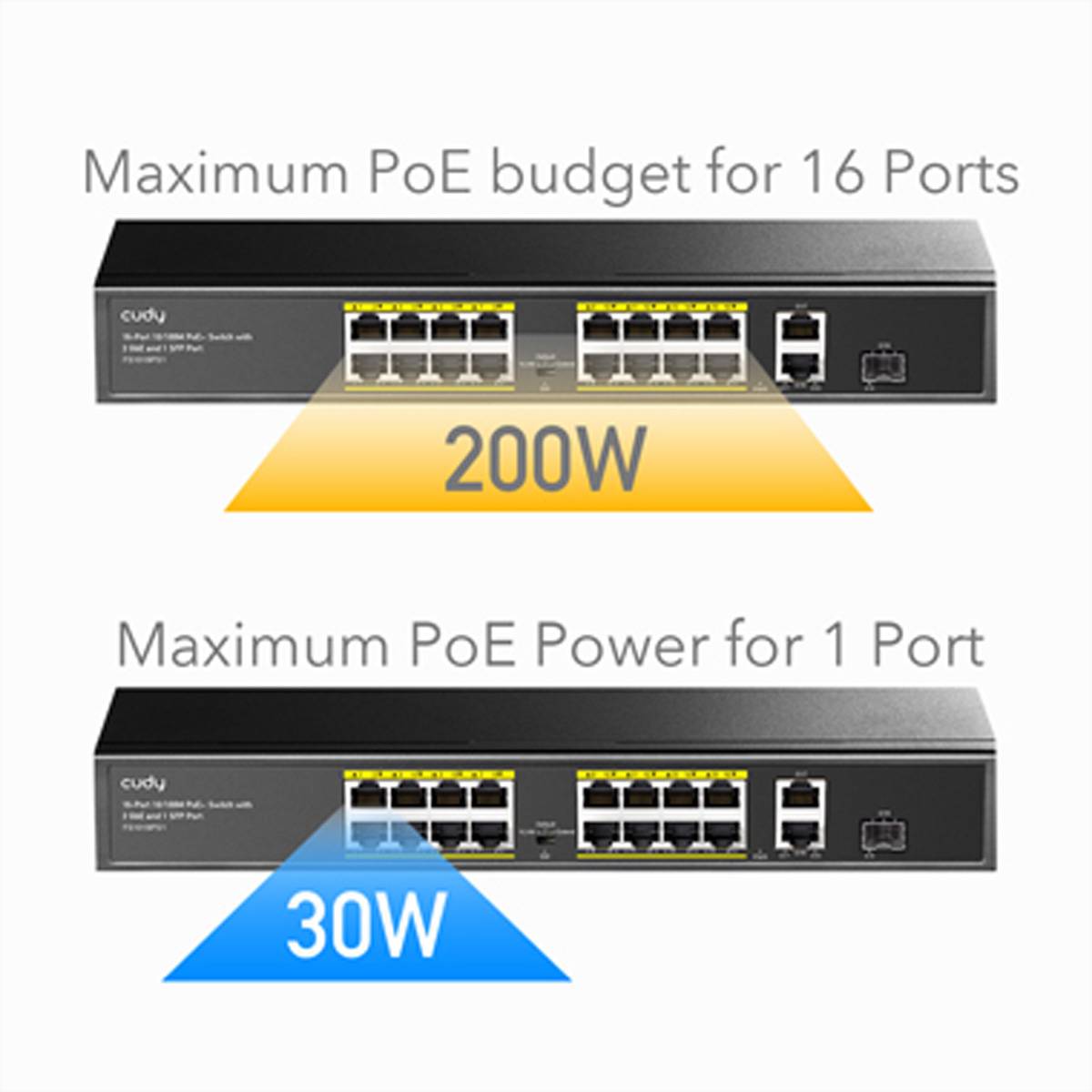

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

PoE insights made easy for installers

Extend the PoE range. Increase client security.

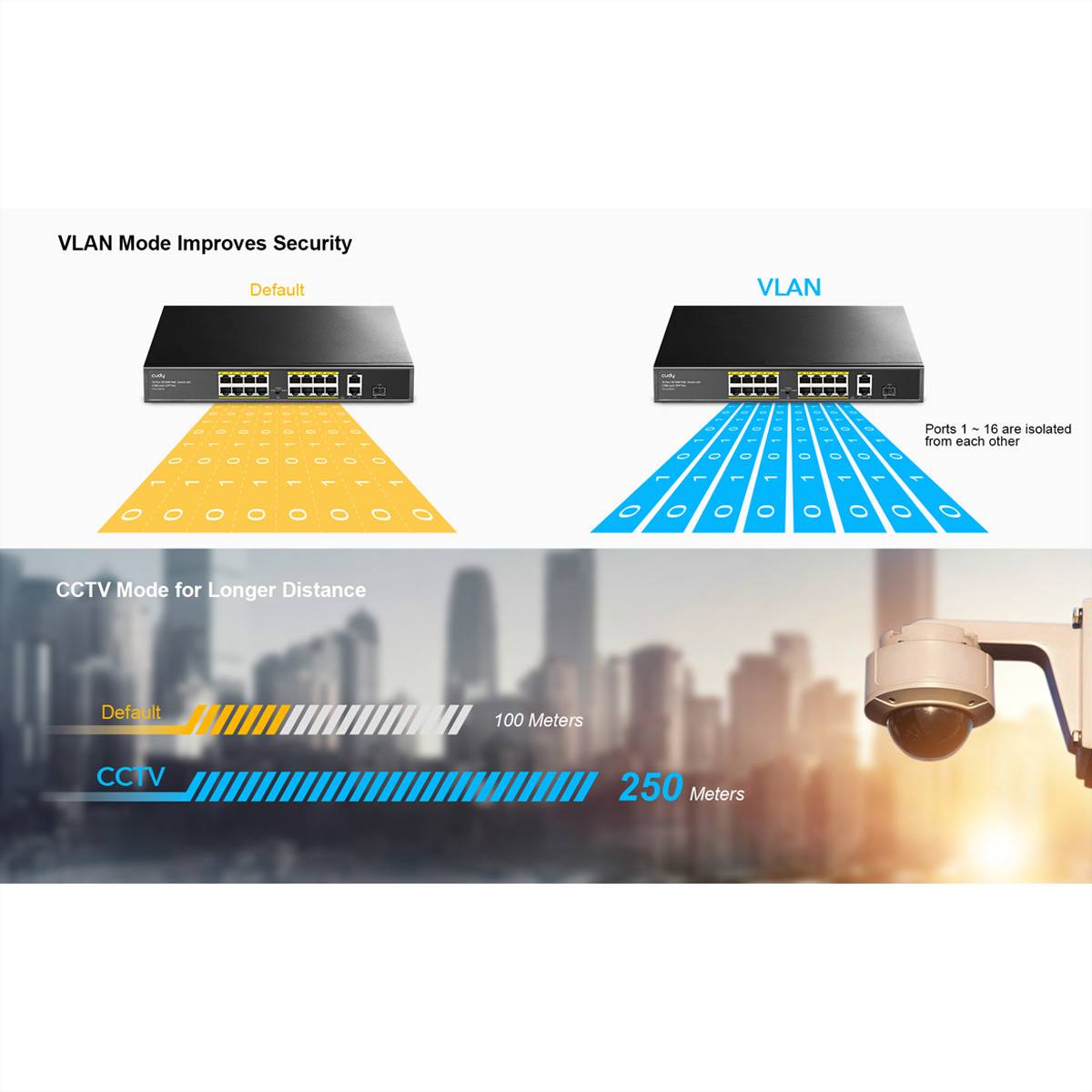

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures
