Name: CUDY FS105D 5-port 10/100 desktop switch
Brand: cudy
SKU: 3798913

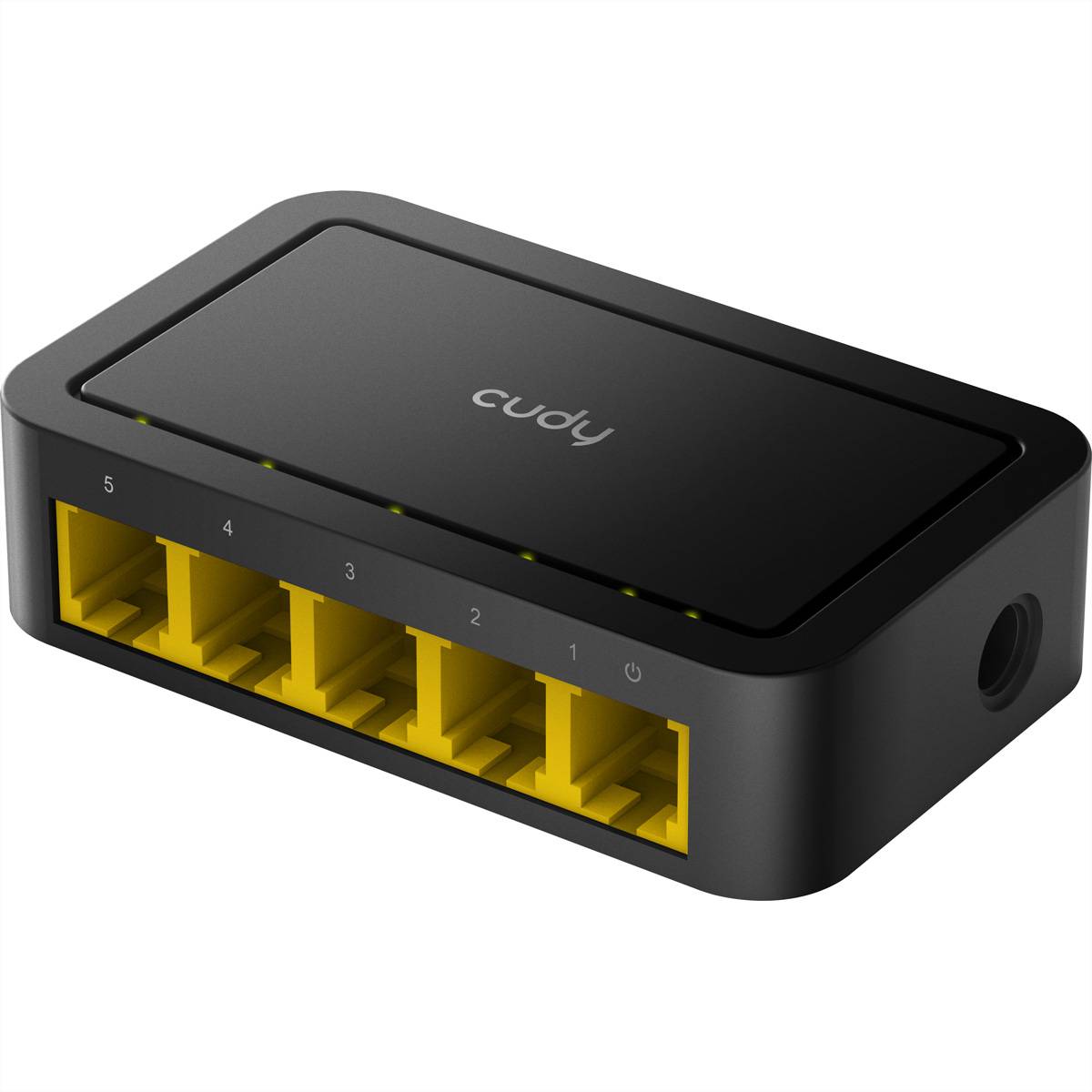

CUDY FS105D 5-port 10/100 desktop switch-0

CUDY FS105D 5-port 10/100 desktop switch-1

CUDY FS105D 5-port 10/100 desktop switch-2

CUDY FS105D 5-port 10/100 desktop switch-3

CUDY FS105D 5-port 10/100 desktop switch-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy FS105D Network-Switch Unmanaged Fast Ethernet (10/100) white

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 5
Cat3, Cat5 10BASE-T, 100Base-TX
MAC address table: 512 entries Routing/switching capacity: 1 Gb/s.
DC power supply included

Technical specifications

Power source: Direct current

Product type: Network switch

Transfer rate: 10 / 100 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 5

10/100 Mbps ports: 5 x

Weight: 46.6 g

Width: 88 mm

Height: 24 mm

Depth: 52.5 mm

Type: FS105D - Fast Ethernet (10/100) - Vollduplex

Interfaces: RJ45

Factory colour: White

Operating voltage: 5 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 5

Packet buffer memory: 0.448 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 1 Gbit/s

Manual: yes

Half duplex: yes

Full duplex: yes

MAC address table: 512 Eintragungen

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -40 - 70 °C

Package weight: 100.2 g

Forwarding rate: 0.744 Mpps

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798913 CUDY FS105D 5-port 10/100 desktop switch

User & Safety Instructions

User & Safety Instructions 3798913 CUDY FS105D 5-port 10/100 desktop switch

Description

A plug-and-play network hub

Connect office computers to a wired network

Boost your home devices with stable Ethernet

This text is machine translated.

Features

5× Fast Ethernet ports
Power supply via USB-C
Desktop, wall mounting
88×52.5×24 mm (3.46×2.07×0.94″)
47 g (1.64 oz)

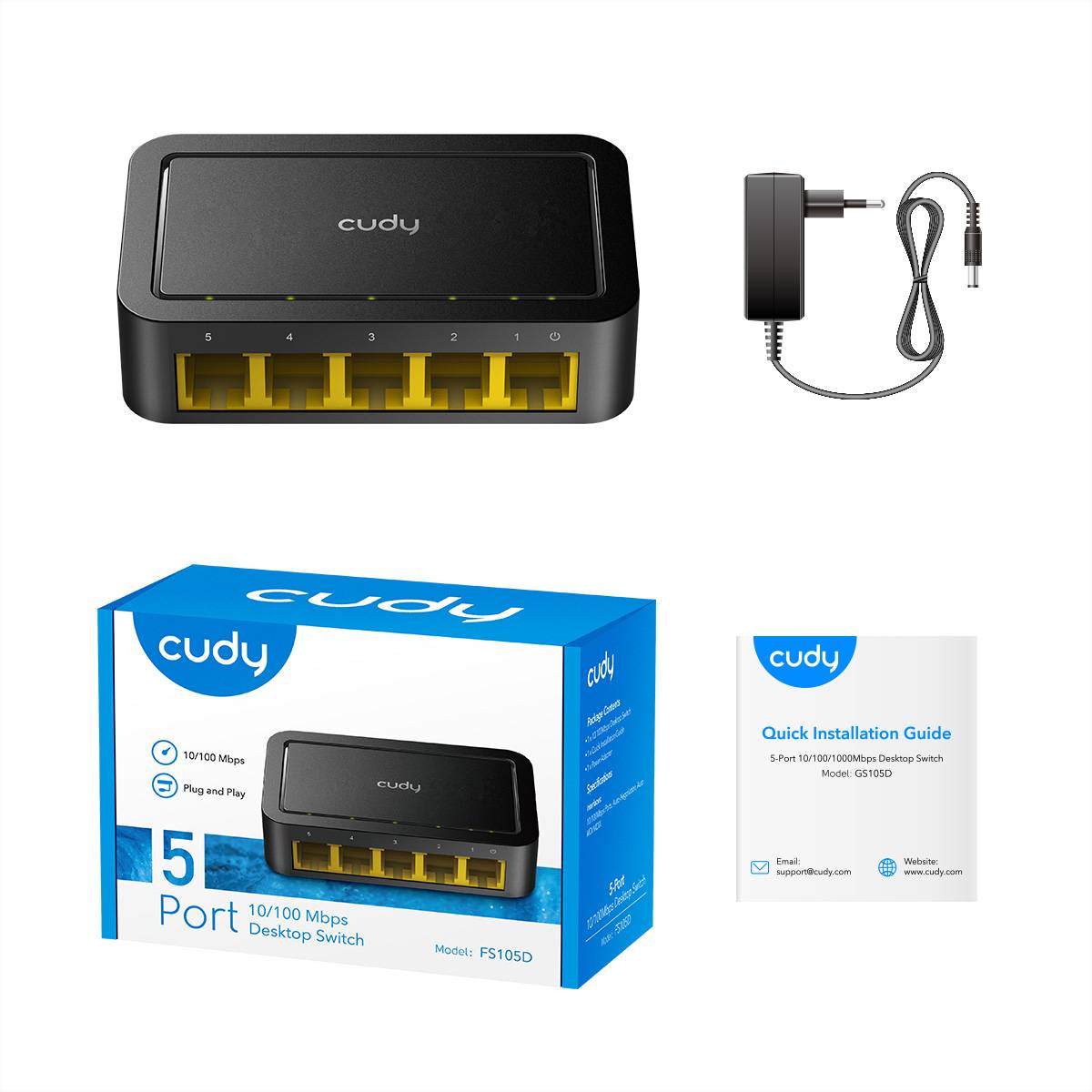

Scope of delivery

Switch, power supply, user manual

Description

A plug-and-play network hub

Connect office computers to a wired network

Boost your home devices with stable Ethernet

This text is machine translated.
