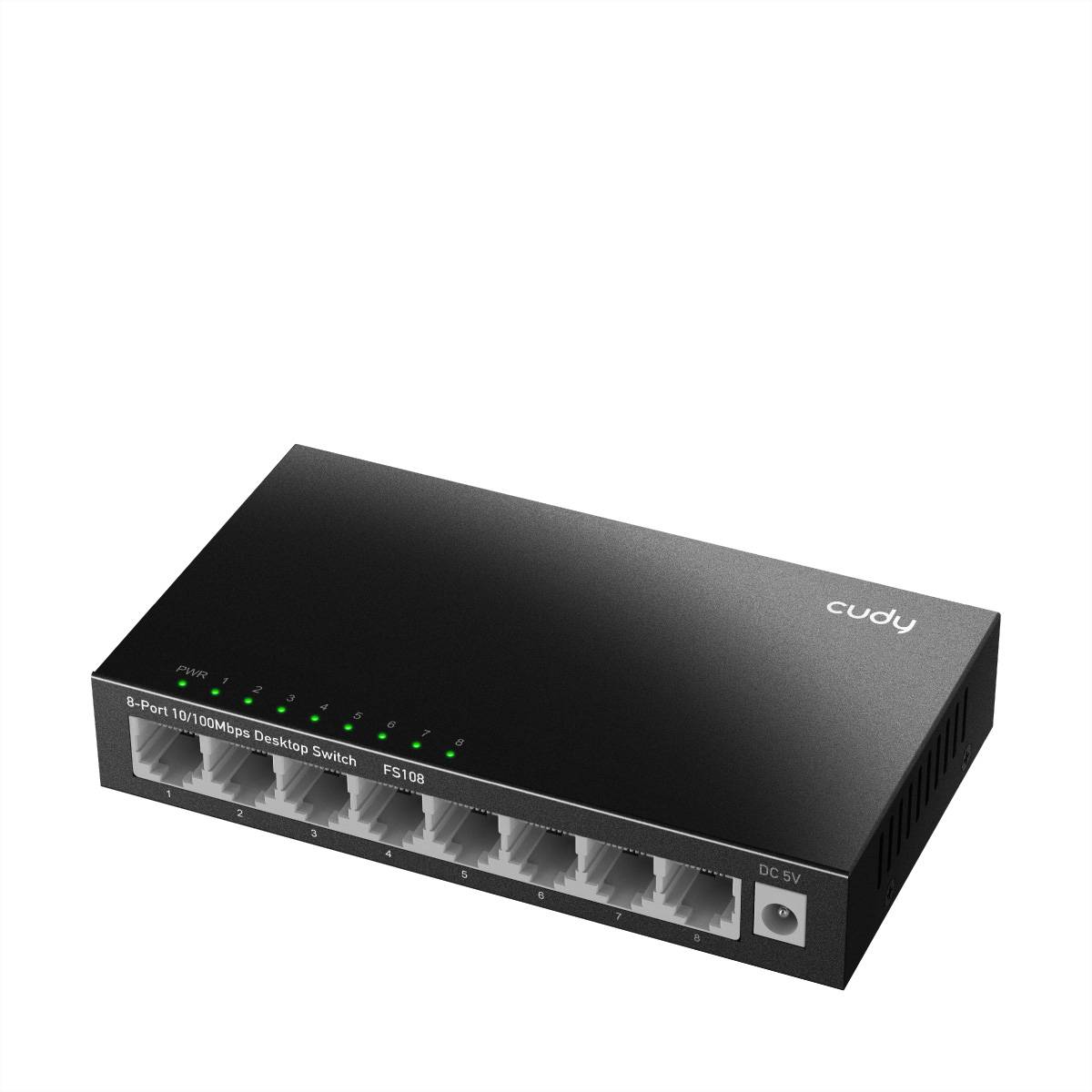

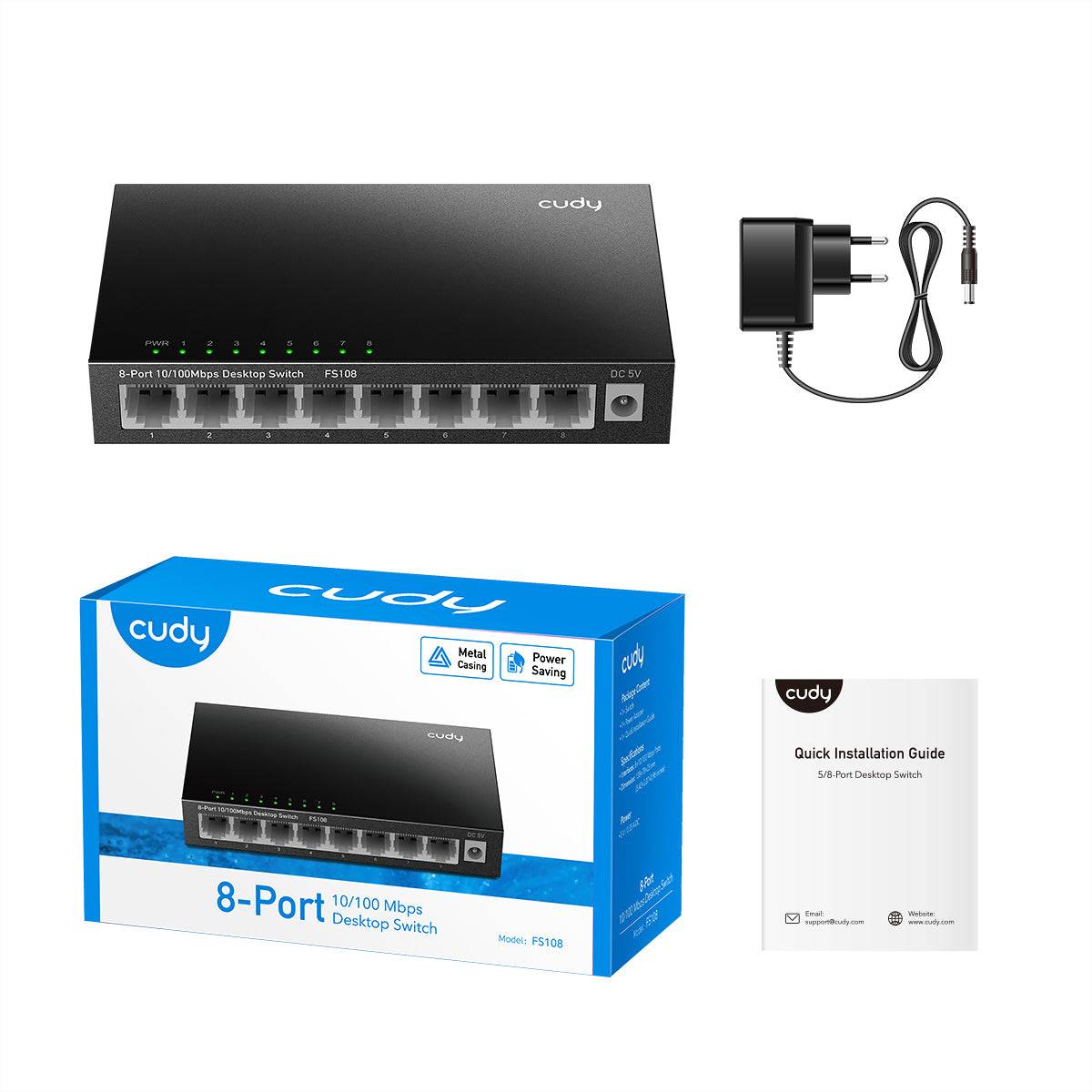

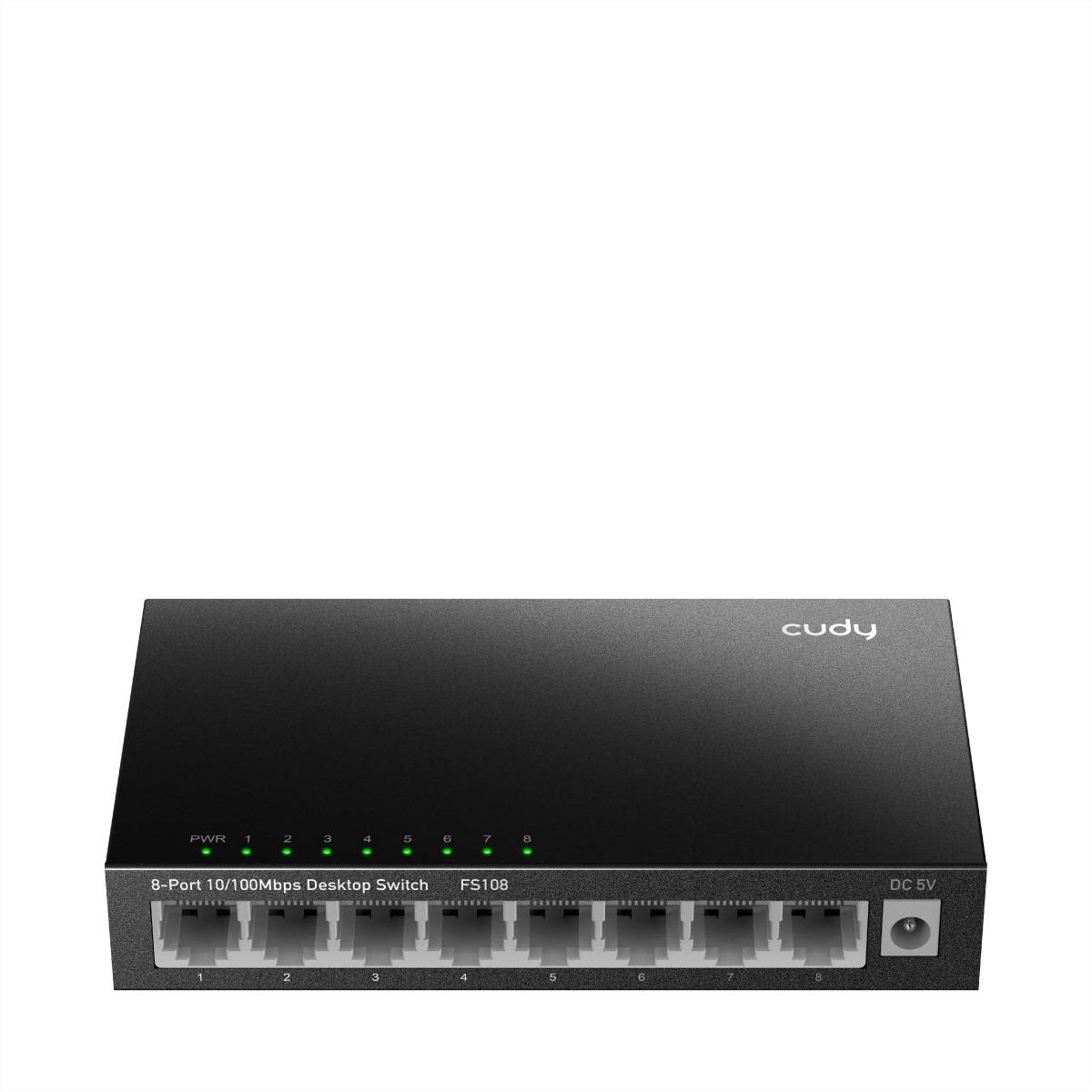

Name: CUDY FS108 8-port 10/100 desktop switch
Brand: cudy
SKU: 3798918

CUDY FS108 8-port 10/100 desktop switch-0

CUDY FS108 8-port 10/100 desktop switch-1

CUDY FS108 8-port 10/100 desktop switch-2

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy FS108 Network-Switch Unmanaged Fast Ethernet (10/100) black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 8
Cat3, Cat5 10BASE-T, 100Base-TX
MAC address table: 512 entries Routing/switching capacity: 1.6 Gb/s.
DC power supply included

Technical specifications

Power source: Direct current

Product type: Network switch

Ethernet ports: 8

10/100 Mbps ports: 8 x

Weight: 200 g

Width: 138 mm

Height: 25 mm

Depth: 78 mm

Type: FS108 8-Port 10/100 Metal Switch - Switch - 0,1 Gbps

Factory colour: Black

Material (details): Metal

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Packet buffer memory: 0.448 MB

Storage relative humidity (H-H): 5 - 95 %

Auto-negotiation: yes

Switching capacity: 1.6 Gbit/s

Power over Ethernet (PoE): no

Store-and-forward: yes

MAC address table: 512 Eintragungen

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 0 - 100 %

10G support: no

Storage temperature (T-T): -40 - 75 °C

Package weight: 323 g

Forwarding rate: 1.1904 Mpps

Power consumption (max): 1 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798918 CUDY FS108 8-port 10/100 desktop switch

User & Safety Instructions

User & Safety Instructions 3798918 CUDY FS108 8-port 10/100 desktop switch

Description

Reliable transmission

A packet buffer prevents packet loss and improves the reliability of your network.

Compact design

Place it in a telecommunication or cable connection box, without having to plan for additional space.

Energy-efficient chipset

Extremely energy efficient with a maximum power consumption of 1 W and a standby power consumption of 0.25 W.

Wall mounting

Has two mounting holes on the bottom of the housing to allow wall mounting.

Expand network for more devices

Connect the office computers to the wired network.

Improve your home devices with stable Ethernet

This text is machine translated.
