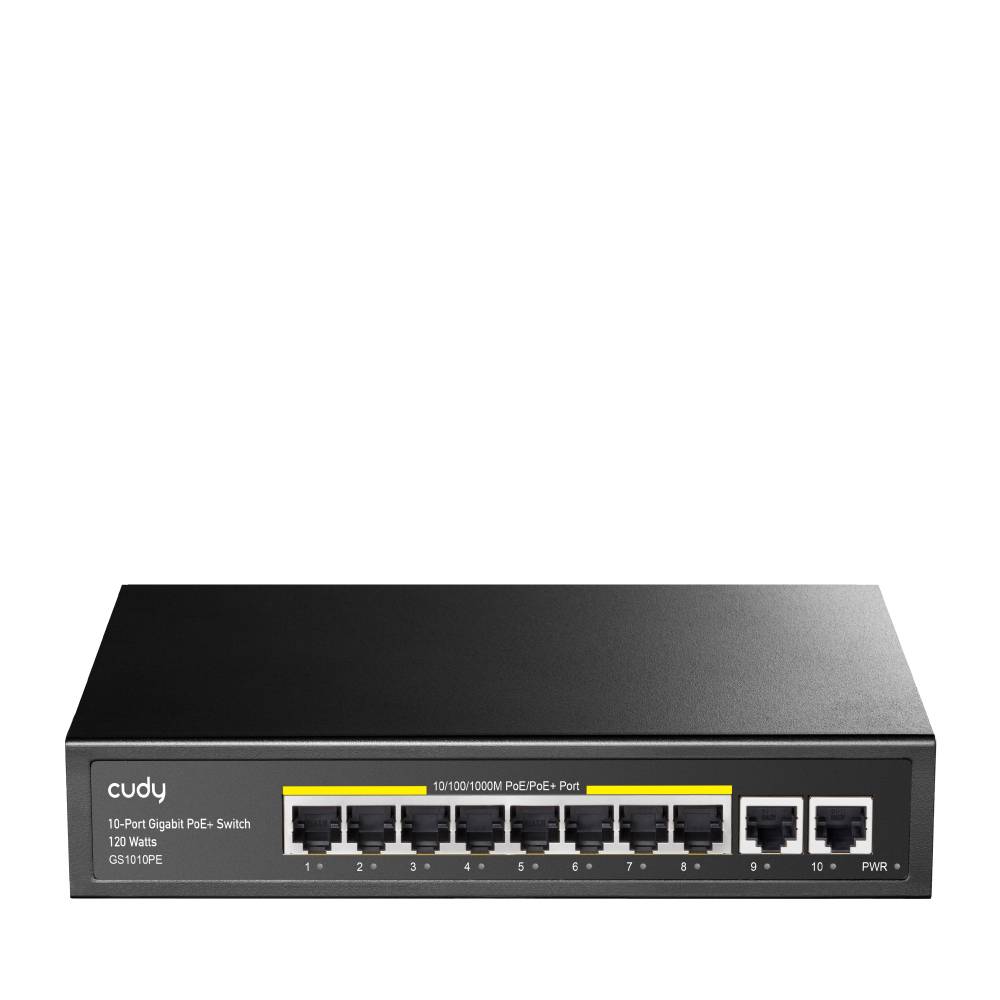

Name: cudy GS1010PE CUDY GS1010PE 8-Port Gigabit PoE+ Switch Network switch
Brand: cudy
SKU: 3798930

cudy GS1010PE CUDY GS1010PE 8-Port Gigabit PoE+ Switch Network switch-0

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy GS1010PE network switch unmanaged gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 10
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T.
MAC address table: 2048 entries Routing/switching capacity: 20 Gb/s.
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

Weight: 785 g

Width: 220 mm

Height: 40 mm

Depth: 163 mm

Type: CUDY GS1010PE 8-Port Gigabit PoE+ Switch

Factory colour: Black

Material (details): Metal

Power consumption (ON): 10 W

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 10

Total Power over Ethernet (PoE) budget: 120 W

Packet buffer memory: 0.25 MB

Storage relative humidity (H-H): 10 - 95 %

Wall mountable: yes

Switching capacity: 20 Gbit/s

Power over Ethernet (PoE) power per port: 30 W

Flow control support: yes

Power over Ethernet (PoE): yes

Stackable: no

Store-and-forward: yes

MAC address table: 2048 Eintragungen

Number of VLANs: 4096

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 1.04 kg

Forwarding rate: 14.88 Mpps

Plug and Play: yes

Power consumption (max): 120 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798930 cudy GS1010PE CUDY GS1010PE 8-Port Gigabit PoE+ Switch Network switch

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

Optimized PoE management – bei popular installers

Integrated modes for practical applications

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures

This text is machine translated.
