Name: cudy GS1016 CUDY GS1016 16-Port Gigabit Metall Switc Network switch
Brand: cudy
SKU: 3798924

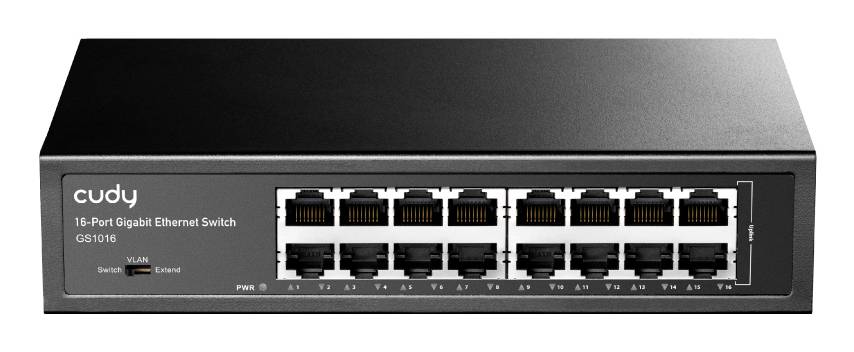

Front view of a Cudy 16-port Gigabit Ethernet switch with two rows of network ports and status indicators.

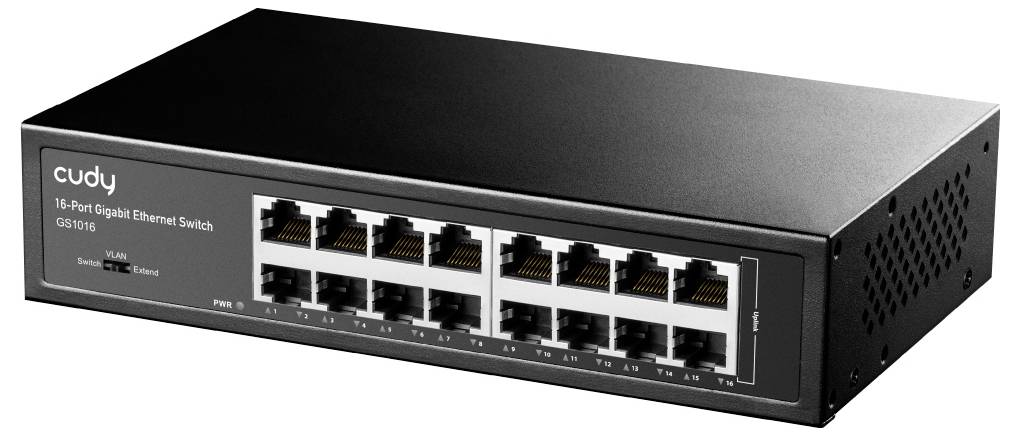

Black Cudy 16-port gigabit Ethernet switch with 16 RJ45 ports on the front panel.

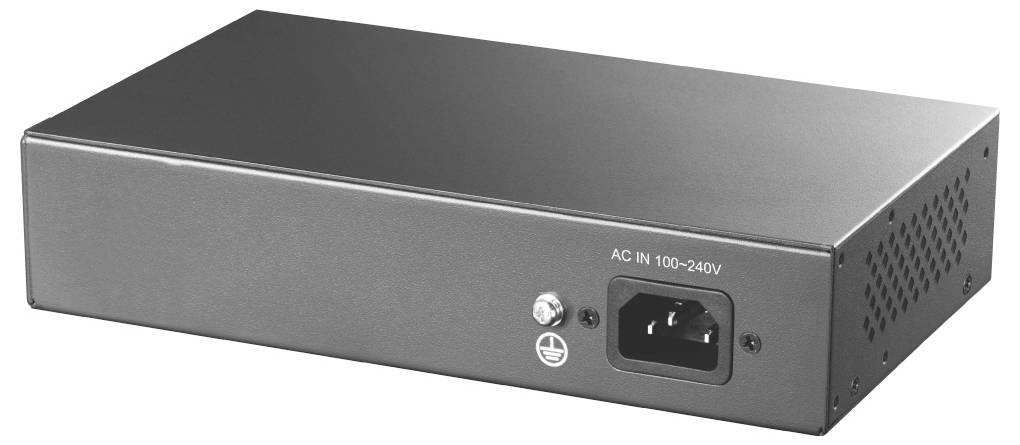

Black rectangular electronic box showing an AC input socket labeled 'AC IN 100-240V' on the front panel.

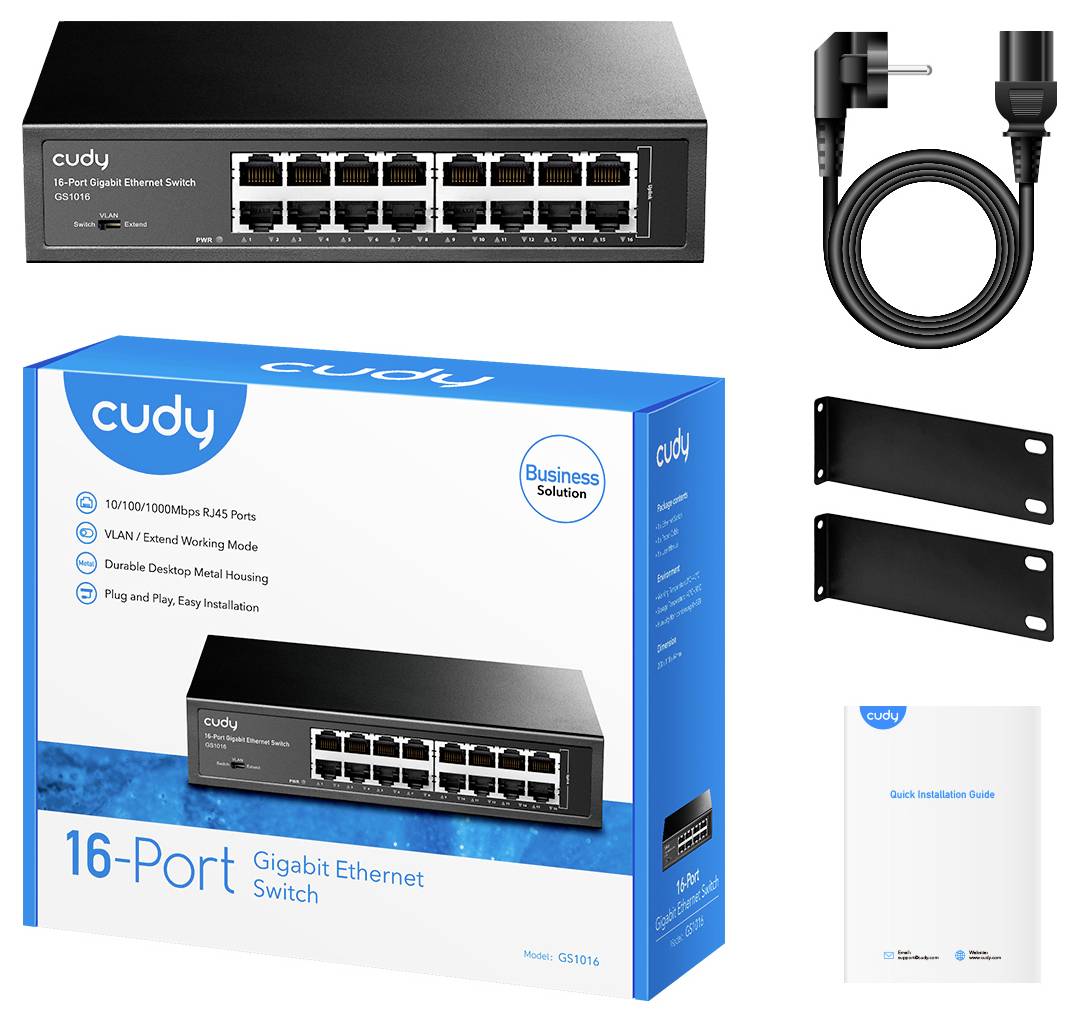

Product image of a Cudy 16-port gigabit Ethernet switch with power cable, rackmount brackets, and quick installation guide beside the retail box.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy GS1016 Network Switch Unmanaged Gigabit Ethernet (10/100/1000) black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 16
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T.
MAC address table: 8192 entries Routing/switching capacity: 32 Gb/s.
Rack installation
AC power supply included

Technical specifications

Energy source: AC

Product type: Network switch

Weight: 0.000

Width: 118 mm

Height: 44 mm

Depth: 200 mm

Type: CUDY GS1016 16-Port Gigabit Metall Switc

Factory colour: Black

Power supply (details): 90 - 260 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 32 Gbit/s

Flow control support: yes

Store-and-forward: yes

Gigabit Ethernet (copper) ports quantity: 16

Manual: yes

Rack mounting: yes

MAC address table: 8192 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 23.808 Mpps

Power consumption (max): 15 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798924 cudy GS1016 CUDY GS1016 16-Port Gigabit Metall Switc Network switch

Description

Standard/VLAN/Extended Multi mode

VLAN mode

Protect your clients from client-side hacking attacks. In VLAN mode, downlink ports 1–14 can only communicate with the uplink ports.

Advanced mode

The transfer distance of ports 1-14 is extended to a maximum of 250 meters and the installation is simplified. (The speed of these ports is limited to 10 Mbps.)

DSCP/802.1p QoS

The packages are provided with DSCP headers and those with higher priority are forwarded first.

IGMP monitoring

Identifies the multicast groups associated with the switch and sends data to the exact ports instead of distributing it.

Avoid loops

Blocks the ports automatically when a loop is detected in the network, preventing downtime due to misuse.

Cooling without fans

Low heat development and fan-less design are especially suitable for noise-sensitive environments.

Installation and dimensions

Mounting brackets included in the delivery

Standard 1HE rack mounting

Versatile scenarios

Office network

Wi-Fi in the shopping center

Monitoring

ISP FTTB

This text is machine translated.
