Name: cudy GS1020PS2 CUDY GS1020PS2 16-Port Gigabit PoE+ Swit Network switch
Brand: cudy
SKU: 3798931

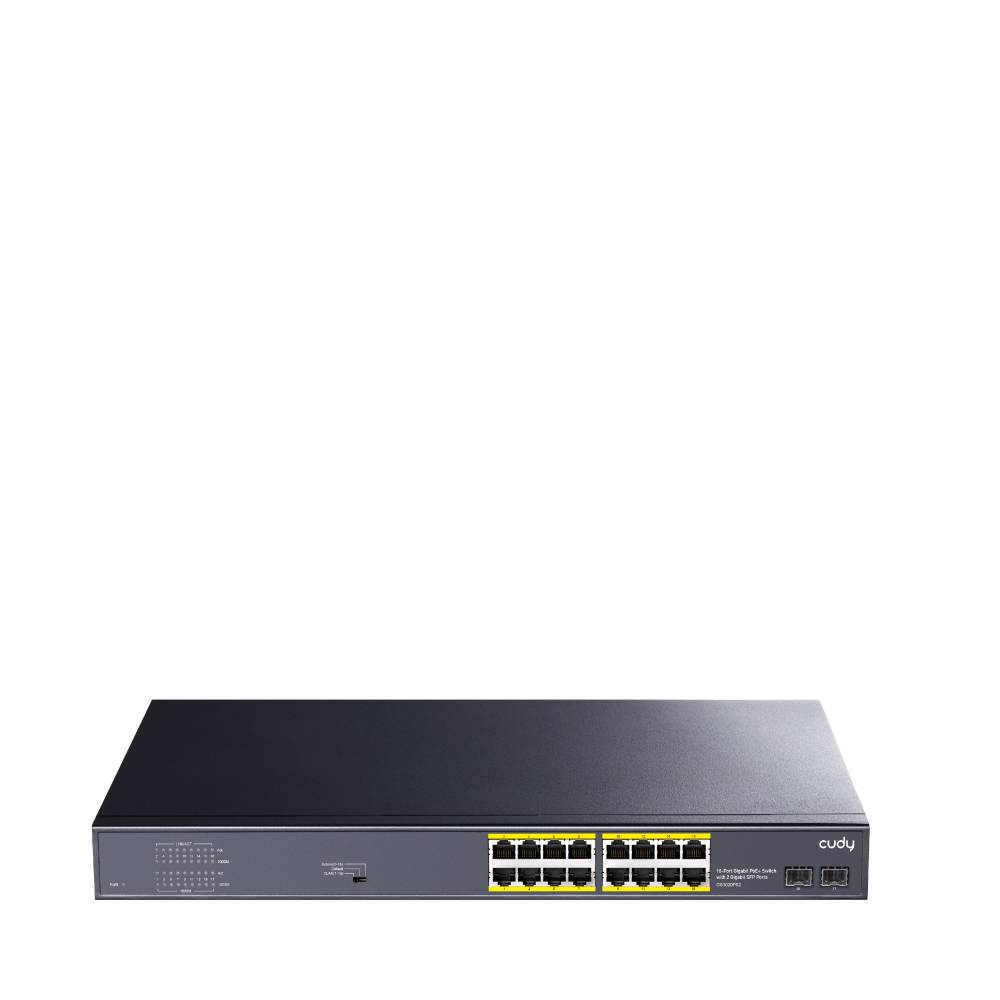

cudy GS1020PS2 CUDY GS1020PS2 16-Port Gigabit PoE+ Swit Network switch-0

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cudy GS1020PS2 network switch unmanaged gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) black

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 16
Cat5, Cat3, Cat4 10BASE-T, 100Base-TX, 1000BASE-TX
MAC address table: 8000 entries Routing/switching capacity: 36 Gb/s.
Rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Energy source: AC

Product type: Network switch

Weight: 2.6 kg

Width: 440 mm

Height: 44 mm

Depth: 204 mm

Type: CUDY GS1020PS2 16-Port Gigabit PoE+ Swit

Factory colour: Black

Material (details): Metal

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): -10 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 16

Basic switching RJ-45 Ethernet ports quantity: 16

Auto-sensing: yes

Total Power over Ethernet (PoE) budget: 200 W

Packet buffer memory: 0.5 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 36 Gbit/s

Rack mount kit: yes

Jumbo frames: 9600

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Power over Ethernet (PoE): yes

Jumbo frames support: yes

Store-and-forward: yes

Maximum transfer distance (Single-mode): 120000 m

Maximum transfer distance (Multi-mode): 2000 m

Rack mounting: yes

Mean time between failures (MTBF): 50000 h

MAC address table: 8000 Eintragungen

Auto MDI/MDI-X: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

Storage temperature (T-T): -40 - 85 °C

Package weight: 3.2 kg

Transmission distance (max): 120 km

Forwarding rate: 26.784 Mpps

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798931 cudy GS1020PS2 CUDY GS1020PS2 16-Port Gigabit PoE+ Swit Network switch

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

Optimized PoE management – bei popular installers

Integrated modes for practical applications

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures

Versatile scenarios

Monitoring

Office networks

WLAN on campus

Access and signage

This text is machine translated.
