Highlights & Details

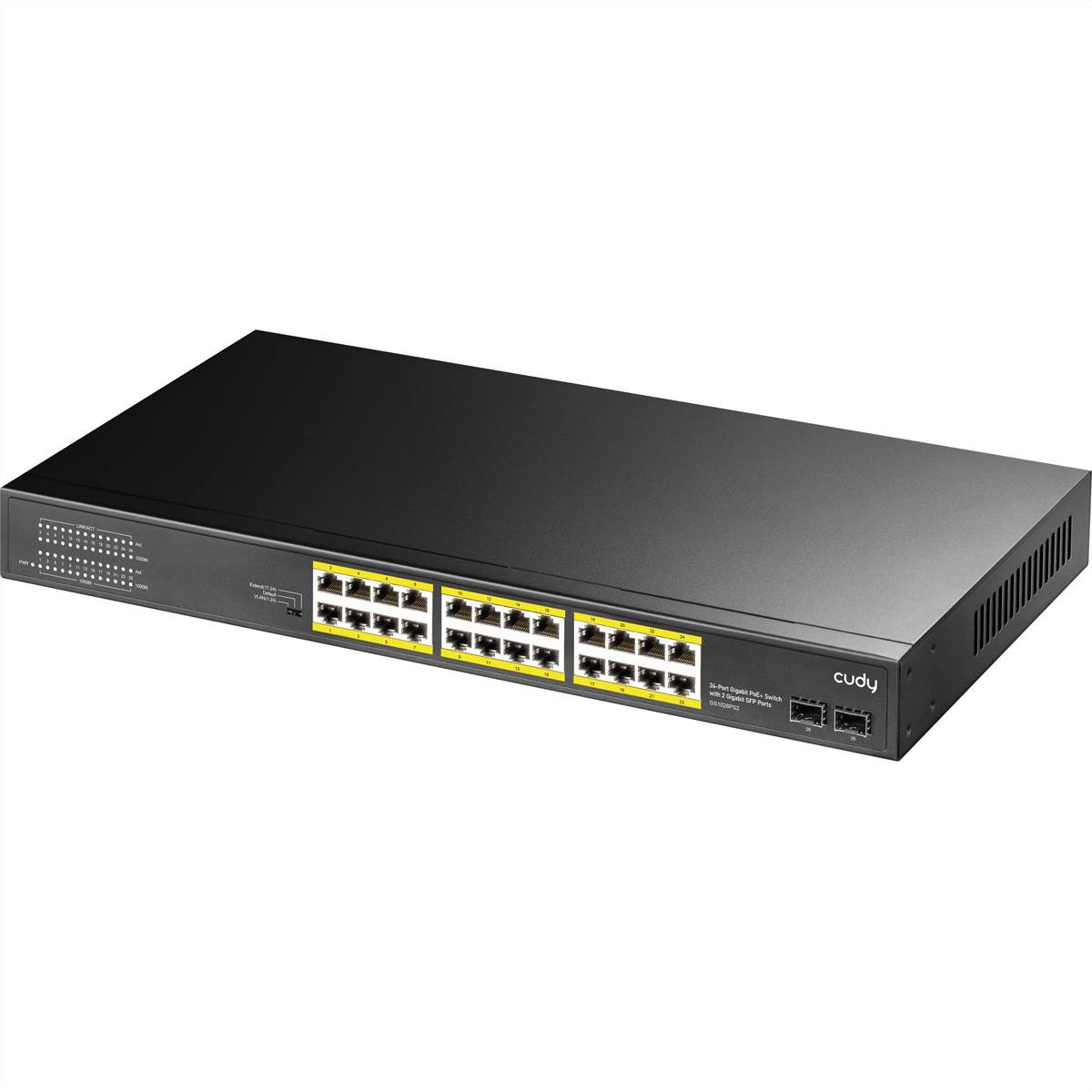

Cudy GS1028PS2 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Number of basic switching RJ-45 Ethernet ports: 24
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T, 1000BASE-X
MAC address table: 8192 entries Routing/switching capacity: 52 Gb/s.
Rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Optical cable type: SFP+
Number of fans: 2 fans
Energy source: AC

Product type: Network switch

Weight: 2.9 kg

Width: 440 mm

Height: 44 mm

Depth: 204 mm

Type: CUDY

Factory colour: Black

Material (details): Metal

Power supply (details): 90 - 260 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 300 W

Storage relative humidity (H-H): 10 - 95 %

Switching capacity: 52 Gbit/s

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Power over Ethernet (PoE): yes

Store-and-forward: yes

Rack mounting: yes

MAC address table: 8192 Eintragungen

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -40 - 70 °C

Package weight: 3.46 kg

Forwarding rate: 38.68 Mpps

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798932 CUDY GS1028PS2 24-port gigabit PoE+ switch 2 SFP ports 300W

User & Safety Instructions

User & Safety Instructions 3798932 CUDY GS1028PS2 24-port gigabit PoE+ switch 2 SFP ports 300W

Description

Reliable PoE for uninterrupted 24/7 operation

IEEE 802.3at/AF Up to 30 W per port.

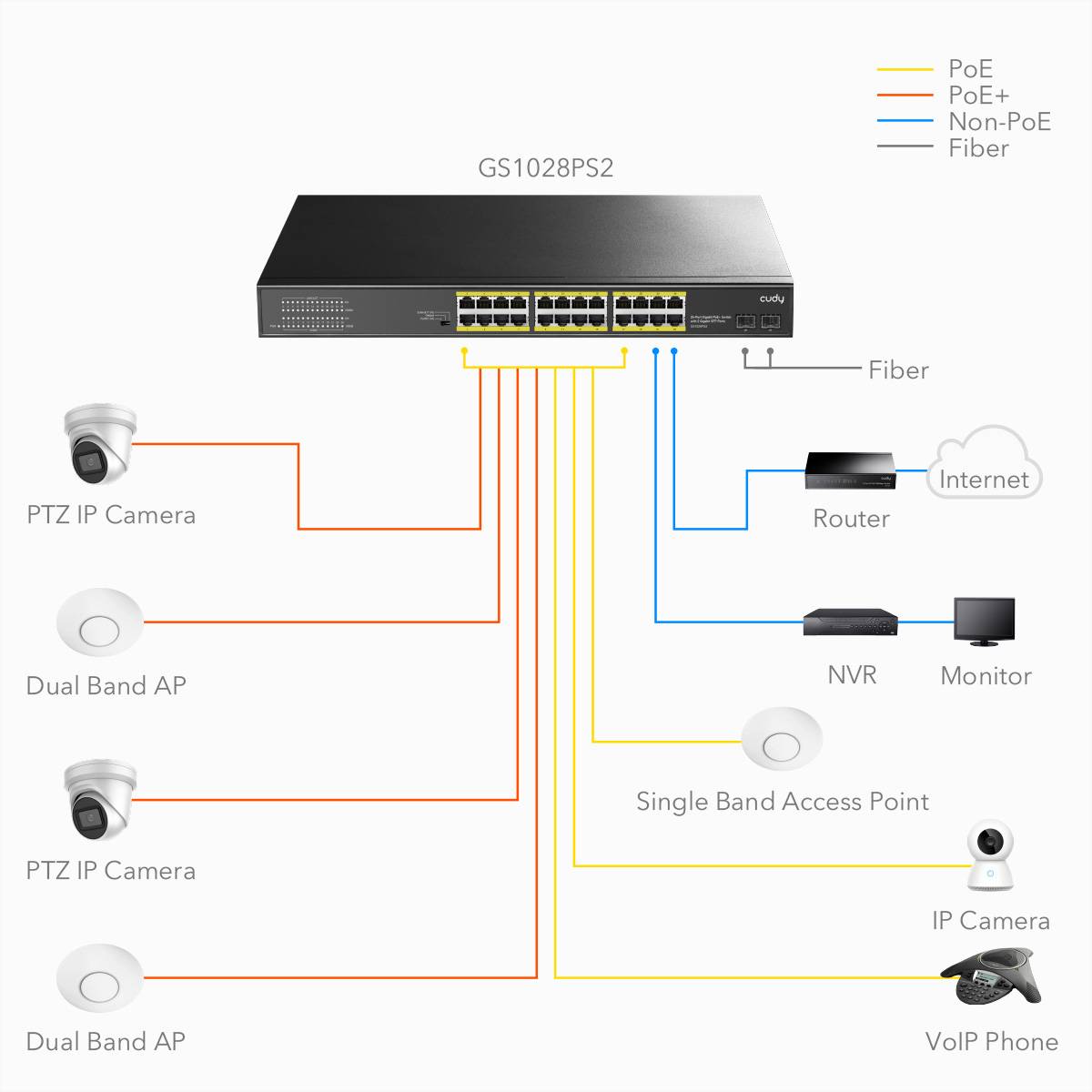

Each PoE port delivers up to 30WThanks to its high performance it is suitable for access points, IP-cameras, digital signage and most of the other PoE-devices.

PoE auto-restore

Activate the watchdog function to monitor the port activity. If a connected device freezes for 5 minutes and no data is transmitted, the watchdog automatically restarts the corresponding PoE port.

Optimized PoE management – bei popular installers

Integrated modes for practical applications

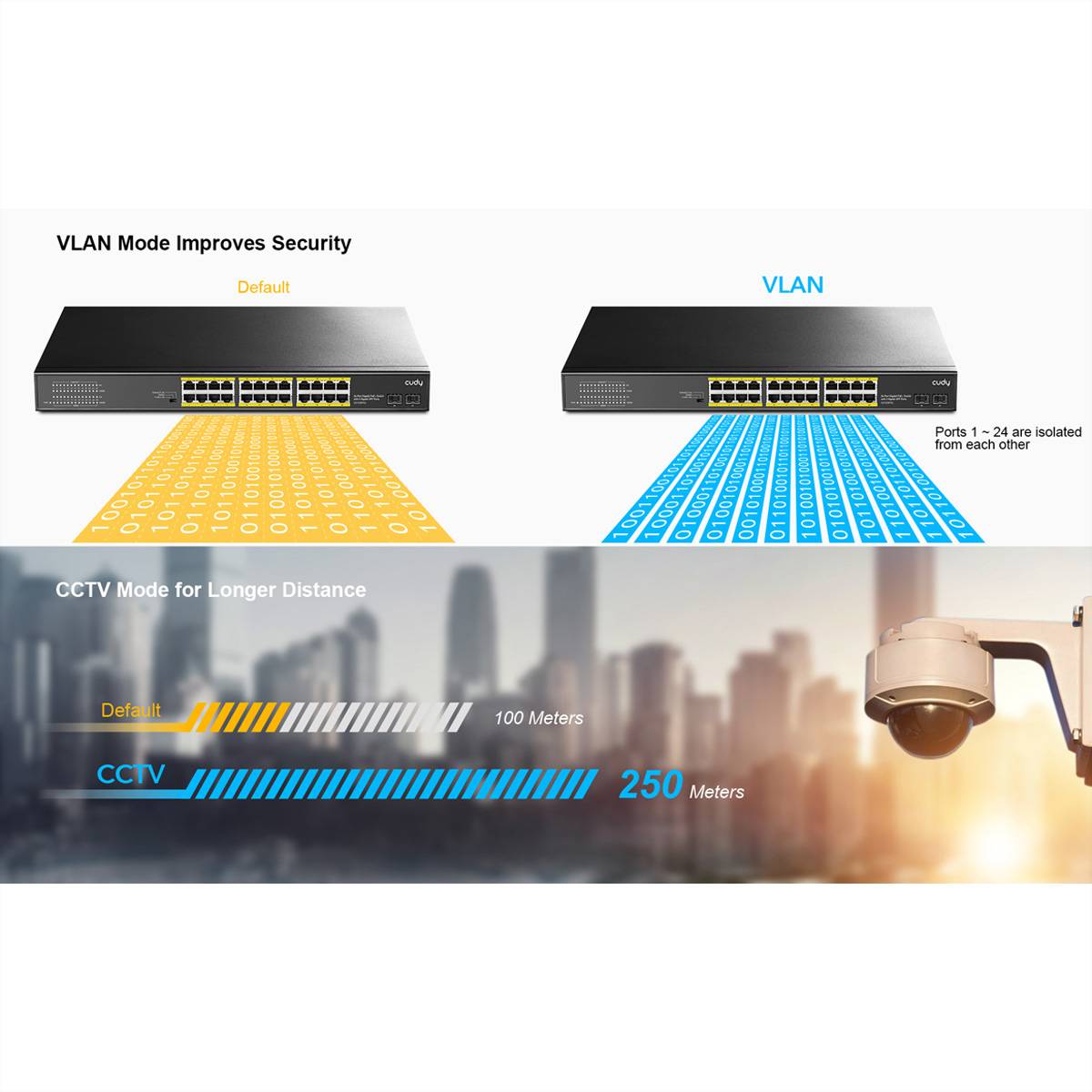

VLAN isolates downlink ports for improved security

Enable VLAN mode to prevent client-side hacking and prevent the flow of sensitive data. Downlink clients can then only communicate with uplink devices.

Extension for 250 m transmission

For long-distance networking, enable Extend mode to connect clients up to 250 feet away by limiting the port speed to 10 Mbps.

Excellent processing quality for stable operation

Develop robust systems with outstanding EMC

Improves reliability and reduces downtime due to overvoltages and electrostatic discharge.

ESD: Contact 6 kV; air 8 kV
Overvoltage protection: Power supply DM 2 kV, CM 4 kV; RJ45 CM 4 kV

Shielded connections. Robust metal casing.

Ensures a stable operation with Ethernet connectors shielded with nickel-plated copper alloy and robust SPCC metal enclosures
